2005 Suzuki DR-Z250 Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2005 Suzuki DR-Z250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

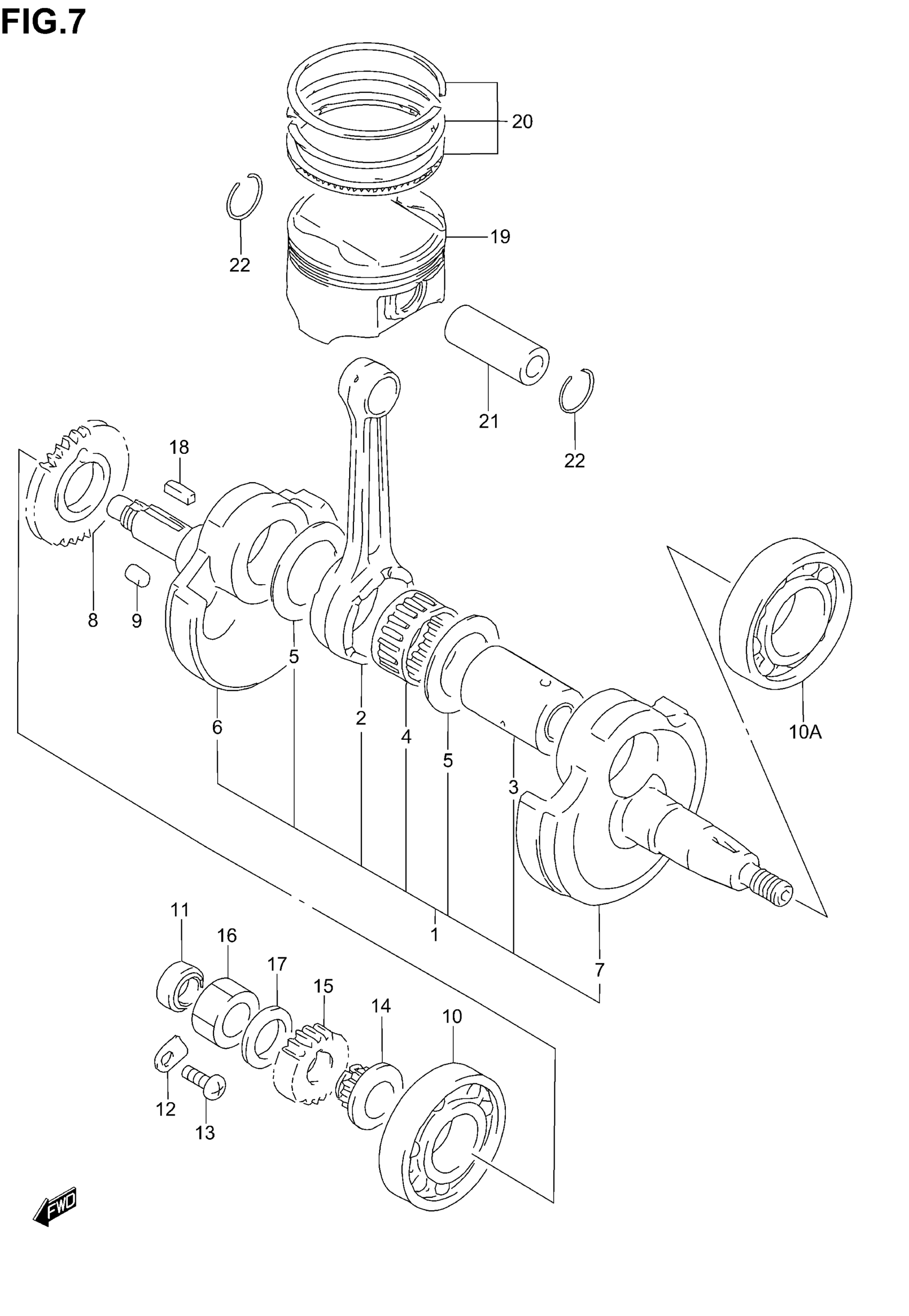

2005 Suzuki DR-Z250 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSY | Includes Item(s) 2 - 7

12200-13E01

1
Out of stock

2

CONNECTING ROD

12161-13E00

1
Out of stock

3

PIN, CRANK

12210-14D03

1
Out of stock

4

BEARING (34X43X20)

09263-34007

1
Out of stock

5

WASHER (34X52X1)

09160-34003

2
Out of stock

6

CRANKSHAFT, RH

12221-13E00

1
Out of stock

7

CRANKSHAFT, LH | MODEL K1/K2/K3

12261-13E00-0B0

1
Out of stock

7

CRANKSHAFT, LH | MODEL K4/K5

12261-13E00-0A0

1
Out of stock

8

GEAR, CRANK BALANCER DRIVE (NT:34)

12661-13E00

1
Out of stock

9

PIN

09261-08006

1
Out of stock

10

BEARING (28X68X18)

09262-28014

1
Out of stock

10A

BEARING (28X68X18)

09262-28031-0B0

1
Out of stock

11

OIL SEAL (14X24X6)

09282-14003

1
Out of stock

12

RETAINER, BEARING

24742-18A00

1
Out of stock

13

SCREW This part replaces 02112-06123.

02112-0612A

1
Out of stock

14

SPROCKET, CAM CHAIN DRIVE

12731-13E00

1
Out of stock

15

GEAR, PRIMARY DRIVE (NT:21)

21111-13E01

1
Out of stock

16

NUT

09140-18004

1
Out of stock

17

LOCK WASHER (ID:18.3) This part replaces 09164-18007.

09164-18001

1
Out of stock

18

KEY

09421-05009

1
Out of stock

19

PISTON

12111-13E00-0F0

1
Out of stock

20

RING SET, PISTON

12140-13E00

1
Out of stock

21

PIN, PISTON

12151-17C00

1
Out of stock

22

RING,SNAP

09381-19001

2
Out of stock
