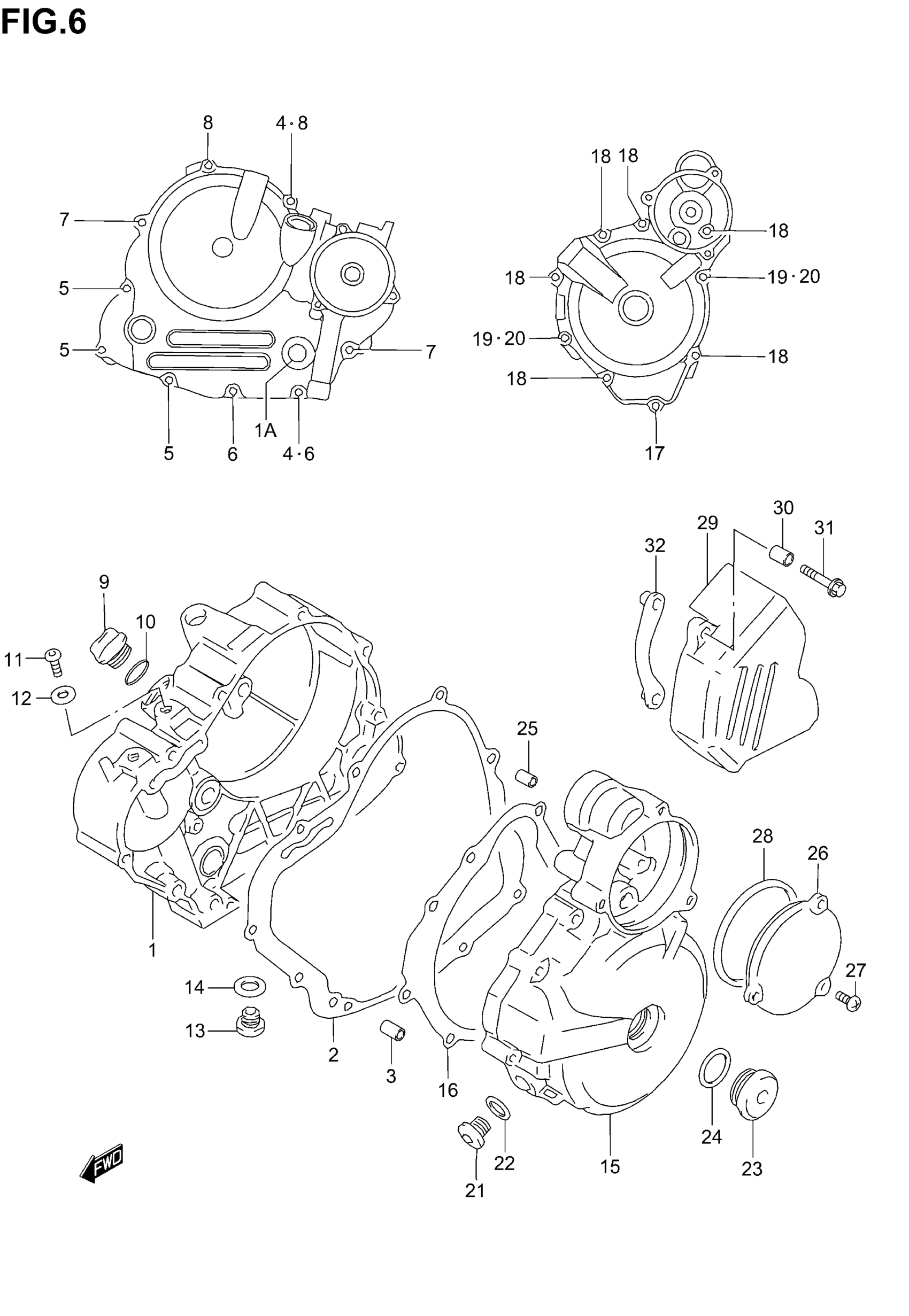

Find the part on the Crankcase Cover diagram for your 2005 Suzuki DR-Z250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Suzuki DR-Z250 Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH | Includes Item(s) 1A

11340-13E00

1
Out of stock

1A

.LENS, OIL LEVEL CHECK

11971-45010

1
Out of stock

2

GASKET, CLUTCH COVER

11482-13E00

1
Out of stock

3

PIN

04211-09149

2
Out of stock

4

GASKET (5.8X13X1.2)

09168-06023

2
Out of stock

5

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

3
Out of stock

6

BOLT, WATER PUMP This part replaces 01547-06353.

01547-0635B

2
Out of stock

7

BOLT This part replaces 01547-06403.

01547-0640B

2
Out of stock

8

BOLT This part replaces 01547-06603.

01547-0660B

2
Out of stock

9

PLUG (20X10)

09259-20019

1
Out of stock

10

O RING (D:3.1,ID:16.8)

09280-17003

1
Out of stock

11

PLUG, SHAFT | MODEL K1 This part replaces 09248-14005.

09248-14011

1
Out of stock

11

PLUG | MODEL K2/K3/K4/K5

09248-14011

1
Out of stock

12

GASKET (13.8X18.8X0.4)

09168-14002

1
Out of stock

13

PLUG

09248-10010

1
Out of stock

14

GASKET (10X14X3.6)

09168-10002

1
Out of stock

15

COVER, MAGNETO

11351-13E00

1
Out of stock

16

GASKET, MAGNETO COVER

11483-13E00

1
Out of stock

17

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

1
Out of stock

18

BOLT, WATER PUMP This part replaces 01547-06353.

01547-0635B

6
Out of stock

19

BOLT This part replaces 01547-06453.

01547-0645B

2
Out of stock

20

GASKET (5.8X13X1.2)

09168-06023

2
Out of stock

21

PLUG, SHAFT | MODEL K1 This part replaces 09248-14005.

09248-14011

1
Out of stock

21

PLUG | MODEL K2/K3/K4/K5

09248-14011

1
Out of stock

22

GASKET (13.8X18.8X0.4)

09168-14002

1
Out of stock

23

PLUG

09259-26011

1
Out of stock

24

O RING (D:3.1,ID:22.7)

09280-22008

1
Out of stock

25

PIN

04211-09149

1
Out of stock

26

COVER, STARTER IDLE GEAR

11352-13E00

1
Out of stock

27

SCREW This part replaces 02142-06123.

02142-0612A

3
Out of stock

28

O RING (D:2.6,ID:69.6)

09280-71004

1
Out of stock

29

COVER, ENGINE SPROCKET | Includes Item(s) 30

11360-13E00

1
Out of stock

30

SPACER

09180-06289

2
Out of stock

31

BOLT, WATER PUMP This part replaces 01547-06353.

01547-0635B

2
Out of stock

32

PLATE, FRONT CHAIN GUIDE

27640-13E10

1
Out of stock
