2005 Suzuki DR-Z250 Crank Balancer Diagram

← All diagrams

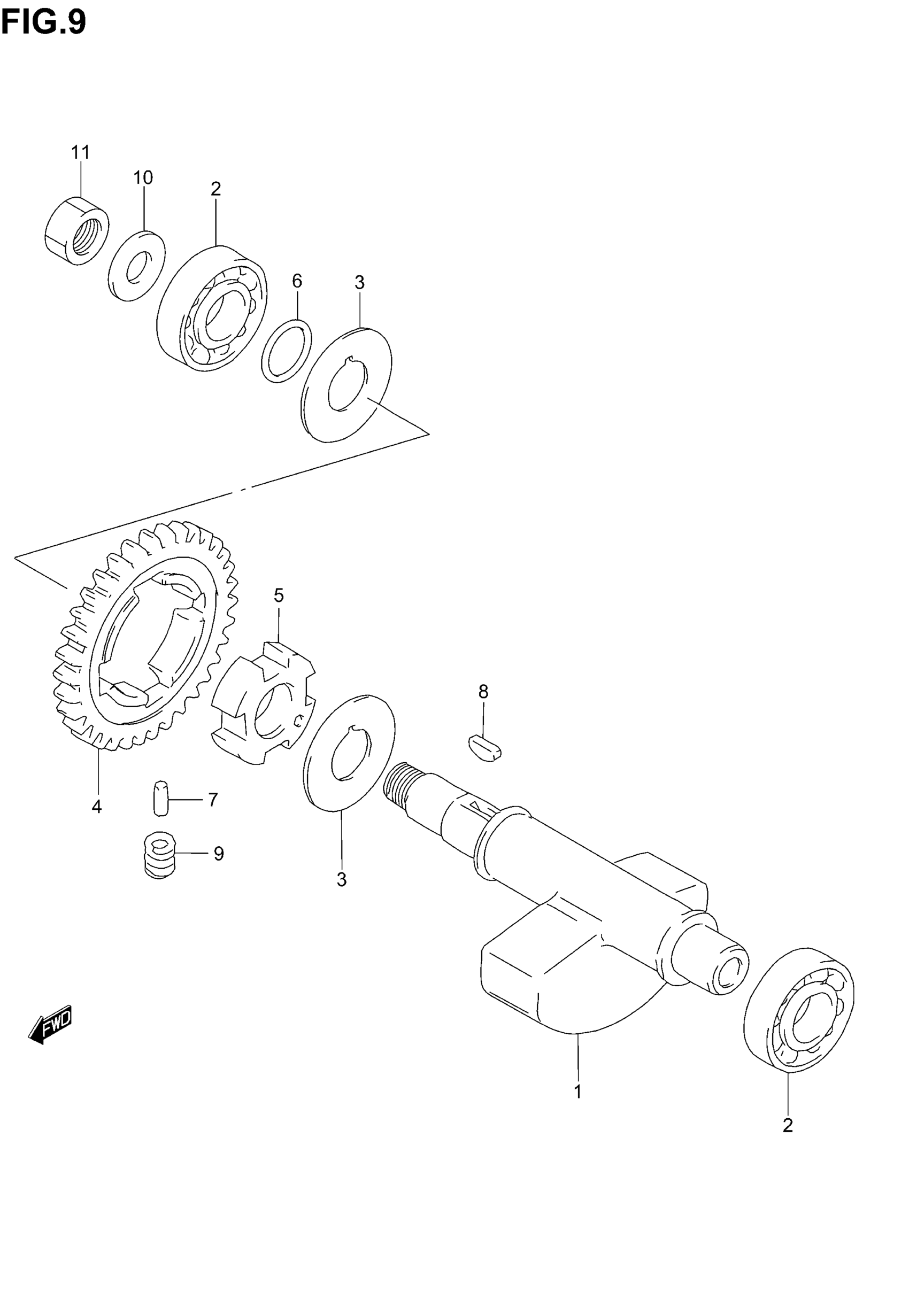

Find the part on the Crank Balancer diagram for your 2005 Suzuki DR-Z250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Suzuki DR-Z250 Crank Balancer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BALANCER, CRANK

12651-13E01

1
Out of stock

2

BEARING (15X42X13)

09262-15027

2
Out of stock

3

WASHER (16X38X2)

09166-16019

2
Out of stock

4

GEAR, CRANK BALANCER DRIVEN (NT:34)

12666-13E00

1
Out of stock

5

RACE, CRANK BALANCER DRIVEN GEAR INNER

12666-12E01

1
Out of stock

6

SHIM (16X22X0.5)

09181-16130

1
Out of stock

7

PIN (D:4.5,L:9.5)

09202-04017

2
Out of stock

8

KEY

08341-31039

1
Out of stock

9

SPRING

09440-09031

4
Out of stock

10

WASHER

08211-12255

1
Out of stock

11

NUT

09159-12048

1
Out of stock
