2007 Suzuki DR-Z125 Transmission Diagram

← All diagrams

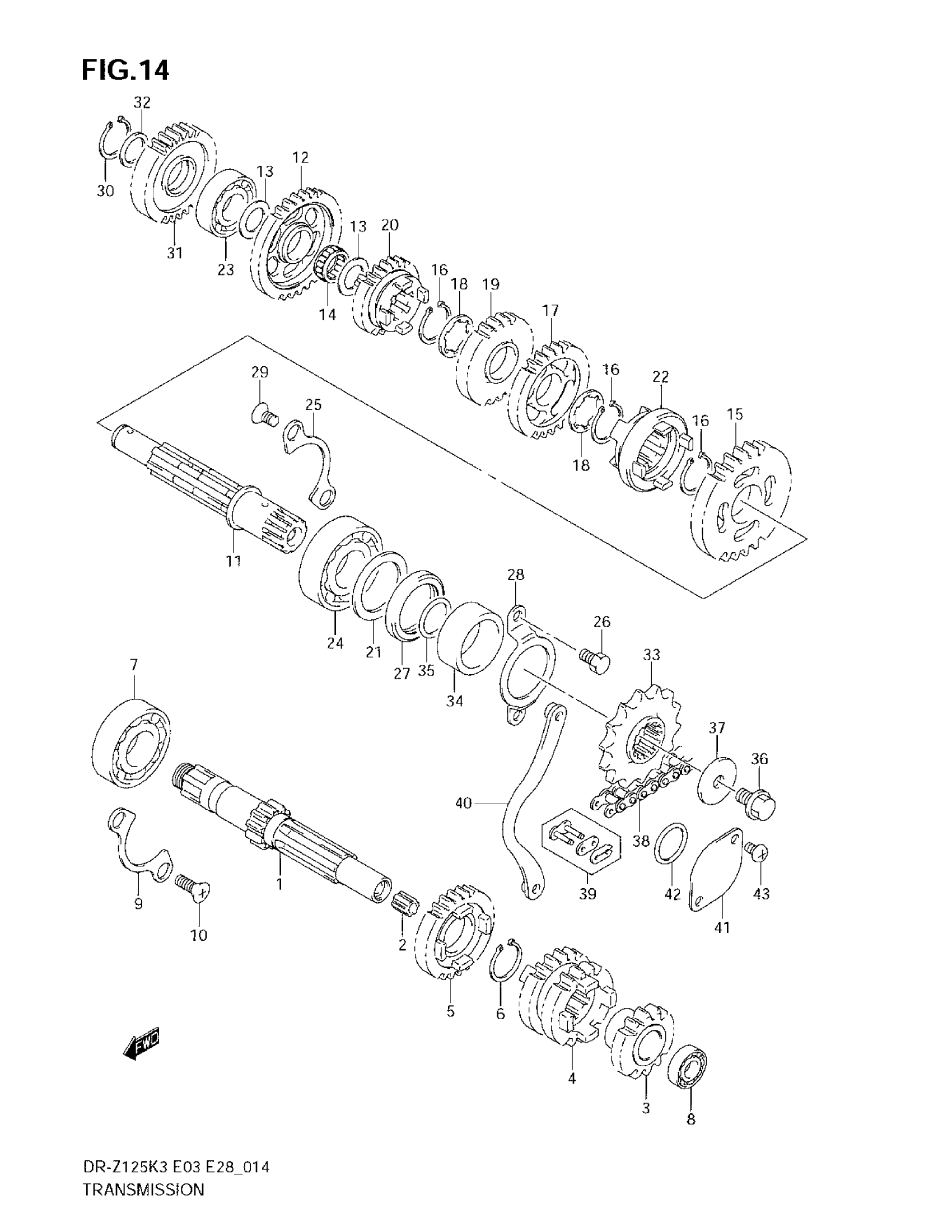

Find the part on the Transmission diagram for your 2007 Suzuki DR-Z125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Suzuki DR-Z125 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, COUNTER (NT:11)

24120-05810

1
Out of stock

2

BUSH

24125-38201

1
Out of stock

3

GEAR, 2ND DRIVE (NT:14)

24221-05301

1
Out of stock

4

GEAR, 3RD & 4TH DRIVEN

24231-05203

1
Out of stock

5

GEAR, 5TH DRIVE (NT:26)

24251-05212

1
Out of stock

6

CIRCLIP, 5TH DRIVE

09380-20009

1
Out of stock

7

BEARING (20X47X14)

09262-20069

1
Out of stock

8

BEARING

08123-60027

1
Out of stock

9

RETAINER, DRIVE SHAFT BEARING

24741-05200

1
Out of stock

10

SCREW (6X12)

09126-06011

2
Out of stock

11

SHAFT, DRIVE

24130-44A00

1
Out of stock

12

GEAR, 1ST DRIVEN (NT:33)

24311-05202

1
Out of stock

13

THRUST WASHER

08211-15251

2
Out of stock

14

BEARING (15X19X7.8)

09263-15023

1
Out of stock

15

GEAR, 2ND DRIVEN (NT:26)

24320-05202

1
Out of stock

16

CIRCLIP

09380-20009

3
Out of stock

17

GEAR, 3RD DRIVEN (NT:26)

24331-05203

1
Out of stock

18

LOCK WASHER

09167-20011

2
Out of stock

19

GEAR, 4TH DRIVEN (NT:23)

24341-05203

1
Out of stock

20

GEAR, 5TH DRIVEN (NT:24)

24351-05211

1
Out of stock

21

WASHER, OIL SEALING

24359-42A00

1
Out of stock

22

WHEEL, SLIDING DOG

24421-05300

1
Out of stock

23

BEARING (15X36X12)

09264-15001

1
Out of stock

24

BEARING (22X50X14)

09262-22018

1
Out of stock

25

RETAINER, DRIVE SHAFT BEARING

24741-05200

1
Out of stock

26

BOLT This part replaces 01500-06103.

01500-0610B

2
Out of stock

27

OIL SEAL (30X40X6)

09283-30053

1
Out of stock

28

RETAINER, DRIVE SHAFT OIL SEA

24751-42A10

1
Out of stock

29

SCREW (6X12)

09126-06011

2
Out of stock

30

CIRCLIP This part replaces 08331-31156.

08331-3115A

1
Out of stock

31

GEAR, KICK STARTER IDLE | NT:26

26260-05201

1
Out of stock

32

WASHER (15X20X1.0)

09181-15111

2
Out of stock

33

SPROCKET, ENGINE (NT:14)

27511-44A20

1
Out of stock

34

SPACER, ENGINE SPROCKET

27531-42A00

1
Out of stock

35

O RING (D:2.5,ID:21)

09280-21008

1
Out of stock

36

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

1
Out of stock

37

WASHER

08211-08283

1
Out of stock

38

CHAIN ASSY,DRIV | DR-Z125K3/K4/K5/K6/K7 L:134!122 This part replaces 27600-46911-134.

27600-46912-134

1
Out of stock

38

CHAIN ASSY,DRIV | DR-Z125LK3/K4/K5/K6/K7 L:134!130 This part replaces 27600-46911-134.

27600-46912-134

1
Out of stock

39

.JOINT SET, CHAIN | OPT This part replaces 27620-46911.

27620-46912

1
Out of stock

40

PLATE, FR CHAIN GUIDE

27640-08G00

1
Out of stock

41

CAP, NEUTRAL SW HOLE

11450-08G00

1
Out of stock

42

.O-RING (D:2.4,ID:21.8)

09280-22001

1
Out of stock

43

SCREW This part replaces 02112-05083.

02112-0508A

2
Out of stock
