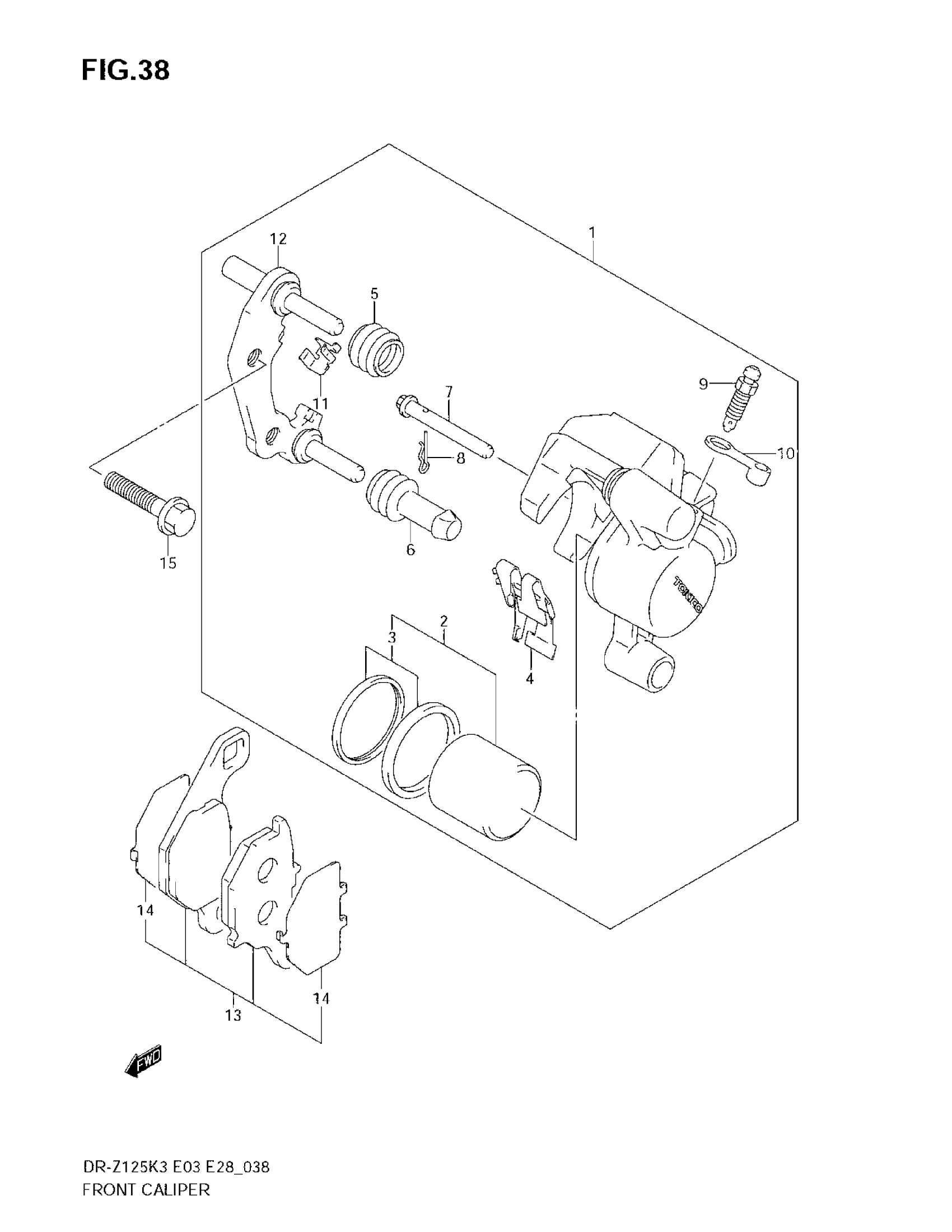

Suzuki DR-Z125 (2007) FRONT CALIPER (DR-Z125LK3/LK4/LK5/LK6/LK7) Diagram

#

Description

Price

1

CALIPER ASSY, FRONT LH | Includes Item(s) 2 - 12 This part replaces 59300-03B10-999.

59300-03B11-999

$251.62

2

PISTON SET This part replaces 59300-20811.

59301-20830

$40.48

3

..SEAL SET, PISTON This part replaces 59300-20821.

59300-35830

$19.78

4

.SPRING, PAD

59315-20E00

$16.77

5

.BOOT, AXLE

59312-36500

$4.78

6

.INSULATOR, AXLE

59313-36500

$5.48

7

.PIN, PAD

69141-44B02

$14.10

8

.CLIP, PAD PIN

69142-45000

$3.97

9

BLEEDER

59121-18410

$7.99

10

CAP, BLEEDER This part replaces 59122-02B40.

55156-66310

$4.73

11

.GUIDE, PAD

59116-20E00

$8.21

12

CARRIER, LH This part replaces 59350-20E00.

59350-03B00

$100.95

13

PAD & SHIM SET | Includes Item(s) 14

59301-20870

$54.38

14

.SHIM, PAD

59371-20E00

$17.08

15

BOLT (8X35) This part replaces 01550-08353.

01550-0835A

$2.80
