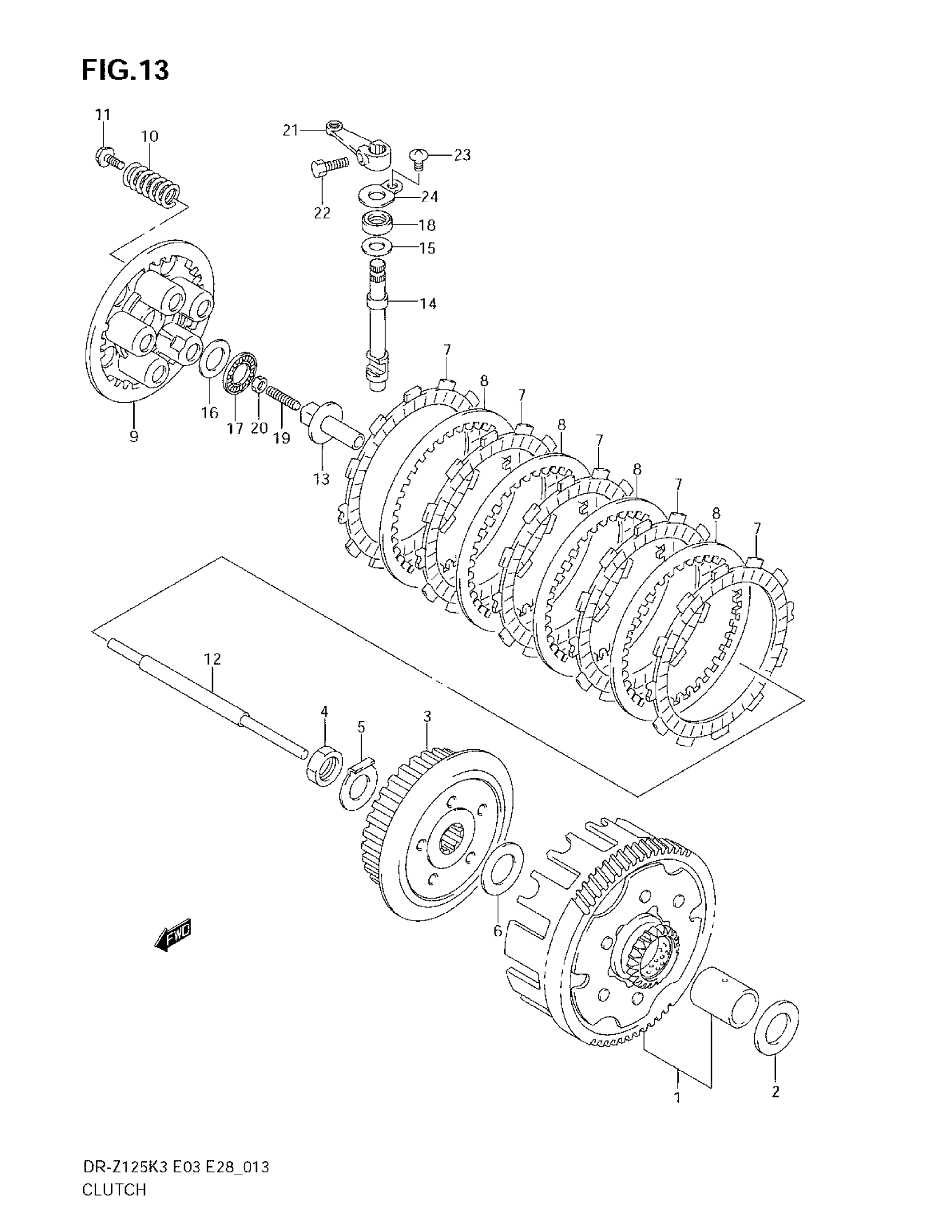

Find the part on the Clutch diagram for your 2007 Suzuki DR-Z125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Suzuki DR-Z125 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR ASSY, PRI DRIVEN (NT:59) This part replaces 21200-44812.

21200-44813

1
Out of stock

2

THRUST WASHER

08211-20353

1
Out of stock

3

HUB, CLUTCH SLEEVE (NT:30) This part replaces 21411-05200.

21411-05230

1
Out of stock

4

NUT This part replaces 09140-16001.

09140-16005

1
Out of stock

5

WASHER

09169-16003

1
Out of stock

6

THRUST WASHER

08211-20352

1
Out of stock

7

PLATE, CLUTCH DRIVE (T:3.0)

21441-25C01

5
Out of stock

8

PLATE, CLUTCH DRIVEN (T:1.6)

21451-19A00

4
Out of stock

9

DISC, CL PRESSURE | MODEL K3/K4/K5/K6 This part replaces 21462-14102.

21462-14130

1
Out of stock

9

DISC, CL PRESSURE | MODEL K7 This part replaces 21462-14103.

21462-14130

1
Out of stock

10

SPRING

09440-15021

5
Out of stock

11

BOLT (5X16)

09116-05020

5
Out of stock

12

ROD, CLUTCH PUSH | MODEL K3/K4/K5/K6 This part replaces 23110-05202.

23110-05203

1
Out of stock

12

ROD, CLUTCH PUSH | MODEL K7

23110-05203

1
Out of stock

13

PIECE, CLUTCH PUSH

23121-38201

1
Out of stock

14

CAMSHAFT, CLUTCH RELEASE

23122-05200

1
Out of stock

15

THRUST WASHER (10X20X1.0)

09181-10195

1
Out of stock

16

WASHER (15.5X28X1.0)

09160-15045

1
Out of stock

17

BEARING (15X28X2)

09263-15003

1
Out of stock

18

OIL SEAL (10X20X6)

09282-10012

1
Out of stock

19

SCREW (6X25)

09134-06010

1
Out of stock

20

NUT (6X3.6)

09140-06023

1
Out of stock

21

ARM, CLUTCH RELEASE

23271-46010

1
Out of stock

22

BOLT This part replaces 01500-06163.

01500-0616A

1
Out of stock

23

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06103.

02142-0610A

1
Out of stock

24

RETAINER, CL RLSE OIL SEAL

23117-05200

1
Out of stock
