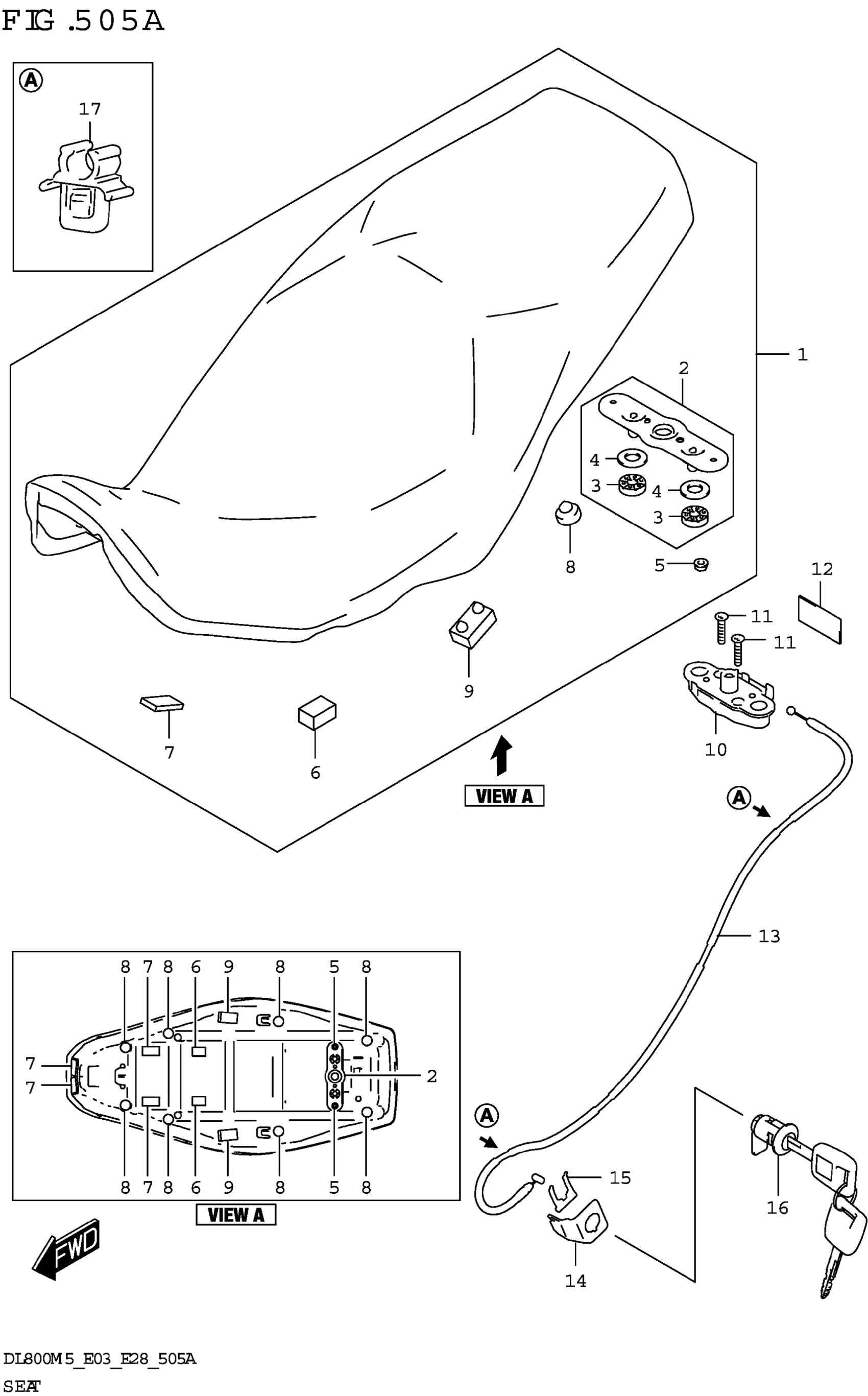

Suzuki DL800RQM5 (2025) SEAT Diagram

#

Description
Price

1

SEAT ASSY (BLACK)

45100-25LA0-CKA

$364.83

2

.STRIKER,SEAT LOCK

45290-28D20

Unavailable

3

..CUSHION,SEAT LOCK (10X22X6)

45213-13601

$2.80

4

..WASHER

08322-0110A

$1.83

5

NUT (6X12)

08316-1006A

$2.19

6

.CUSHION (20X30X15)

17798-29E30

$6.12

7

PROTECTOR (50X50X5) This part replaces 33652-21G10.

33652-20C00

$2.80

8

CUSHION This part replaces 45148-16700.

09321-10002

$2.02

9

.CUSHION

09321-08006

$2.80

10

BRACKET,SEAT SUPPORT

45220-47H00

$155.43

11

SCREW (6X30)

09126-06019

$2.28

12

CUSHION

44885-38A00

$5.18

13

CABLE,SEAT LOCK

45280-25LA0

$13.57

14

GUIDE,SEAT LOCK CABLE

45288-14F00

$4.91

15

PLATE,SEAT LOCK ASSY

45289-11F00

$5.67

16

LOCK SET,SEAT

95700-14810

$98.21

17

CLAMP

09403-05319

$2.20
