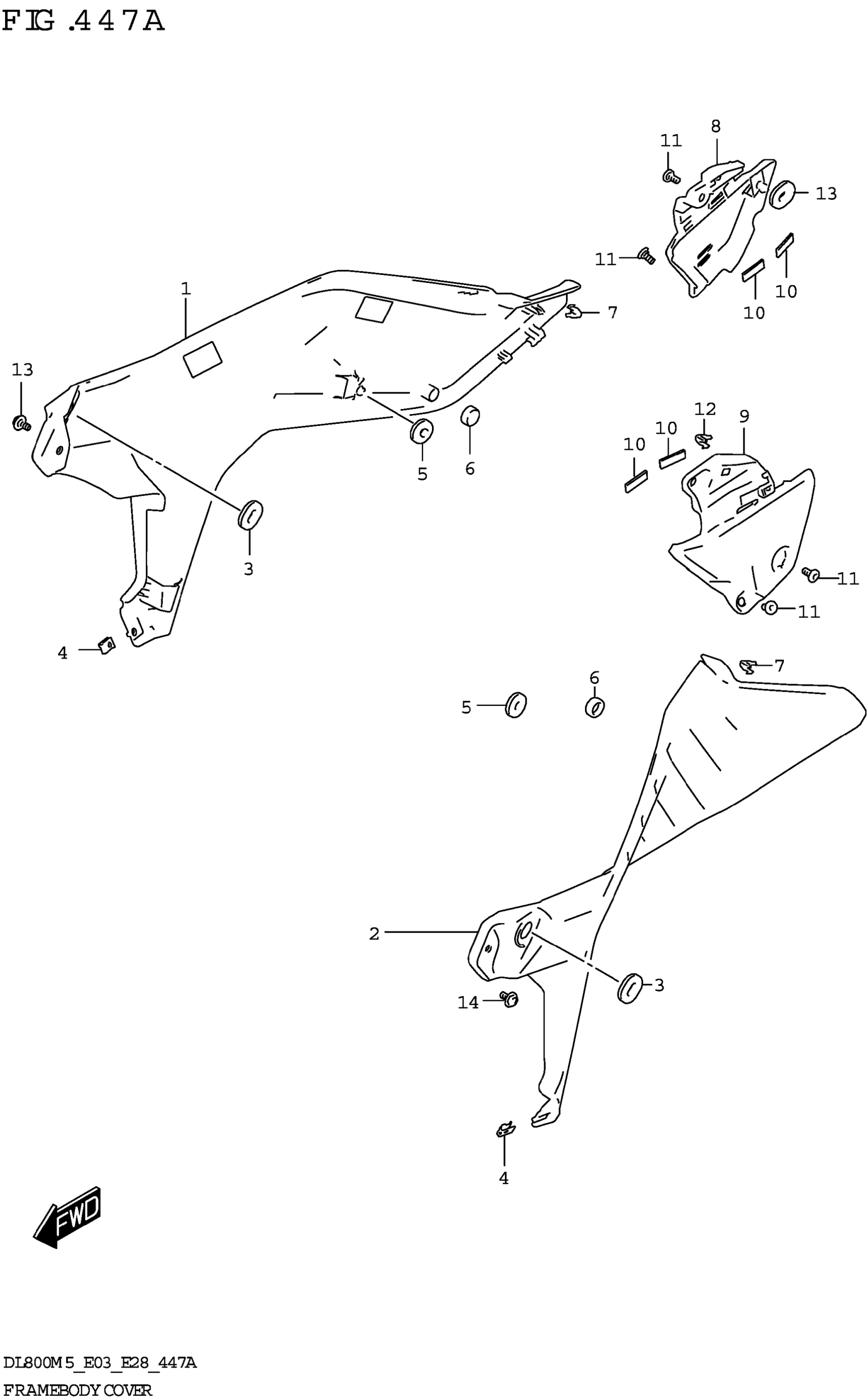

Suzuki DL800RQM5 (2025) FRAME BODY COVER Diagram

#

Description
Price

1

COVER,FRAME,R (BLACK)

47110-25LA0-019

$77.17

2

COVER,FRAME,L (BLACK)

47210-25LA0-019

$78.03

3

CUSHION

94478-14J00

$5.42

4

NUT (M5)

09148-05052

$3.04

5

CUSHION (8x26x7)

09320-08018

$2.80

6

CUSHION (14X20X9)

09329-14003

$2.74

7

CLIP (10.5X14.3)

09409-08326

$2.45

8

COVER,FRAME LOWER,R

47121-25LA0

$18.22

9

COVER,FRAME LOWER,L

47221-25LA0

$18.22

10

CUSHION (10X30X2)

94429-21E00

$3.47

11

SCREW

09139-06245

$2.37

12

CLIP (10.5X14.3)

09409-08326

$2.45

13

CUSHION

09320-08029

$2.51

14

BOLT (6X12)

09111-06106

$2.28
