Description

Price

1

COWLING,BODY

94411-25LA0

$176.53

2-1

COWLING,BODY LOWER (BLACK) | BODY COLOR:QEB,YYG

94413-25LB0-019

$44.00

2-2

COWLING,BODY LOWER (YELLOW) | BODY COLOR:YKV

94413-25LB0-YU1

Unavailable

3

COWLING,BODY INNER

94414-25LA0

$14.38

4

CUSHION,COWLING BODY

94416-25LA0

$2.10

5

BRACE,COWLING

94510-25LA0

$254.25

6

PANEL,METER

94631-25LA0

$84.05

7

SCREW (5X18)

09139-05094

$3.95

8

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

9

CLIP

09409-08012

$2.54

10

CLIP (10.5X14.3)

09409-08326

$2.45

11

SCREW

03541-0512A

$1.37

12

BOLT

01550-0840A

$2.80

13

NUT

08313-2008A

$2.50

14

NUT (M5)

09148-05045

$2.51

15

EMBLEM,S

68281-48K00

$5.53

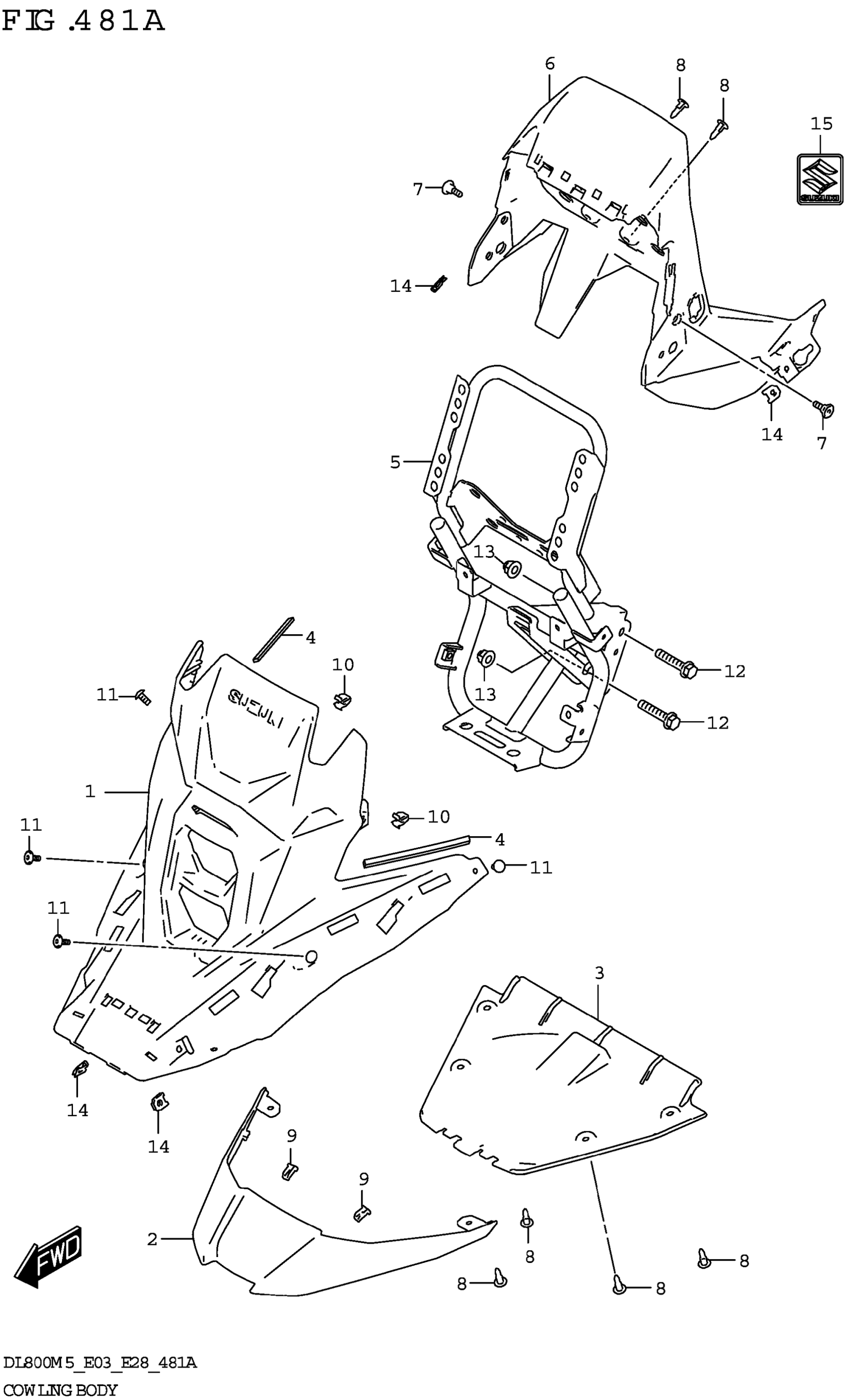

Suzuki DL800RQM5 (2025) COWLING BODY Diagram
