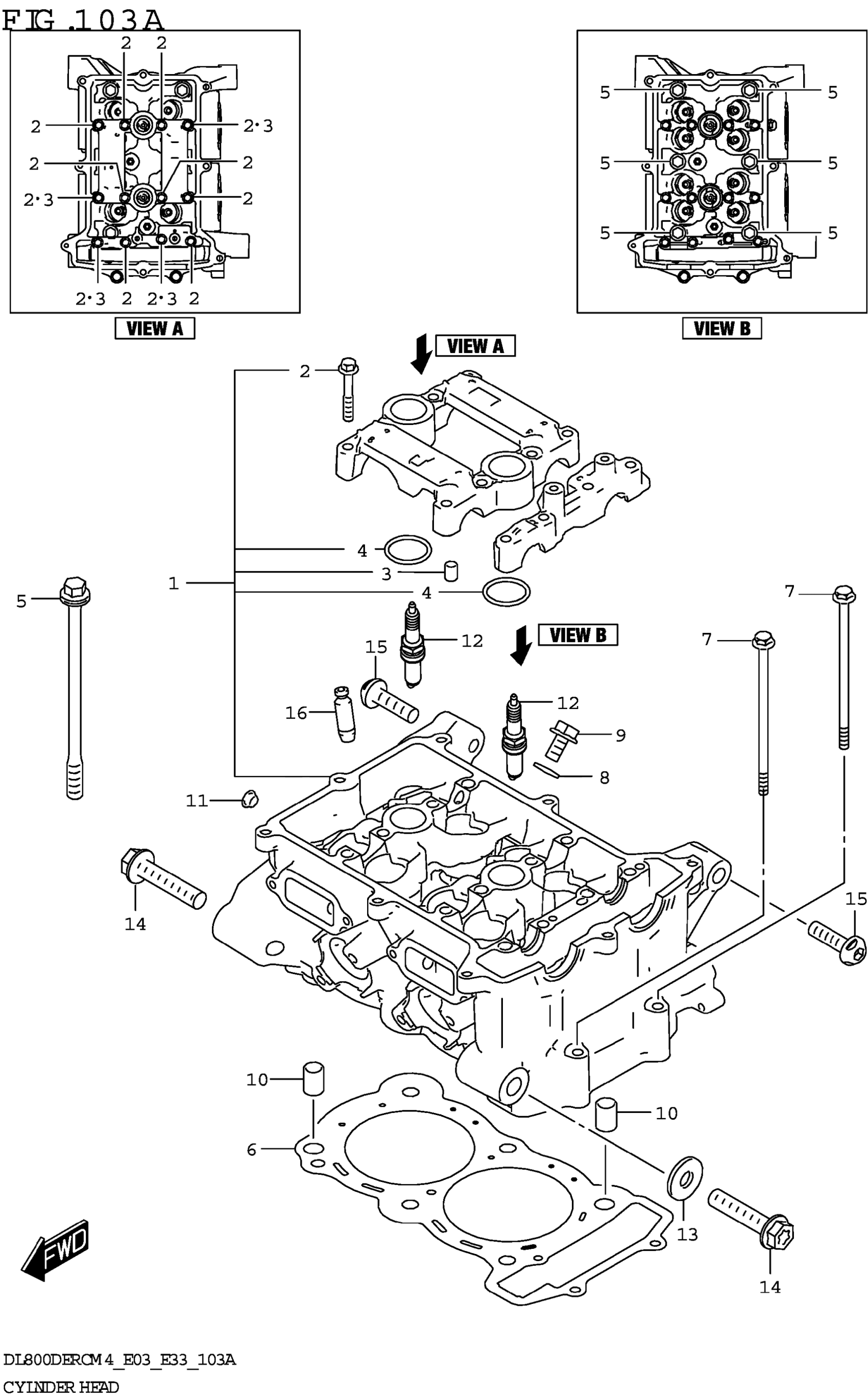

Find the part on the Cylinder Head diagram for your 2024 Suzuki DL800DERCM4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Suzuki DL800DERCM4 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY,CYLINDER

11100-25L00

1
Out of stock

2

.BOLT (6X40)

09103-06266

12
Out of stock

3

.PIN (8X11)

09206-08001

4
Out of stock

4

.O-RING (ID:25.7,DD:2.4)

09280-26007

2
Out of stock

5

BOLT,CYL HEAD (L:160)

11117-44H00

6
Out of stock

6

.GASKET,CYLINDER HEAD

11141-25L10

1
Out of stock

7

BOLT (6X120)

09103-06148

2
Out of stock

8

GASKET (5.8X13X1.2)

09168-06023

1
Out of stock

9

BOLT

01550-0612A

1
Out of stock

10

PIN (10.4X13X18)

04211-13189

2
Out of stock

11

CAP (OD:12)

09250-08012

1
Out of stock

12

PLUG,SPARK (LMAR8BI-9)

09482-00635

2
Out of stock

13

WASHER,ENG MTG FR,L

11611-25L00

1
Out of stock

14

BOLT (L:55)

09103-12145

2
Out of stock

15

BOLT (L:35)

09106-10102

2
Out of stock

16

GUIDE,VALVE OS 0.3 | OPT

11115-25L70

8
Out of stock
