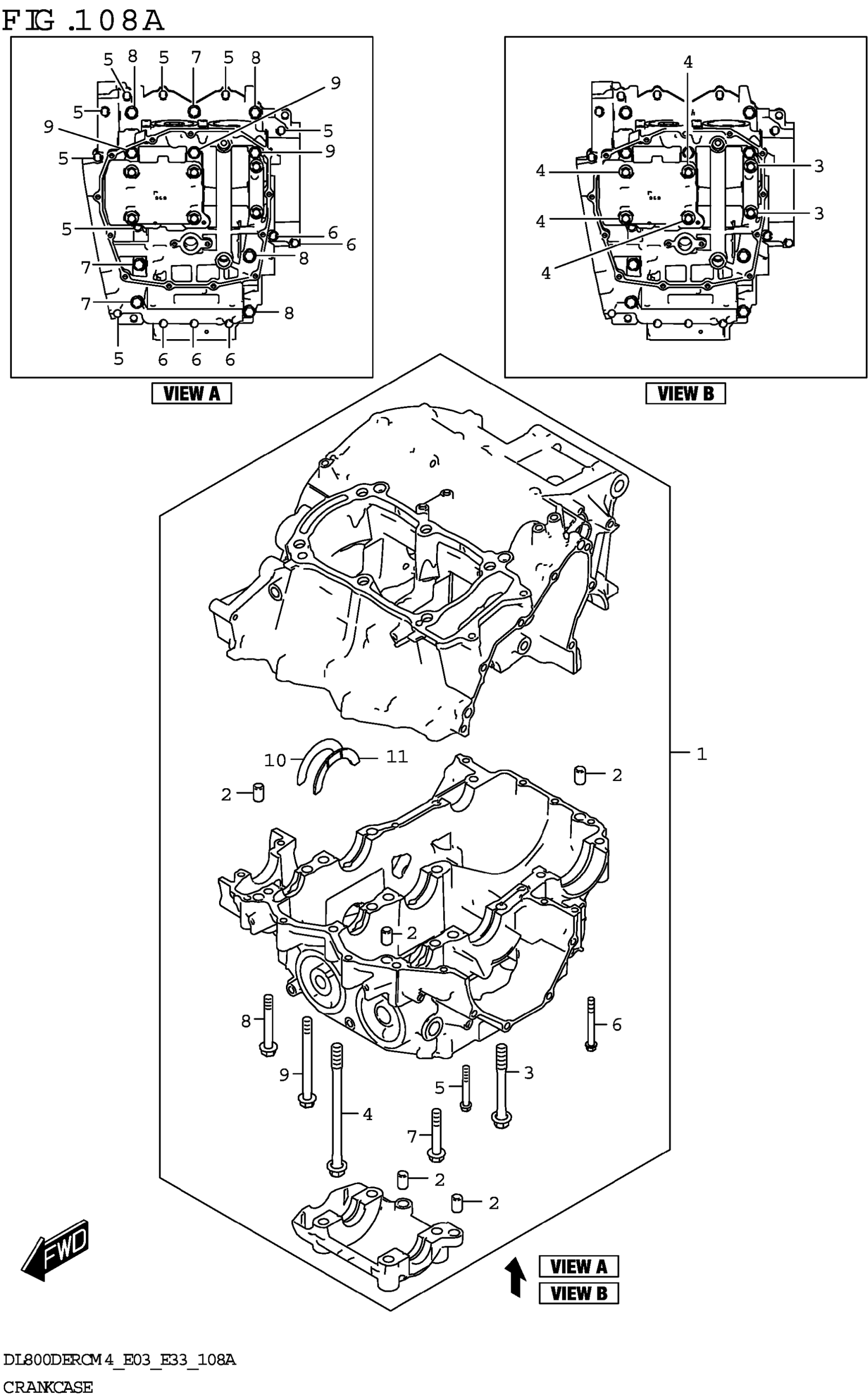

Suzuki DL800DERCM4 (2024) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11300-25820

$972.90

2

PIN,CRANKCASE

11319-33E50

$5.01

3

.BOLT,CRANKCASE

11322-25L00

$8.38

4

.BOLT,CRANKCASE

11323-25L00

$10.55

5

BOLT

01547-0645A

$2.43

6

.BOLT

01547-0655A

$2.43

7

.BOLT

01550-0850A

$3.98

8

.BOLT

01550-0860A

$1.37

9

BOLT

01550-0895A

$5.00

10

.BEARING,CRANK THRUST (GREEN) | RH

12228-24F00-0D0

$10.18

11-1

.BEARING,CRANK THRUST,L (RED)

12228-24F00-0A0

$14.45

11-2

.BEARING,CRANK THRUST,L (BLAC | )

12228-24F00-0B0

$10.18

11-3

.BEARING,CRANK THRUST,L (BLUE

12228-24F00-0C0

$14.35

11-4

.BEARING,CRANK THRUST (GREEN) | LH

12228-24F00-0D0

$10.18

11-5

.BEARING,CRANK THRUST,L (YELL | W)

12228-24F00-0E0

$14.98

11-6

.BEARING,CRANK THRUST,L (WHIT | )

12228-24F00-0F0

$14.98
