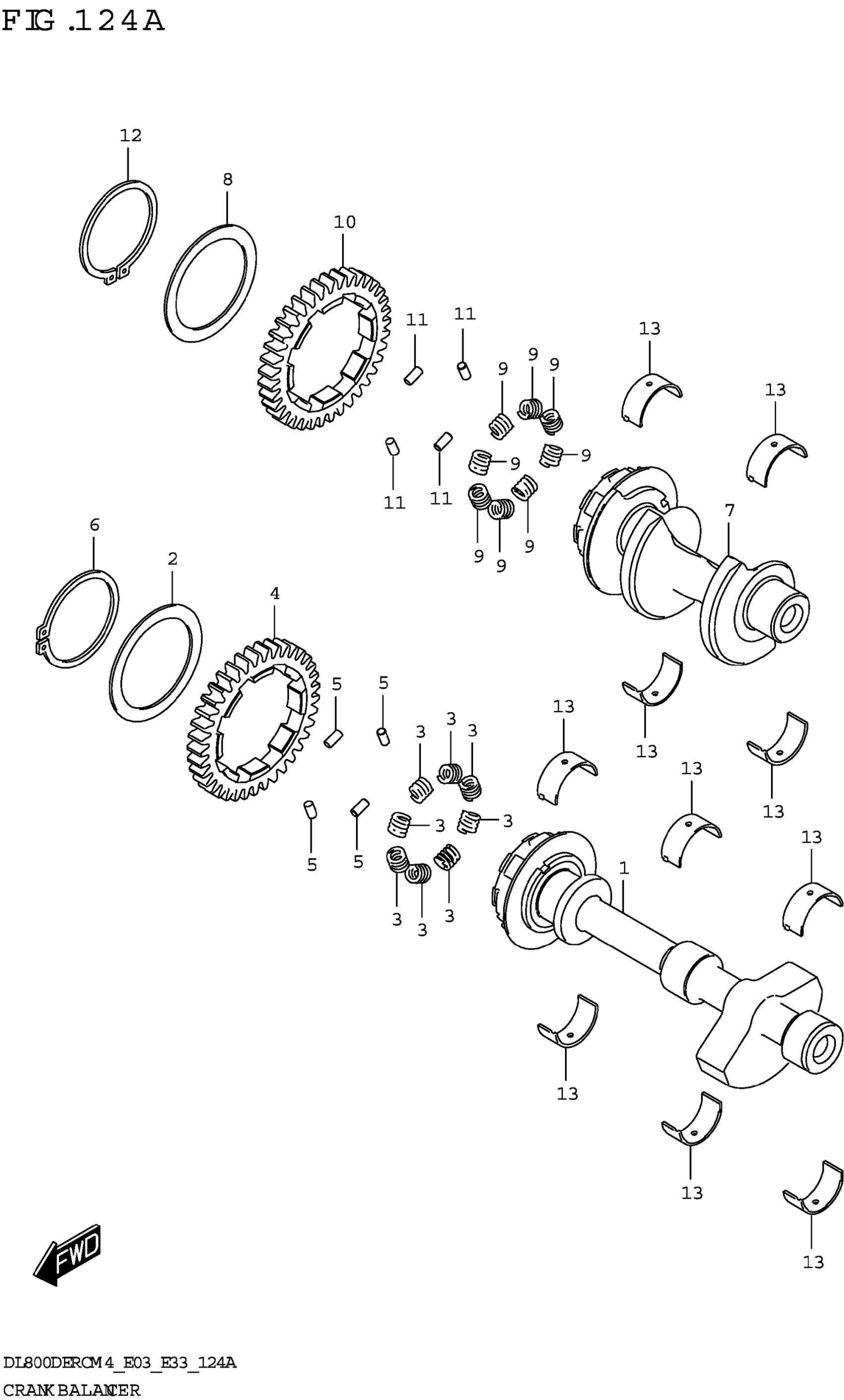

Find the part on the Crank Balancer diagram for your 2024 Suzuki DL800DERCM4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Suzuki DL800DERCM4 Crank Balancer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BALANCER,CRANK NO.1

12601-25L10

1
Out of stock

2

WASHER,CRK BAL DRIVEN GR NO.2

12662-25L10

1
Out of stock

3

SPRING,CRANK BAL DRIVEN GEAR

12663-25L00

8
Out of stock

4

GEAR,CRANK BALANCER DRIVEN (N | :37)

12666-25L00

1
Out of stock

5

PIN (4.5X9.5)

09202-04017

4
Out of stock

6

CIRCLIP

08331-31529

1
Out of stock

7

BALANCER,CRANK NO.2

12602-25L10

1
Out of stock

8

WASHER,CRK BAL DRIVEN GR NO.2

12662-25L10

1
Out of stock

9

SPRING,CRANK BAL DRIVEN GEAR

12663-25L00

8
Out of stock

10

GEAR,CRANK BALANCER DRIVEN (N | :37)

12666-25L00

1
Out of stock

11

PIN (4.5X9.5)

09202-04017

4
Out of stock

12

CIRCLIP

08331-31529

1
Out of stock

13-1

BEARING,CRANK BALANCER

12229-25L10-0A0

10
Out of stock

13-2

BEARING,CRANK BALANCER

12229-25L10-0B0

10
Out of stock

13-3

BEARING,CRANK BALANCER

12229-25L10-0C0

10
Out of stock

13-4

BEARING,CRANK BALANCER

12229-25L10-0D0

10
Out of stock
