2024 Suzuki DL800DERCM4 Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2024 Suzuki DL800DERCM4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

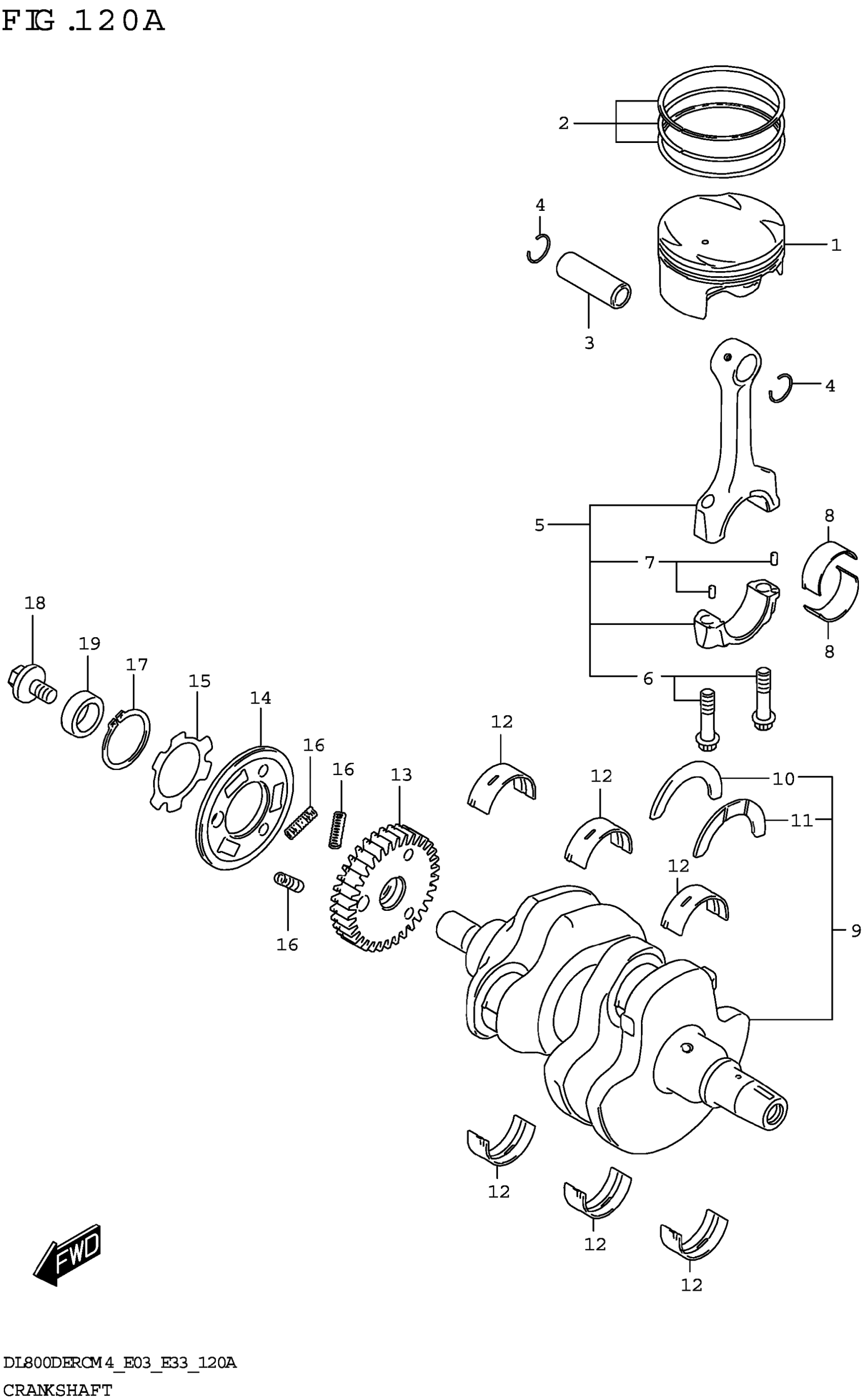

2024 Suzuki DL800DERCM4 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PISTON

12111-25L00-0F0

2
Out of stock

2

RING SET,PISTON

12140-25L00

2
Out of stock

3

PIN,PISTON

12151-07D10

2
Out of stock

4

CIRCLIP (OD:20.5)

09381-18002

4
Out of stock

5

CONNROD ASSY

12160-25L00

2
Out of stock

6

.BOLT,CONNECTING ROD

12163-24F10

4
Out of stock

7

PIN (4X13.8)

04221-04089

4
Out of stock

8-1

BEARING,CRANK PIN (GREEN)

12164-46E10-0A0

4
Out of stock

8-2

BEARING,CRANK PIN (BLACK)

12164-46E10-0B0

4
Out of stock

8-3

BEARING,CRANK PIN (BROWN)

12164-46E10-0C0

4
Out of stock

8-4

BEARING,CRANK PIN (YELLOW)

12164-46E10-0D0

4
Out of stock

9

CRANKSHAFT SET

12000-25810

1
Out of stock

10

.BEARING,CRANK THRUST (GREEN)

12228-24F00-0D0

1
Out of stock

11-1

.BEARING,CRANK THRUST,L (RED)

12228-24F00-0A0

1
Out of stock

11-2

.BEARING,CRANK THRUST,L (BLAC

12228-24F00-0B0

1
Out of stock

11-3

.BEARING,CRANK THRUST,L (BLUE

12228-24F00-0C0

1
Out of stock

11-4

.BEARING,CRANK THRUST (GREEN)

12228-24F00-0D0

1
Out of stock

11-5

.BEARING,CRANK THRUST,L (YELL | )

12228-24F00-0E0

1
Out of stock

11-6

.BEARING,CRANK THRUST,L (WHIT

12228-24F00-0F0

1
Out of stock

12-1

BEARING,CRANKSHAFT (GREEN)

12229-25L00-0A0

6
Out of stock

12-2

BEARING,CRANKSHAFT (BLACK)

12229-25L00-0B0

6
Out of stock

12-3

BEARING,CRANKSHAFT (BROWN)

12229-25L00-0C0

6
Out of stock

12-4

BEARING,CRANKSHAFT (YELLOW)

12229-25L00-0D0

6
Out of stock

12-5

BEARING,CRANKSHAFT (BLUE)

12229-25L00-0E0

6
Out of stock

13

GEAR,PRIMARY DRIVE

21111-25L00

1
Out of stock

14

GEAR,PRIMARY DRIVE SCISSORS

21112-25L00

1
Out of stock

15

WASHER,PRI DRIVE SCISSORS WAV

21114-25L00

1
Out of stock

16

SPRING

09440-07081

3
Out of stock

17

CIRCLIP

08331-31409

1

$3.90

In stock

18

BOLT (10X19)

09103-10338

1
Out of stock

19

SPACER,PRIMARY DRIVE GEAR

21121-25L00

1
Out of stock
