2024 Suzuki DL800DERCM4 2ND AIR Diagram

← All diagrams

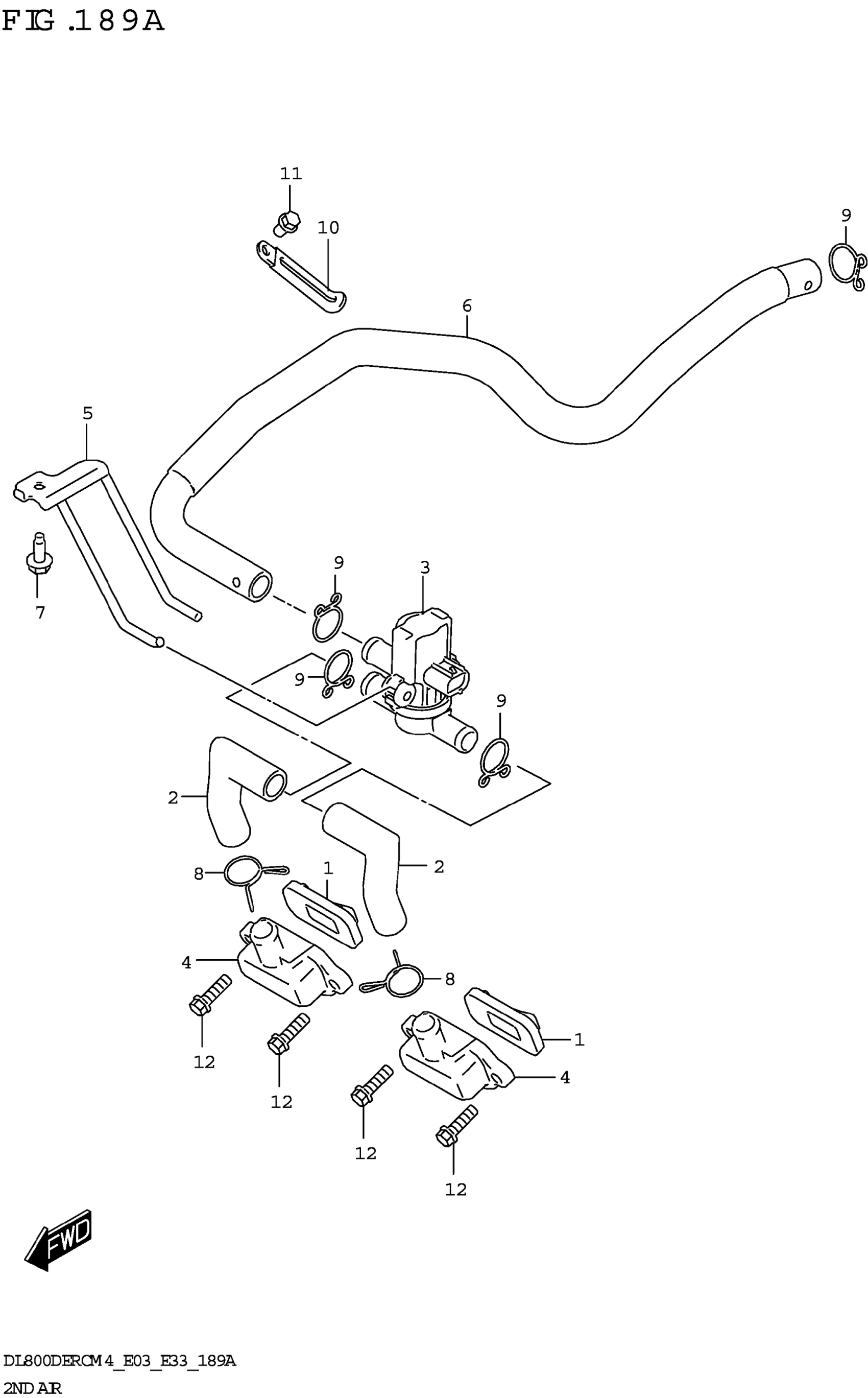

Find the part on the 2ND AIR diagram for your 2024 Suzuki DL800DERCM4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Suzuki DL800DERCM4 2ND AIR Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

VALVE ASSY,2ND AIR REED

18450-28K00

2
Out of stock

2

HOSE,2ND AIR VALVE

18461-25L00

2
Out of stock

3

VALVE ASSY,AIR CUT

18510-29G31

1
Out of stock

4

COVER,2ND AIR REED VALVE

18531-25L00

2
Out of stock

5

BRACKET,2ND AIR VALVE

18610-25L00

1
Out of stock

6

HOSE,2ND AIR CLNR

18710-25L00

1
Out of stock

7

BOLT (6X16)

09135-06027

1
Out of stock

8

CLIP

09401-17201

2
Out of stock

9

CLIP

09401-18101

4
Out of stock

10

CLAMP (L:65)

09404-06043

1
Out of stock

11

BOLT

01547-0610A

1
Out of stock

12

BOLT

01547-0620A

4
Out of stock
