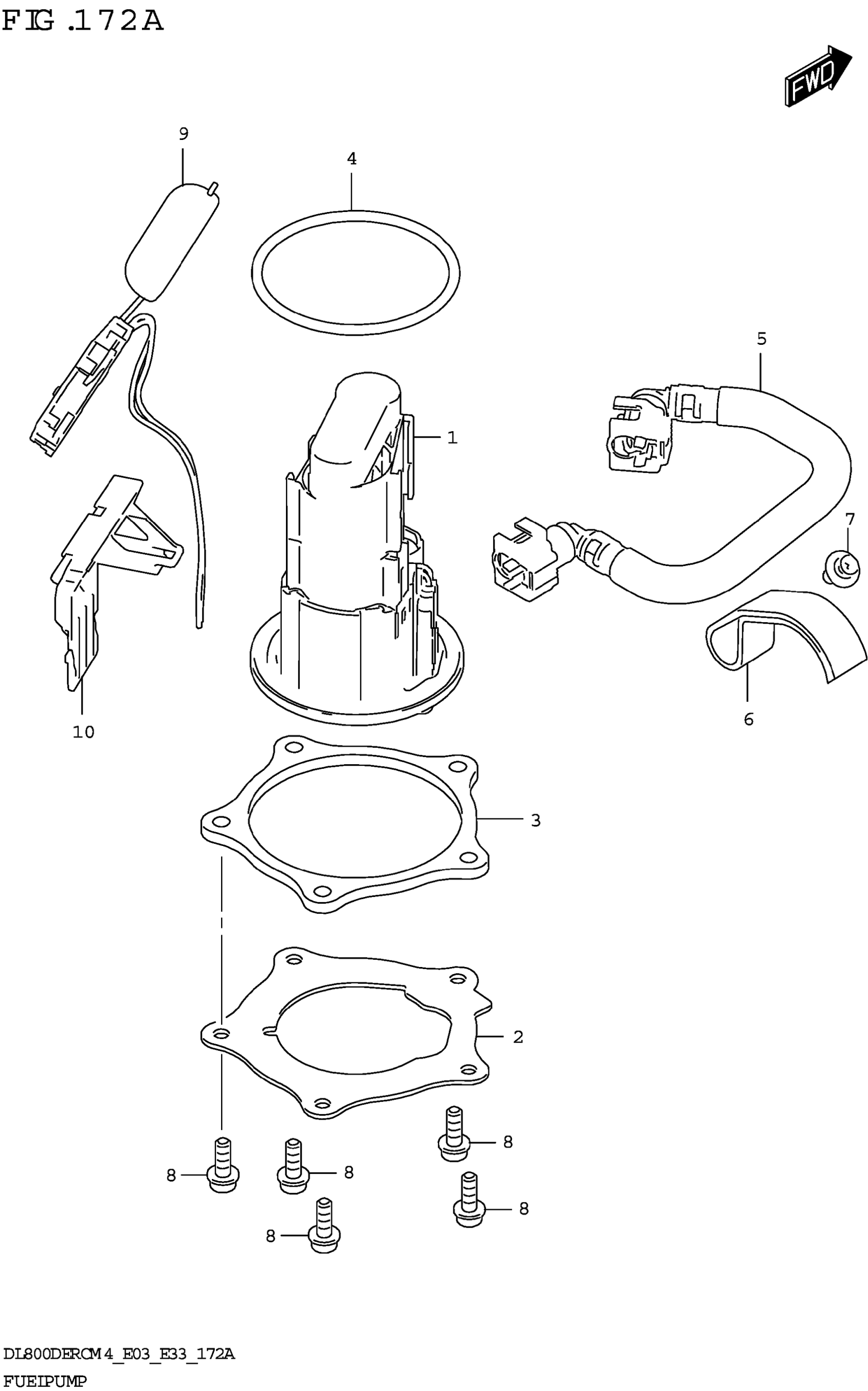

Suzuki DL800DERCM4 (2024) FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY,FUEL

15100-25L00

$420.90

2

PLATE,FUEL PUMP OUTER

15121-25L00

$11.66

3

PLATE,FUEL PUMP INNER

15122-17K00

$49.37

4

O-RING,FUEL PUMP

15201-07L00

$19.22

5

HOSE,FUEL

15810-25L00

$167.00

6

CLAMP,FUEL HOSE

15821-25L00

$4.47

7

CLIP

09409-06347

$2.20

8

BOLT

07120-0616A

$2.55

9

GAUGE ASSY,FUEL LEVEL SENDER

34810-25L00

$53.82

10

ATTACHMENT,FUEL LEVEL SENDER

34815-25L00

$3.72
