2024 Suzuki DL800DERCM4 AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 2024 Suzuki DL800DERCM4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

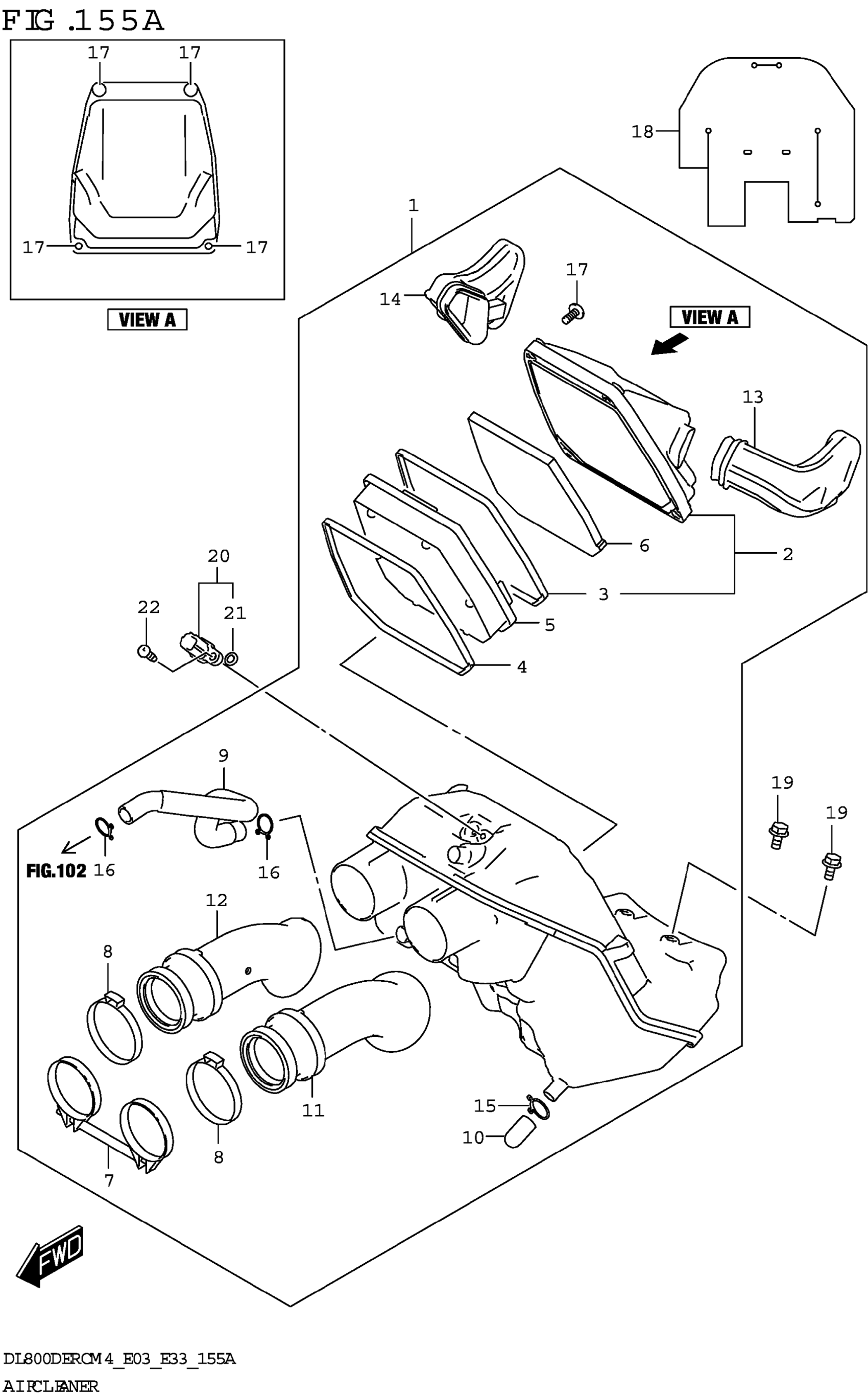

2024 Suzuki DL800DERCM4 AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY,AIR

13700-25L00

1
Out of stock

2

.CAP,AIR CLNR

13741-25L00

1
Out of stock

3

..GASKET FILTER

13746-25L00

1
Out of stock

4

..GASKET FILTER

13746-25L00

1
Out of stock

5

.FILTER AIR CLNR

13780-25L00

1
Out of stock

6

.PREFILTER

13786-25L00

1
Out of stock

7

.CLAMP,AIR CLNR

13826-25L00

1
Out of stock

8

.BAND,FRONT

13827-25L00

2
Out of stock

9

.TUBE,BREATHER

13850-25L00

1
Out of stock

10

.PLUG

13878-10G01

1
Out of stock

11

.TUBE,OUTLET L

13881-25L00

1
Out of stock

12

.TUBE,OUTLET R

13882-25L00

1
Out of stock

13

.TUBE,INLET L

13891-25L00

1
Out of stock

14

.TUBE,INLET R

13892-25L00

1
Out of stock

15

.CLIP (ID:14.5)

09401-14101

1
Out of stock

16

.CLIP (ID:16.5)

09401-16401

2
Out of stock

17

SCREW

02142-0520A

4
Out of stock

18

SHEET,AIR CLEANER INLET

13841-25L00

1
Out of stock

19

BOLT

01550-0612A

2
Out of stock

20

SENSOR,AIR TEMP

13650-41F10

1
Out of stock

21

O-RING

13655-41F10

1
Out of stock

22

SCREW

03511-0516A

1
Out of stock
