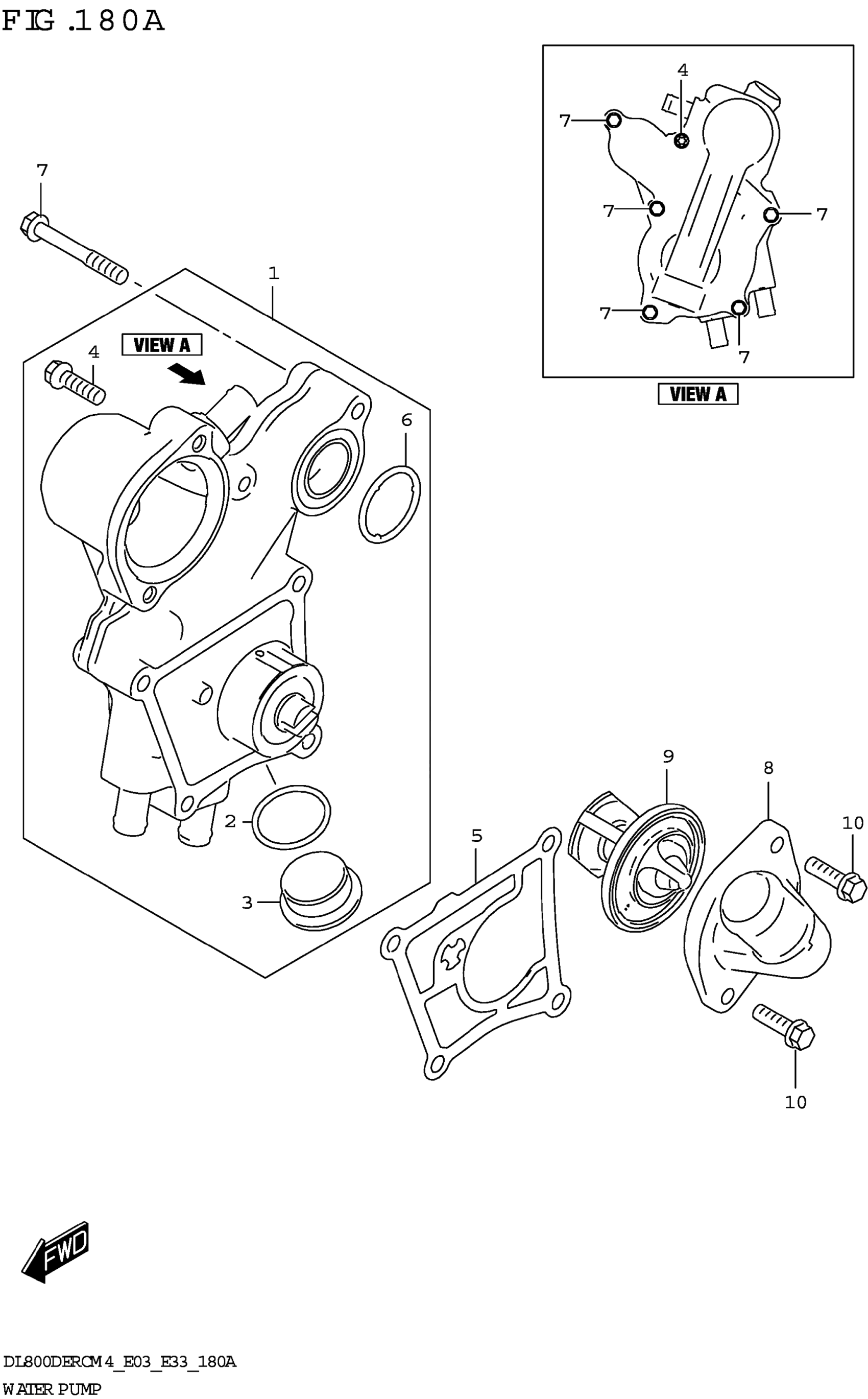

Suzuki DL800DERCM4 (2024) WATER PUMP Diagram

#

Description
Price

1

PUMP ASSY,WATER This part replaces 17400-25L00.

17400-25L01

$263.99

2

.GASKET,PLUG (26.5X30.5X1)

11217-85FA0

$4.38

3

.PLUG (26X11)

09248-26001

$19.47

4

BOLT (6X20)

09103-06527

$2.07

5

.GASKET,WATER PUMP

17421-25L00

$3.87

6

.O-RING,WATER PUMP

17431-25L00

$3.62

7

BOLT (L:45)

09103-06532

$2.27

8

CAP,THERMOSTAT

17661-25L00

$35.90

9

THERMOSTAT,WTR 82 DEG

17670-81AB1

$36.17

10

BOLT

01547-0620A

$2.01
