2023 Suzuki DL800DERCM3 Front Fork Damper Diagram

← All diagrams

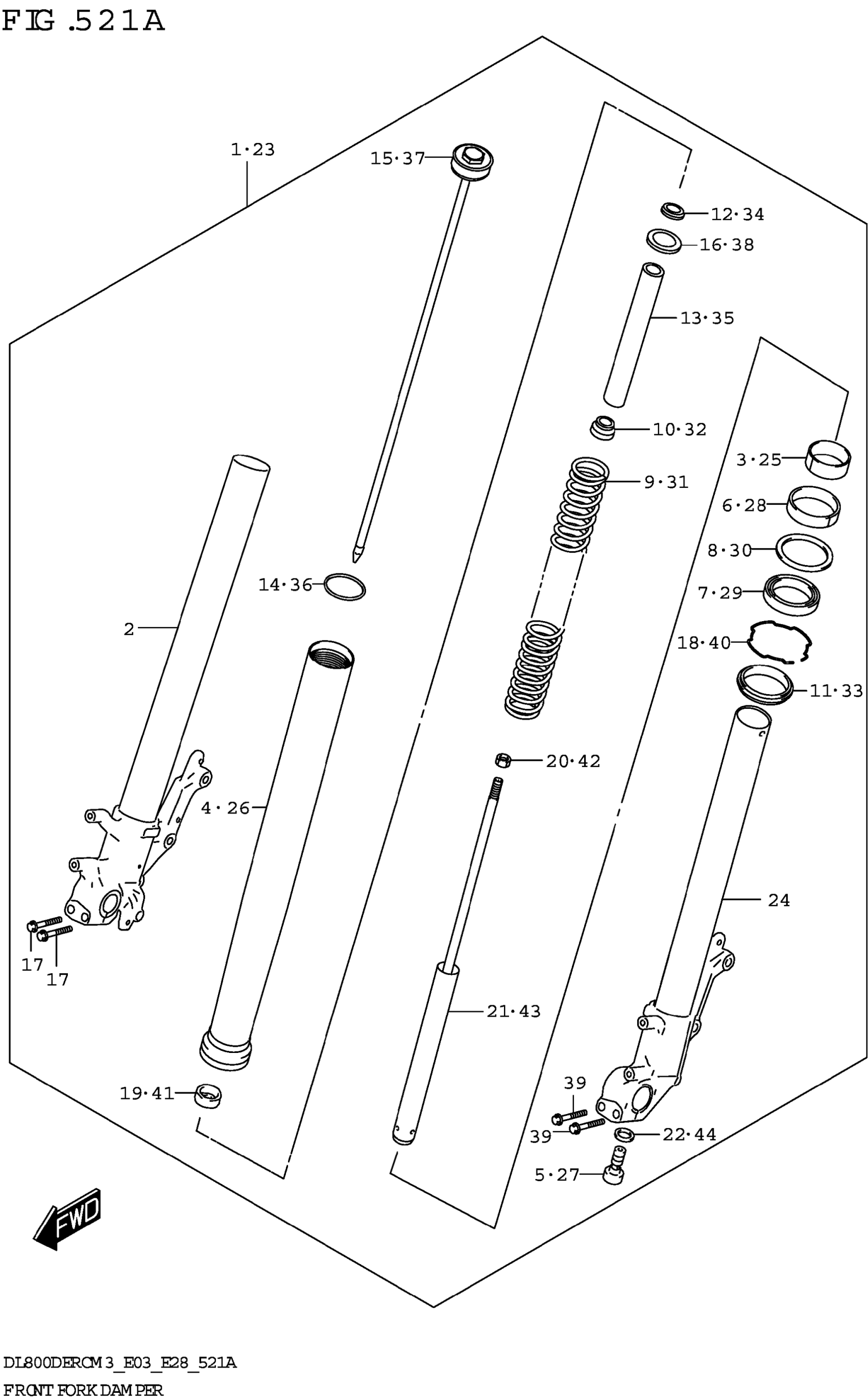

Find the part on the Front Fork Damper diagram for your 2023 Suzuki DL800DERCM3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Suzuki DL800DERCM3 Front Fork Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DAMPER ASSY,R

51103-25L30

1
Out of stock

2

.TUBE,INNER,R

51110-25L30

1
Out of stock

3

.BUSH,SLIDE

51121-07J00

1
Out of stock

4

.TUBE,OUTER

51131-25L30

1
Out of stock

5

.BOLT,CENTER

51147-25L30

1
Out of stock

6

.BUSH, GUIDE

51152-47H00

1
Out of stock

7

.SEAL,OIL

51153-47H00

1
Out of stock

8

.SPACER, SEAL

51168-17C00

1
Out of stock

9

.SPRING,FR

51171-25L30

1
Out of stock

10

.JOINT,SPRING LWR

51172-22D00

1
Out of stock

11

.SEAL,DUST

51173-25L30

1
Out of stock

12

.GUIDE,SPRING UPR

51175-22D00

1
Out of stock

13

.COLLAR SPRING

51176-25L30

1
Out of stock

14

..O-RING

51187-47H00

1
Out of stock

15

.BOLT,FORK

51189-25L30

1
Out of stock

16

.SEAT,RUBBER

51193-25L30

1
Out of stock

17

BOLT

51328-37F80

2
Out of stock

18

.RING,STOPPER

51556-38B00

1
Out of stock

19

.PLATE,CENTERING

51815-17D00

1
Out of stock

20

.NUT

51827-27E00

1
Out of stock

21

.PISTON ROD

52110-25L30

1
Out of stock

22

WASHER (10X15X1.5)

09161-10009

1
Out of stock

23

DAMPER ASSY,L

51104-25L30

1
Out of stock

24

.TUBE,INNER,L

51120-25L30

1
Out of stock

25

.BUSH,SLIDE

51121-07J00

1
Out of stock

26

.TUBE,OUTER

51131-25L30

1
Out of stock

27

.BOLT,CENTER

51147-25L30

1
Out of stock

28

.BUSH, GUIDE

51152-47H00

1
Out of stock

29

.SEAL,OIL

51153-47H00

1
Out of stock

30

.SPACER, SEAL

51168-17C00

1
Out of stock

31

.SPRING,FR

51171-25L30

1
Out of stock

32

.JOINT,SPRING LWR

51172-22D00

1
Out of stock

33

.SEAL,DUST

51173-25L30

1
Out of stock

34

.GUIDE,SPRING UPR

51175-22D00

1
Out of stock

35

.COLLAR SPRING

51176-25L30

1
Out of stock

36

..O-RING

51187-47H00

1
Out of stock

37

.BOLT,FORK

51189-25L30

1
Out of stock

38

.SEAT,RUBBER

51193-25L30

1
Out of stock

39

BOLT

51328-37F80

2
Out of stock

40

.RING,STOPPER

51556-38B00

1
Out of stock

41

.PLATE,CENTERING

51815-17D00

1
Out of stock

42

.NUT

51827-27E00

1
Out of stock

43

.PISTON ROD

52110-25L30

1
Out of stock

44

WASHER (10X15X1.5)

09161-10009

1
Out of stock
