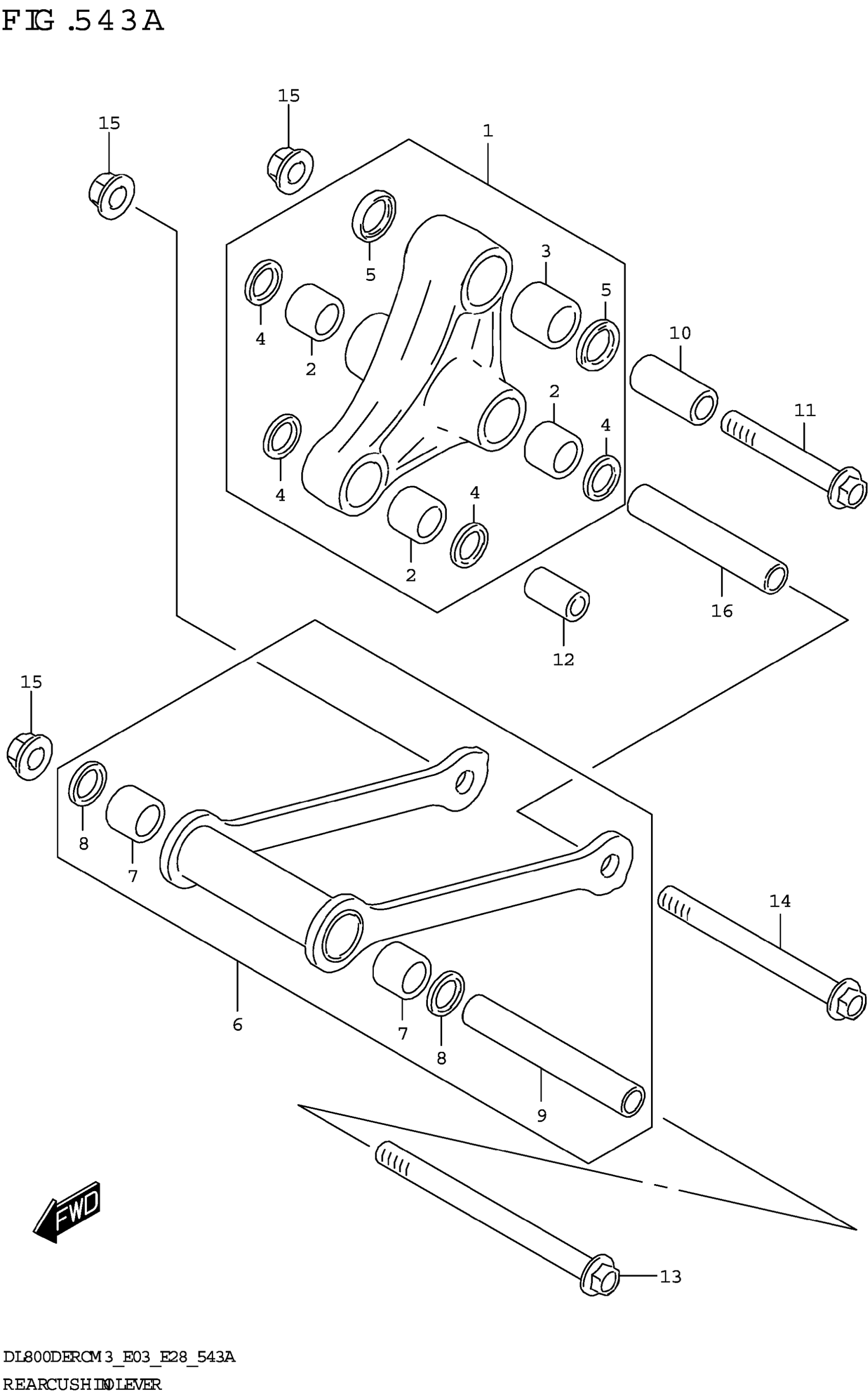

Suzuki DL800DERCM3 (2023) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET,REAR CUSHION

62600-25810

$357.28

2

.BEARING

09263-17059

$19.63

3

.BEARING (20X27X25)

09263-20053

$29.42

4

.SEAL,OIL (17X24X3)

09285-17007

$3.38

5

DUST SEAL, INNER This part replaces 09285-20005.

09283-20031

$4.73

6

ROD SET,RR CUSHION

62600-25820

$216.12

7

.BEARING

09263-17059

$19.63

8

.SEAL,OIL (17X24X3)

09285-17007

$3.38

9

.SPACER

09180-12163

$22.57

10

SPACER,RR CUSHION LEVER LWR

62646-37F10

$30.40

11

BOLT,RR CUSHION LEVER UPR

62658-37F10

$11.70

12

SPACER,RR CUSHION LEVER (10X1 | X30)

62684-40A10

$11.44

13

BOLT (L:155)

09103-12031

$17.55

14

BOLT

09103-12142

$10.42

15

NUT

09159-12056

$6.65

16

SPACER

09180-12162

$24.90
