2023 Suzuki DL800DERCM3 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 2023 Suzuki DL800DERCM3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

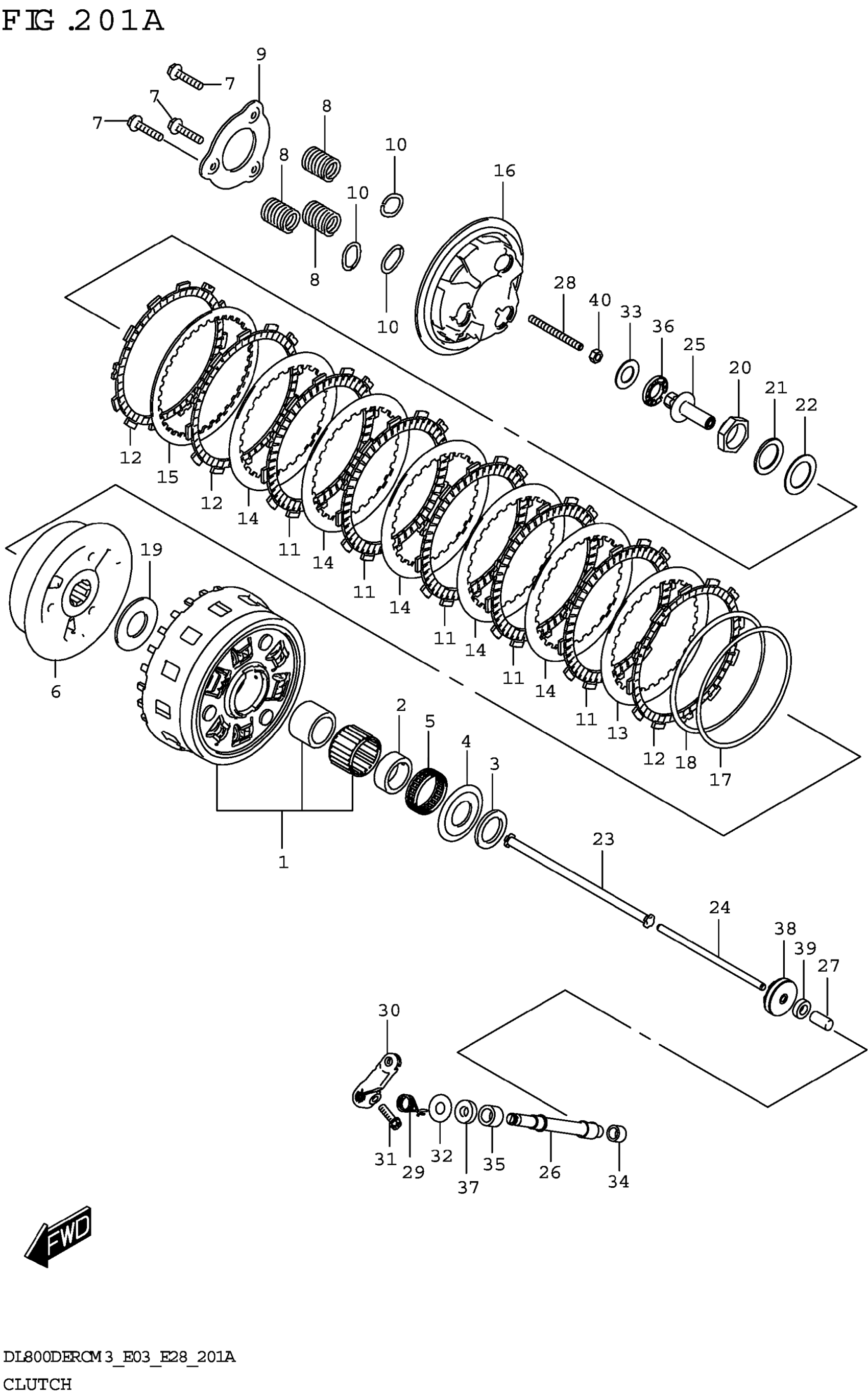

2023 Suzuki DL800DERCM3 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR ASSY,PRI DRIVEN (NT:62)

21200-25810

1
Out of stock

2

SPACER,OIL PUMP DRIVE SPROCKE

21253-01H10

1
Out of stock

3

WASHER (25X30X3)

09160-25036

1
Out of stock

4

WASHER (25X54X2.4)

09160-25073

1
Out of stock

5

BEARING (35X40X12) | OIL PUMP DR SPROCKET

09263-35045

1
Out of stock

6

.HUB,CLUTCH SLEEVE

21411-25L00

1
Out of stock

7

.BOLT,CLUTCH SPRING

21412-31J00

3
Out of stock

8

.SPRING,CLUTCH

21413-25L00

3
Out of stock

9

.PLATE,STOPPER

21414-25L00

1
Out of stock

10

.SEAT,CLUTCH SPRING

21415-31J00

3
Out of stock

11

.PLATE,CLUTCH DRIVE NO.1 (T:2 | )

21441-36F50

5
Out of stock

12

.PLATE,CLUTCH DRIVE NO.2 (T:2 | )

21442-41G20

3
Out of stock

13

.PLATE,CLUTCH DRIVEN NO.2 (T:

21451-25L10

1
Out of stock

14

.PLATE,CLUTCH DRIVEN (T:1.6)

21451-41G30

5
Out of stock

15

.PLATE,CLUTCH DRIVEN NO.3 (T:

21452-25L00

1
Out of stock

16

.DISC,CLUTCH PRESSURE

21462-25L00

1
Out of stock

17

.SEAT,WAVE WASHER

21471-41G00

1
Out of stock

18

.WASHER,CLUTCH PLATE WAVE

21472-41G20

1
Out of stock

19

.WASHER (25X50X2.5)

09160-25056

1
Out of stock

20

NUT

09159-24010

1
Out of stock

21

WASHER (24.2X35X2.7)

09164-24008

1
Out of stock

22

SHIM (25X38X1)

09181-25223

1
Out of stock

23

ROD,CLUTCH PUSH,R

23110-38B00

1
Out of stock

24

ROD,CLUTCH PUSH,L

23111-25L00

1
Out of stock

25

PIECE,CLUTCH PUSH

23121-25L00

1
Out of stock

26

CAMSHAFT,CLUTCH RELEASE

23122-25L00

1
Out of stock

27

CAP,CLUTCH PUSH ROD

23123-41G00

1
Out of stock

28

SCREW,CLUTCH PUSH ROD

23124-25L00

1
Out of stock

29

SPRING,CLUTCH RELEASE RETURN

23125-44G00

1
Out of stock

30

ARM,CLUTCH RELEASE

23271-41G00

1
Out of stock

31

BOLT (6X20)

09103-06527

1
Out of stock

32

WASHER (10.5X24X1.0)

09160-10020

1
Out of stock

33

WASHER (15.5X28X1)

09160-15045

1
Out of stock

34

BEARING (10X14X10)

09263-10014

1
Out of stock

35

BEARING (12X18X12)

09263-12027

1
Out of stock

36

BEARING (15X28X2)

09263-15003

1
Out of stock

37

SEAL,OIL (10X20X6)

09282-10012

1
Out of stock

38

SEAL,OIL

09283-06013

1
Out of stock

39

SEAL,OIL (10X17X5)

09285-10004

1
Out of stock

40

NUT

08310-0006A

1
Out of stock
