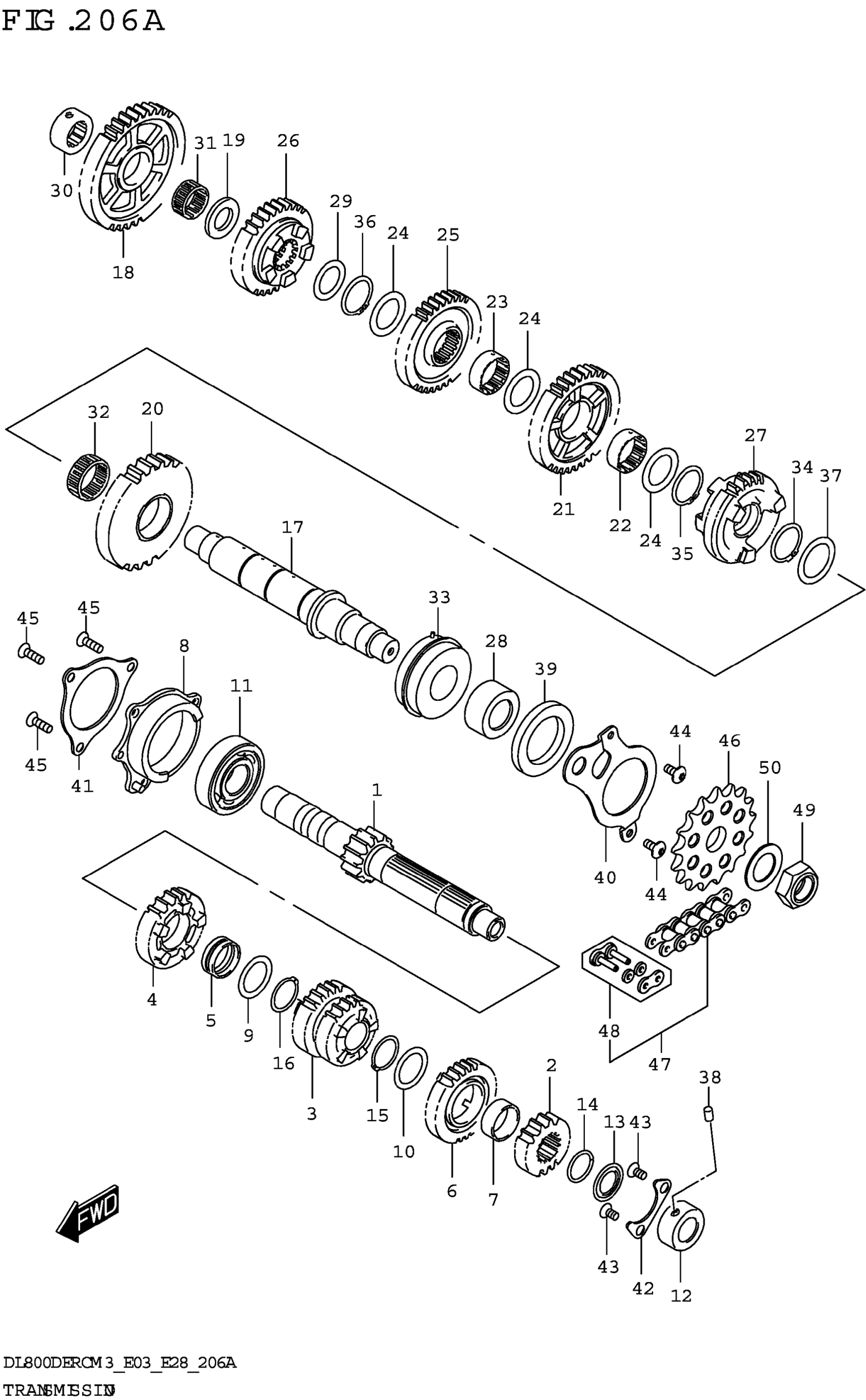

Find the part on the Transmission diagram for your 2023 Suzuki DL800DERCM3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Suzuki DL800DERCM3 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT,CNTR (NT:14)

24120-25L00

1
Out of stock

2

GEAR,2ND DRIVE (NT:15)

24221-25L00

1
Out of stock

3

GEAR,3RD & 4TH DRIVE (NT:20/2

24231-25L00

1
Out of stock

4

GEAR,5TH DRIVE (NT:26)

24251-25L00

1
Out of stock

5

BUSH,5TH DRIVE GEAR

24252-35F00

1
Out of stock

6

GEAR,6TH DRIVE (NT:28)

24261-25L00

1
Out of stock

7

BUSH,6TH DRIVE GEAR

24262-35F10

1
Out of stock

8

HOUSING,CNTR SHAFT BRG,R

24770-18H10

1
Out of stock

9

WASHER (27X36X1.0)

09160-27008

1
Out of stock

10

WASHER,LOCK (27X36X1)

09167-27001

1
Out of stock

11

BEARING (25X62X17)

09262-25073

1
Out of stock

12

BEARING

09263-20123

1
Out of stock

13

SEAL,OIL (20X31.2X2.7)

09285-20006

1
Out of stock

14

CIRCLIP

09380-27004

1
Out of stock

15

CIRCLIP

09380-27006

1
Out of stock

16

CIRCLIP

09380-27006

1
Out of stock

17

SHAFT,DRIVE

24131-25L00

1
Out of stock

18

GEAR,1ST DRIVEN (NT:43)

24311-25L00

1
Out of stock

19

SPACER,1ST DRIVEN GEAR,R

24315-25L00

1
Out of stock

20

GEAR,2ND DRIVEN (NT:33)

24321-25L00

1
Out of stock

21

GEAR,3RD DRIVEN (NT:34)

24331-25L00

1
Out of stock

22

BUSH,3RD DRIVEN GEAR

24332-24F20

1
Out of stock

23

BUSH,3RD DRIVEN GEAR

24332-24F20

1
Out of stock

24

WASHER,3RD & 4TH DRIVEN GEAR

24333-47H00

3
Out of stock

25

GEAR,4TH DRIVEN (NT:34)

24341-25L00

1
Out of stock

26

GEAR,5TH DRIVEN (NT:32)

24351-25L00

1
Out of stock

27

GEAR,6TH DRIVEN (NT:31)

24361-25L00

1
Out of stock

28

SPACER,ENGINE SPROCKET

27531-25L00

1
Out of stock

29

SHIM (24X34X1)

09181-24005

1
Out of stock

30

BEARING (20X34X13.5)

09263-20087

1
Out of stock

31

BEARING (24X28X13)

09263-24030

1
Out of stock

32

BEARING (30X35X12.8)

09263-30018

1
Out of stock

33

BEARING (30X62X23.8)

09267-30011

1
Out of stock

34

CIRCLIP

09380-30009

1
Out of stock

35

CIRCLIP

09380-30009

1
Out of stock

36

CIRCLIP

09380-30009

1
Out of stock

37

SHIM (30X40X1)

09181-30167

1
Out of stock

38

PIN (6X10)

09261-06003

1
Out of stock

39

SEAL,OIL (42X62X7)

09283-42018

1
Out of stock

40

RETAINER,CL PUSH ROD OIL SEAL

24741-25L00

1
Out of stock

41

RETAINER,CNTR SHAFT BEARING,R

24751-18H00

1
Out of stock

42

RETAINER,COUNTER SHAFT BRG,L

24751-25L00

1
Out of stock

43

SCREW (6X12)

09126-06011

2
Out of stock

44

SCREW (6X13)

09139-06153

2
Out of stock

45

SCREW (6X20)

09139-06159

3
Out of stock

46

1

$53.97

In stock

47

CHAIN ASSY,DRIVE

27600-17K00-126

1
Out of stock

48

.JOINT SET (DID525HV3)

27620-17K00

1
Out of stock

49

NUT

09159-20004

1

$15.18

In stock

50

SHIM (25X40X1.5)

09181-25268

1

$3.13

In stock
