2023 Suzuki DL800DERCM3 Throttle Body Diagram

← All diagrams

Find the part on the Throttle Body diagram for your 2023 Suzuki DL800DERCM3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

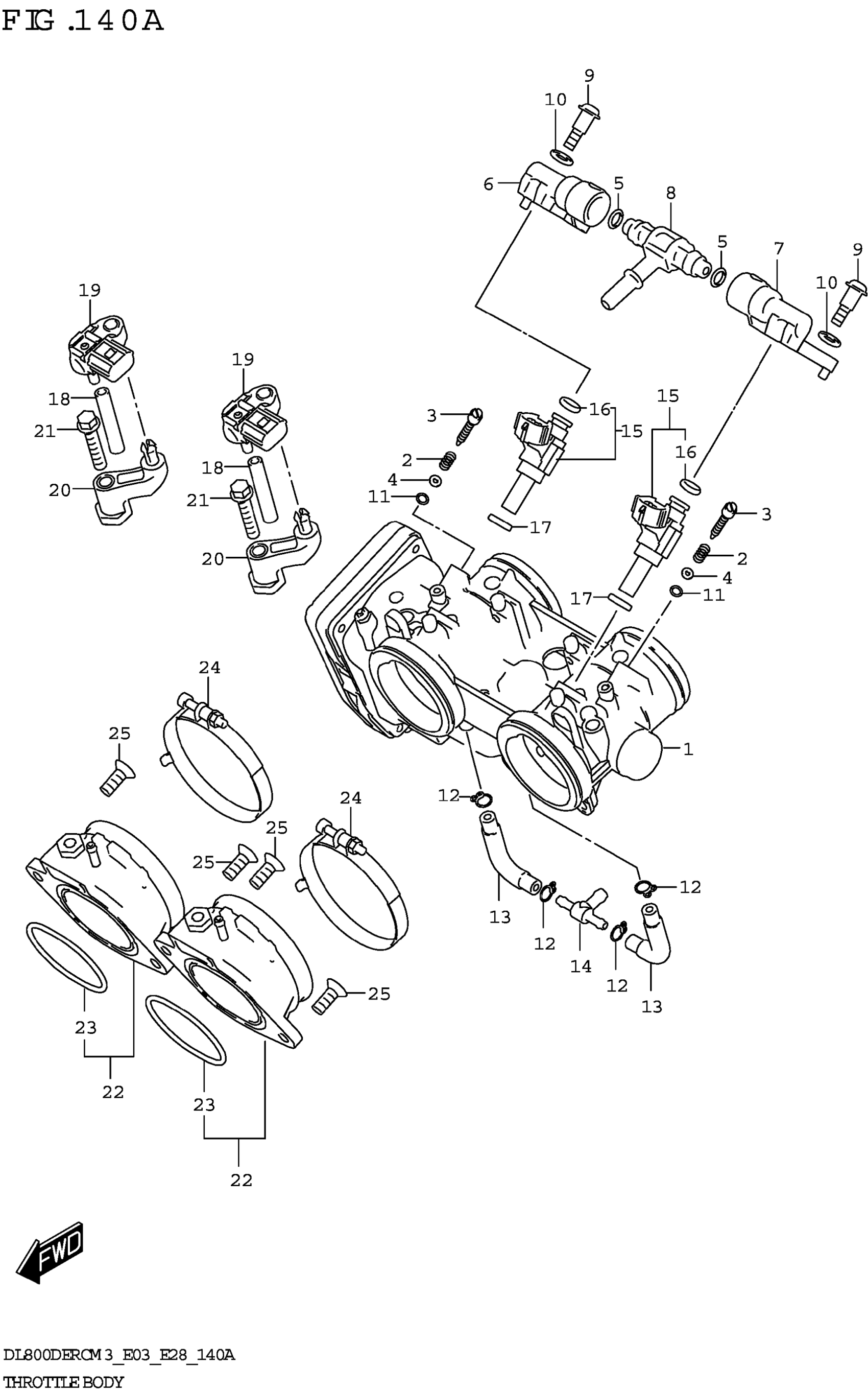

2023 Suzuki DL800DERCM3 Throttle Body Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MIXER ASSY This part replaces 13400-25L00.

13405-25L00

1
Out of stock

2

SPRING,THROTTLE SCREW

13268-48700

2

$4.33

In stock

3

SCREW

13269-33E00

2
Out of stock

4

O-RING

13295-29901

2
Out of stock

5

O-RING

13374-32G00

2
Out of stock

6

DELIVERY PIPE

13471-25L00

1
Out of stock

7

DELIVERY PIPE

13472-25L00

1
Out of stock

8

NIPPLE

13473-25L00

1
Out of stock

9

SCREW

13601-11J00

2
Out of stock

10

PACKING

13602-29G01

2
Out of stock

11

WASHER

13606-47A00

2
Out of stock

12

CLIP This part replaces 13671-12C00.

09401-06101

4
Out of stock

13

HOSE

13682-25L00

2
Out of stock

14

NIPPLE

13685-04F10

1
Out of stock

15

INJECTOR ASSY

15710-17K00

2
Out of stock

16

.O-RING

15717-58B00

2
Out of stock

17

SEAL

15722-14J00

2
Out of stock

18

HOSE

09355-35007-030

2
Out of stock

19

SENSOR,BOOST

18590-18K10

2
Out of stock

20

BRACKET,AIR PRESSURE SENSOR

18596-25L00

2
Out of stock

21

BOLT

01547-0630A

2
Out of stock

22

PIPE ASSY,INTAKE

13101-25L00

2
Out of stock

23

.O-RING,INTAKE PIPE

13127-25L00

2

$5.40

In stock

24

CLAMP,INTAKE PIPE

13170-25L00

2

$10.55

In stock

25

SCREW

02122-0616A

4
Out of stock
