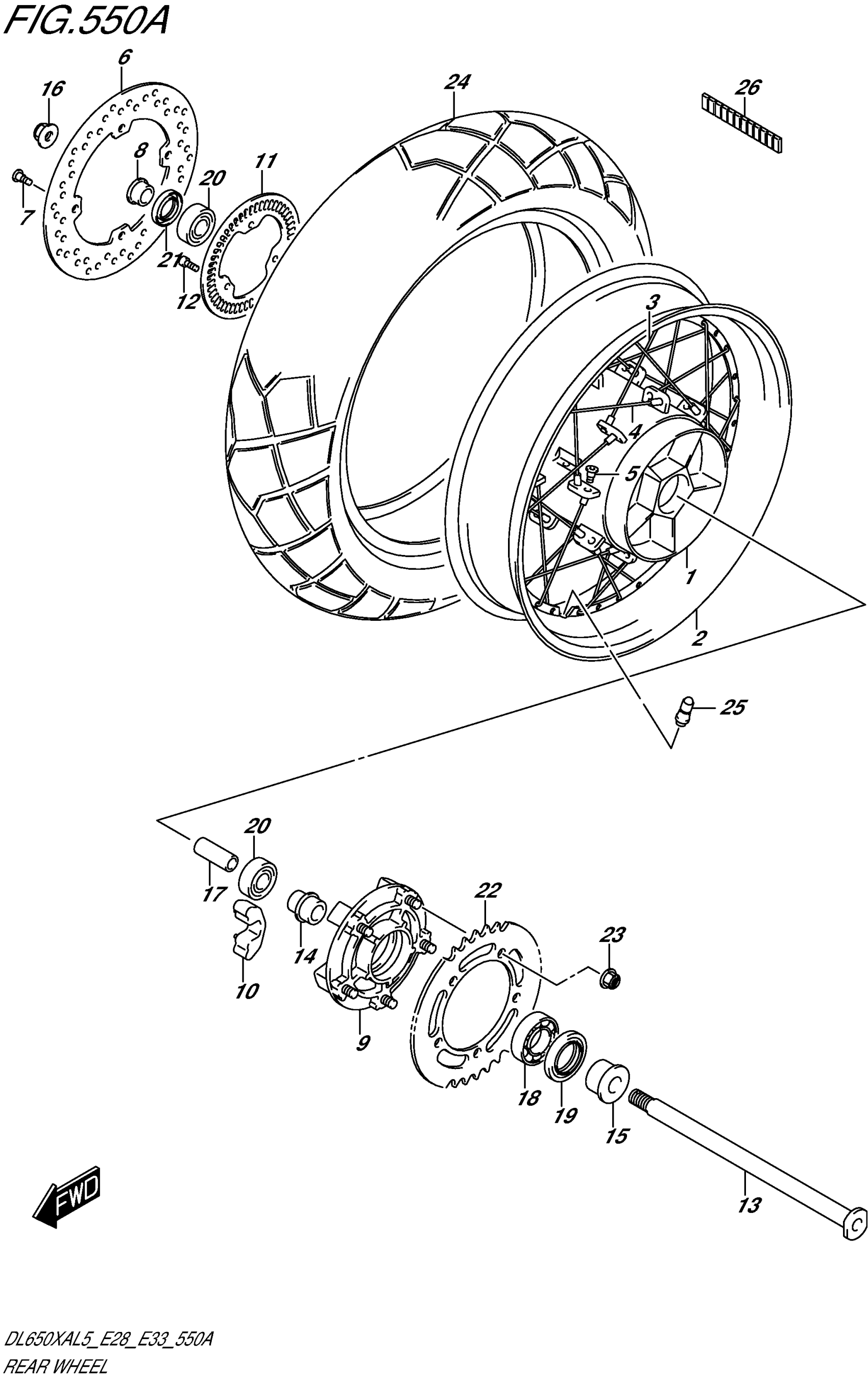

Find the part on the Rear Wheel diagram for your 2015 Suzuki DL650XAL5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Suzuki DL650XAL5 Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, RR

64111-11J00

1
Out of stock

2

RIM, REAR WHEEL (17M/CXMT4.00)

65311-11J00

1
Out of stock

3

SPOKE, REAR WHEEL INNER This part replaces 65321-11J00.

65321-11J01

16
Out of stock

4

SPOKE, REAR WHEEL OUTER This part replaces 65322-11J00.

65322-11J01

16
Out of stock

5

NIPPLE, WHEEL

55326-11J00

32
Out of stock

6

DISC, RR BRAKE

69211-06G10

1
Out of stock

7

BOLT (8X21)

09106-08160

4
Out of stock

8

SPACER, RR AXLE RH

64741-10F00

1
Out of stock

9

DRUM, RR SPROCKET

64610-35F40

1
Out of stock

10

ABSORBER, RR HUB SHOCK

64651-35F10

5
Out of stock

11

1

$158.17

In stock

12

BOLT

07130-0512A

3
Out of stock

13

AXLE, RR

64711-03F00

1
Out of stock

14

RETAINER, RR SPROCKET DRUM

64733-06G00

1
Out of stock

15

SPACER, RR AXLE LH

64751-27G00

1
Out of stock

16

NUT

08319-3118A

1

$26.62

In stock

17

SPACER (20.8X27.2X124)

09180-20112

1
Out of stock

18

BEARING (32X65X17) This part replaces 09262-32022.

09262-32024

1
Out of stock

19

OIL SEAL (39X65X7)

09285-39001

1
Out of stock

20

BEARING This part replaces 08123-62047.

08123-6204B

2
Out of stock

21

SEAL,OIL (27X47X7) This part replaces 09285-28001.

09285-28004

1
Out of stock

22

SPROCKET, RR (47T-525)

64511-27G00

1
Out of stock

23

NUT

08319-3110A

5
Out of stock

24

1

$251.17

In stock

25

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

1
Out of stock

26

WEIGHT,WHEEL BALANCE (5GRAM)

55411-11J00

1
Out of stock
