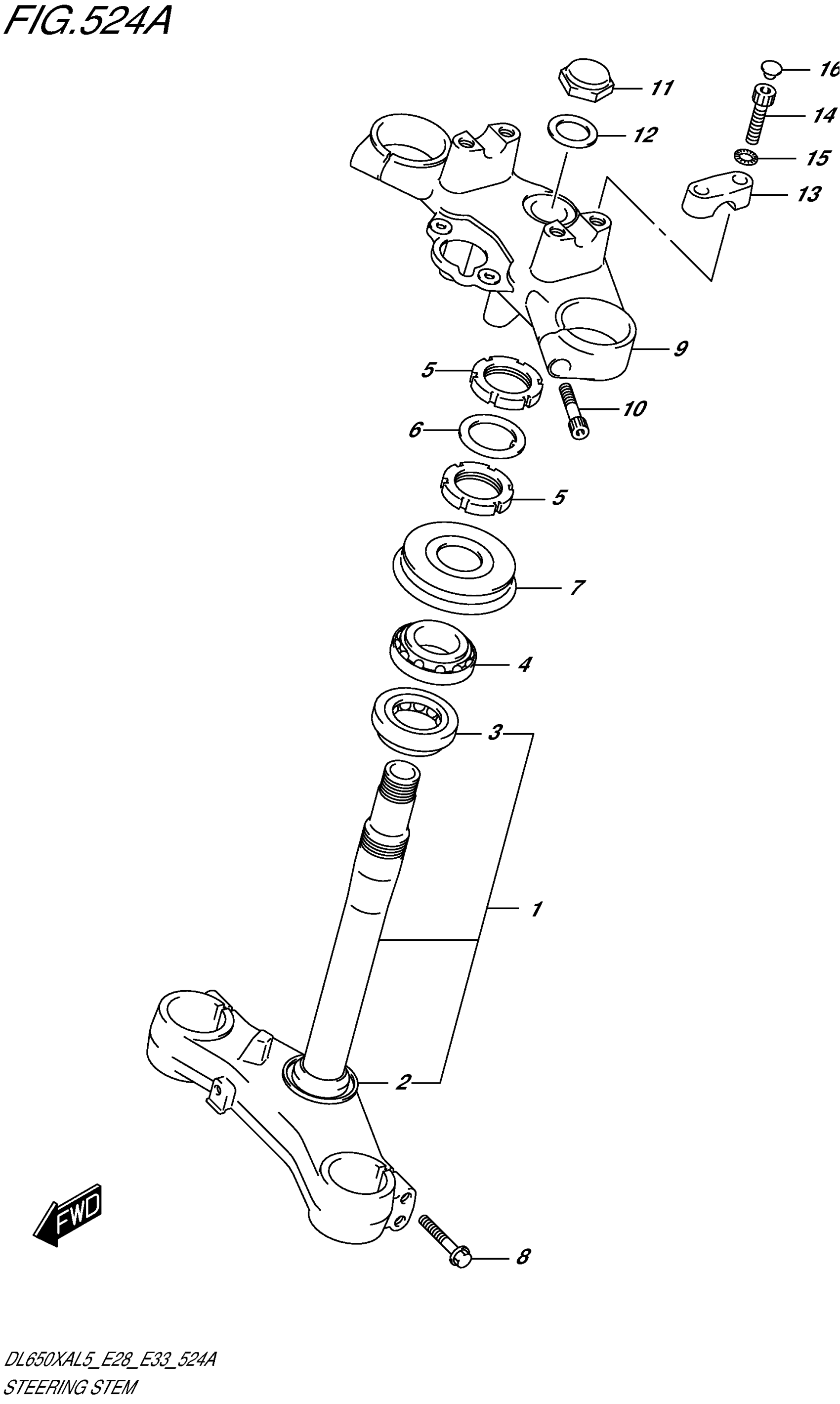

Suzuki DL650XAL5 (2015) STEERING STEM Diagram

#

Description
Price

1

STEM, STEERING This part replaces 51410-27G30.

51410-28K00

$758.05

2

SEAL, STEERING LOWER

51644-12C00

$8.65

3

BEARING (30X55X17)

09267-30010

$43.41

4

BEARING (30X55X17)

09267-30010

$43.41

5

NUT

51631-33E00

$21.64

6

WASHER

51641-33E00

$5.67

7

SEAL, STEERING UPR DUST

51643-33E00

$14.66

8

BOLT,HOLDER AXLE (8X40)

51328-27E30

$4.11

9

BRACKET, UPR This part replaces 51311-11J00.

51311-11J00-291

$361.72

10

BOLT

51166-38B40

$7.75

11

NUT

51353-27G00

$38.16

12

WASHER

51354-06G00

$13.30

13

HOLDER, HANDLE UPR This part replaces 56211-06G40.

56211-06G40-291

$52.03

14

BOLT This part replaces 51321-10F00.

07130-08307

$4.98

15

WASHER

09164-08015

$2.90

16

CAP (OD:11)

09250-06011

$2.53
