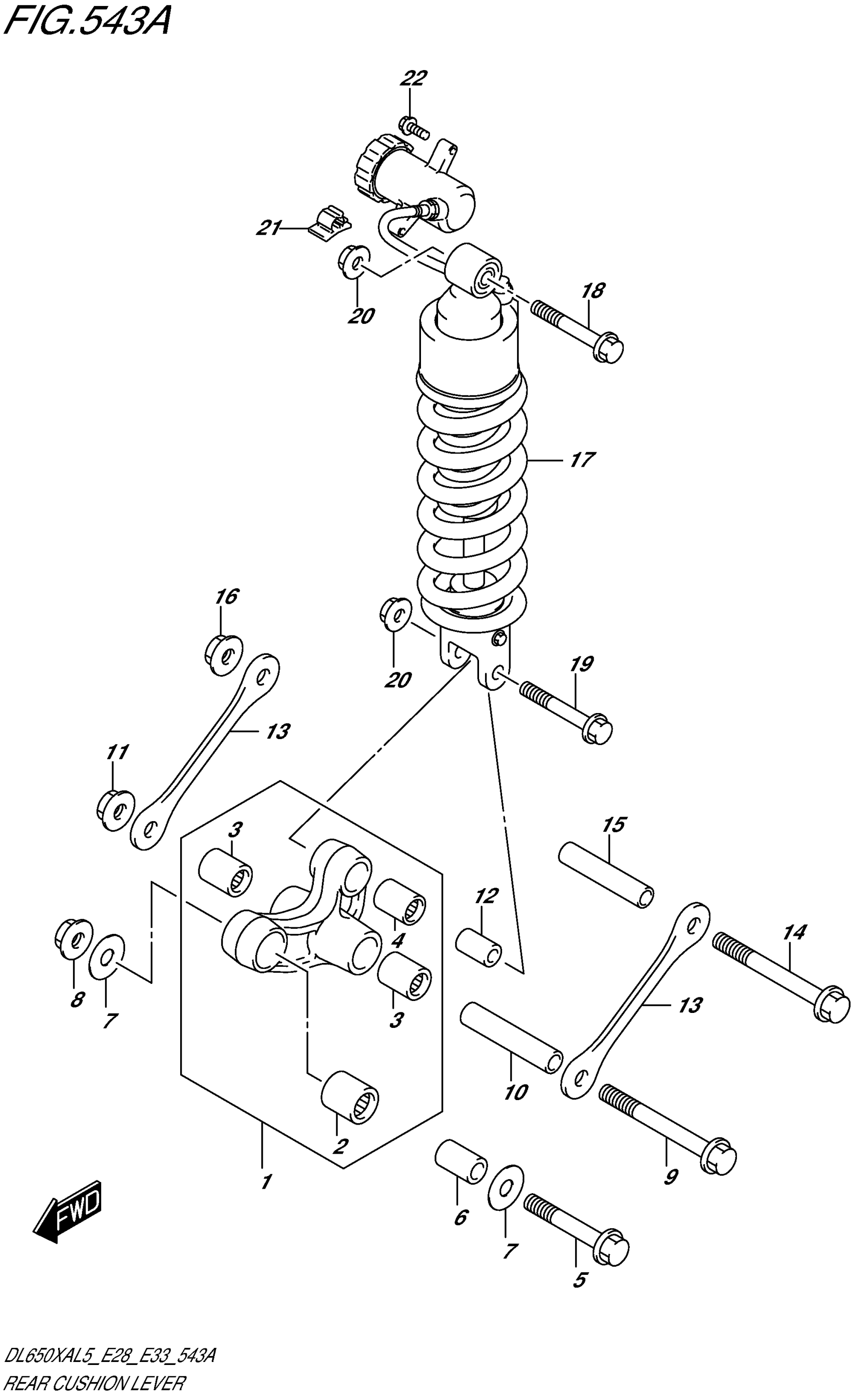

Suzuki DL650XAL5 (2015) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET, RR CUSHION This part replaces 62600-06870.

62600-06872

$404.70

2

.BEARING (20X27X30) | FRONT This part replaces 09263-20073.

09263-20121

$16.89

3

.BEARING (17X24X25) | CENTER This part replaces 09263-17037.

09263-17053

$20.23

4

.BEARING (17X24X26) | REAR This part replaces 09263-17034.

09263-17057

$19.75

5

BOLT, RR CUSHION LEVER FR

62658-19F00

$13.50

6

SPACER,RR CUSHION LEVER FR (1

62684-12C00

$20.72

7

WASHER (12X34X1)

09160-12037

$3.64

8

NUT

09159-12056

$6.86

9

BOLT,RR CUSHION ROD (12X111)

62621-19D00

$21.62

10

SPACER (12X17X85) | CENTER

09180-12122

$25.05

11

NUT

09159-12056

$6.86

12

SPACER, REAR (10X17X30)

62684-40A10

$11.96

13

ROD, RR CUSHION LEVER

62641-06G00

$36.48

14

BOLT,RR CUSHION ROD (12X111)

62621-19D00

$21.62

15

SPACER (12X17X85) | ROD

09180-12122

$25.05

16

NUT

09159-12056

$6.86

17

ABSORBER ASSY,R This part replaces 62100-06GH0-019.

62100-06GH1-019

Unavailable

18

BOLT (10X70) | UPPER

09103-10033

$5.84

19

BOLT (10X55) | LOWER

09103-10143

$4.92

20

NUT

09159-10115

$3.31

21

CLAMP

09403-10313

Unavailable

22

BOLT

01550-0616A

$2.01
