2015 Suzuki DL650XAL5 Front Fork Damper Diagram

← All diagrams

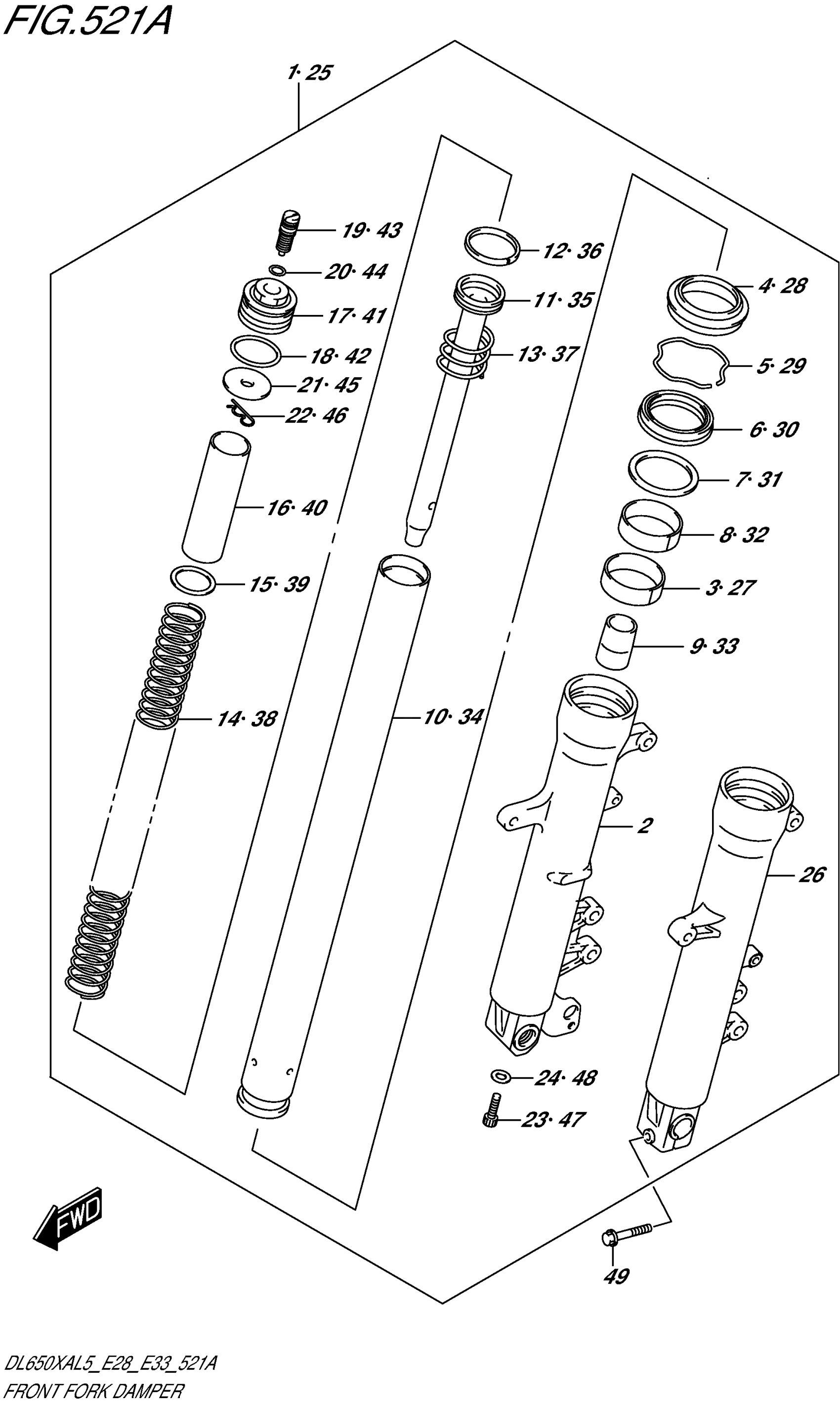

Find the part on the Front Fork Damper diagram for your 2015 Suzuki DL650XAL5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Suzuki DL650XAL5 Front Fork Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DAMPER ASSY, FRONT FORK RH

51103-11J00

1
Out of stock

2

TUBE, OUTER RH

51131-11J00

1
Out of stock

3

.BUSH, SLIDE This part replaces 51121-11J00.

51121-11J10

1
Out of stock

4

.SEAL, DUST

51173-27G00

1
Out of stock

5

RING, STOPPER

51556-38B00

1
Out of stock

6

SEAL, OIL This part replaces 51553-47H00.

51153-47H00

1
Out of stock

7

.SPACER, SEAL

51168-17C00

1
Out of stock

8

.BUSH, GUIDE

51152-47H00

1
Out of stock

9

PIECE, OIL LOCK

51195-27G00

1
Out of stock

10

PIPE, FORK

51110-11J00

1
Out of stock

11

PIPE SEAT

51146-11J00

1
Out of stock

12

RING, PISTON

51196-27G00

1
Out of stock

13

SPRING, REBOUND

51177-14D00

1
Out of stock

14

SPRING, FRONT

51171-11J00

1
Out of stock

15

SEAT, SPRING, LOWER

51186-17C00

1
Out of stock

16

COLLAR, SPRING

51176-19C00

1
Out of stock

17

BOLT, FORK

51189-27G00

1
Out of stock

18

O RING

51117-17C00

1
Out of stock

19

ADJUSTER BOLT, SPRING

51185-27G00

1
Out of stock

20

O RING (D:2.5,ID:13.8) This part replaces 51187-14D00.

09280-14011

1
Out of stock

21

SEAT, SPRING

51186-12C00

1
Out of stock

22

PIN, SEAT SPRING

51188-32B00

1
Out of stock

23

BOLT

51147-48130

1
Out of stock

24

O RING This part replaces 51148-31030.

51148-36011

1
Out of stock

25

DAMPER ASSY, FRONT FORK LH

51104-11J00

1
Out of stock

26

TUBE, OUTER LH

51141-11J00

1
Out of stock

27

.BUSH, SLIDE This part replaces 51121-11J00.

51121-11J10

1
Out of stock

28

.SEAL, DUST

51173-27G00

1
Out of stock

29

RING, STOPPER

51556-38B00

1
Out of stock

30

SEAL, OIL This part replaces 51553-47H00.

51153-47H00

1
Out of stock

31

.SPACER, SEAL

51168-17C00

1
Out of stock

32

.BUSH, GUIDE

51152-47H00

1
Out of stock

33

PIECE, OIL LOCK

51195-27G00

1
Out of stock

34

PIPE, FORK

51110-11J00

1
Out of stock

35

PIPE SEAT

51146-11J00

1
Out of stock

36

RING, PISTON

51196-27G00

1
Out of stock

37

SPRING, REBOUND

51177-14D00

1
Out of stock

38

SPRING, FRONT

51171-11J00

1
Out of stock

39

SEAT, SPRING, LOWER

51186-17C00

1
Out of stock

40

COLLAR, SPRING

51176-19C00

1
Out of stock

41

BOLT, FORK

51189-27G00

1
Out of stock

42

O RING

51117-17C00

1
Out of stock

43

ADJUSTER BOLT, SPRING

51185-27G00

1
Out of stock

44

O RING (D:2.5,ID:13.8) This part replaces 51187-14D00.

09280-14011

1
Out of stock

45

SEAT, SPRING

51186-12C00

1
Out of stock

46

PIN, SEAT SPRING

51188-32B00

1
Out of stock

47

BOLT

51147-48130

1
Out of stock

48

O RING This part replaces 51148-31030.

51148-36011

1
Out of stock

49

BOLT,HOLDER AXLE (8X40) | LH

51328-27E30

1
Out of stock
