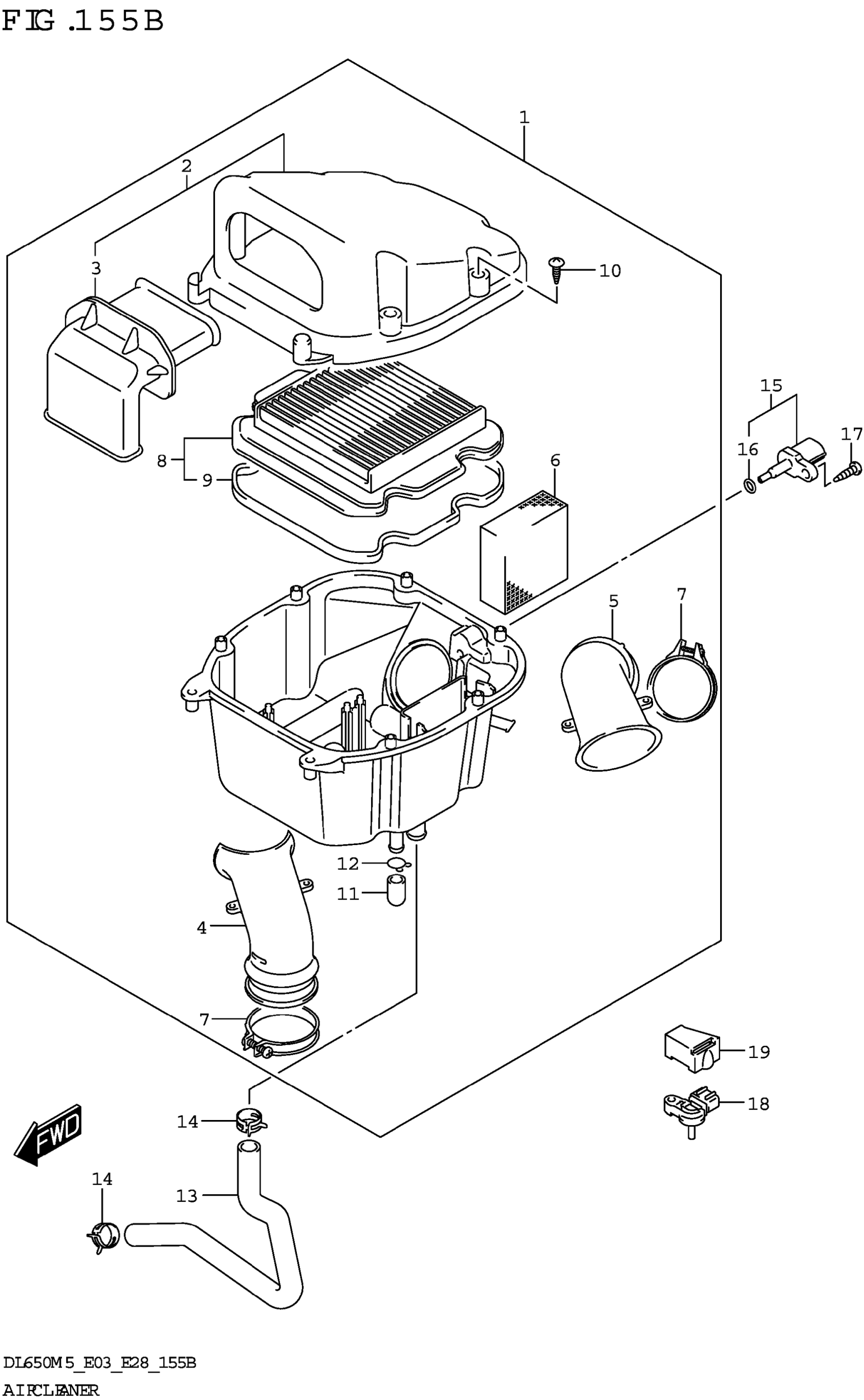

Find the part on the Air Cleaner diagram for your 2025 Suzuki DL650AM5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Suzuki DL650AM5 Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY, AIR

13700-11J02

1

$271.32

In stock

2

.CAP, AIR CLEANER

13740-11J01

1
Out of stock

3

..TUBE, INLET

13891-27G01

1

$32.46

In stock

4

.TUBE, OUTLET A

13881-27G11

1

$24.02

In stock

5

.TUBE, OUTLET B

13882-27G11

1

$24.02

In stock

6

.FILTER, BREATHER

13788-11J00

1

$16.56

In stock

7

.CLAMP,OUTLET TUBE

13826-44H01

2
Out of stock

8

.FILTER ASSY

13780-27G10

1

$48.88

In stock

9

..GASKET, AIR CLEANER

13746-06G00

1

$17.01

In stock

10

.SCREW

03141-0516A

8

$1.54

In stock

11

.PLUG

13878-10G01

1

$6.53

In stock

12

.CLIP

09401-14301

1

$2.50

In stock

13

TUBE, BREATHER

13850-11J00

1

$56.07

In stock

14

CLIP

09401-20405

2
Out of stock

15

SENSOR,AIR TEMP

13650-41F10

1

$71.40

In stock

16

O-RING

13655-41F10

1
Out of stock

17

SCREW

03511-0516A

1

$2.03

In stock

18

SENSOR,BOOST

18590-18K00

2

$350.62

In stock

19

HOLDER, SENSOR

18595-04K01

2

$10.20

In stock
