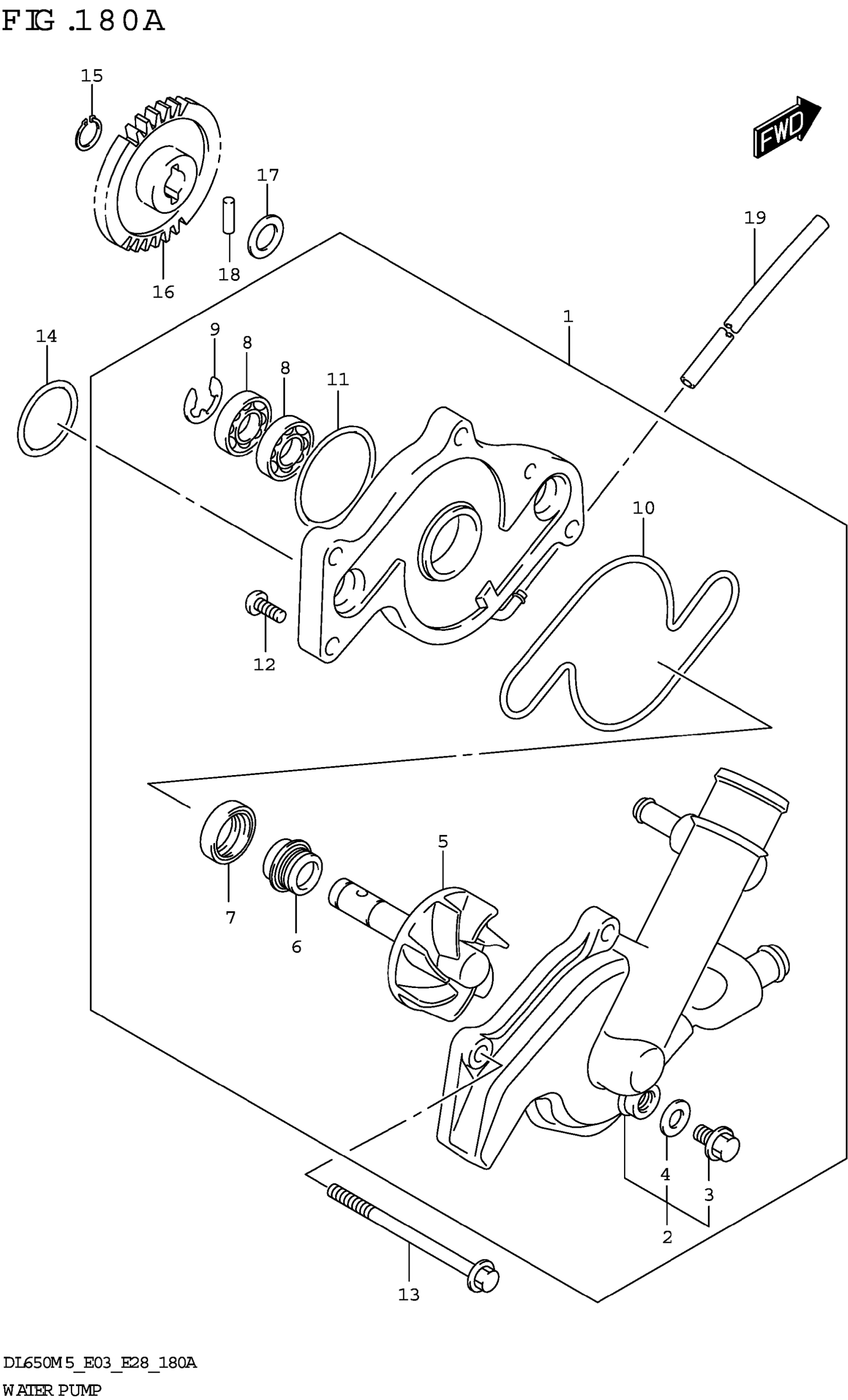

Suzuki DL650AM5 (2025) WATER PUMP Diagram

#

Description
Price

1

PUMP ASSY, WATER

17400-44H01

$338.18

2

.CASE, WATER PUMP

17411-44H00

$161.65

3

.BOLT,DRAIN

17415-20920

$6.75

4

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.64

5

.IMPELLER/SHAFT

17491-19F40

$76.85

6

.SEAL,MECHANICAL

17470-02F11

$26.75

7

.SEAL,OIL (10X21X5)

17461-48G00

$12.45

8

.BEARING (10X26X8)

09262-10014

$14.44

9

.E-RING

08332-1108A

$1.77

10

.O-RING

17418-19F00

$5.30

11

.O-RING

17435-33400

$13.99

12

SCREW

02112-0510A

$1.43

13

BOLT (6X70)

09103-06537

$3.43

14

.O-RING (D:2.4,ID:21.8)

09280-22001

$1.48

15

CIRCLIP

08331-31109

$1.77

16

GEAR,WATER PUMP DRIVEN (NT:34

17461-44H00

$51.22

17

SHIM (10X18X0.5)

09181-10158

$1.97

18

ROLLER (4X13.8)

09261-04002

$1.87

19

HOSE (3.5X6.5X320)

09352-35654-320

$10.25
