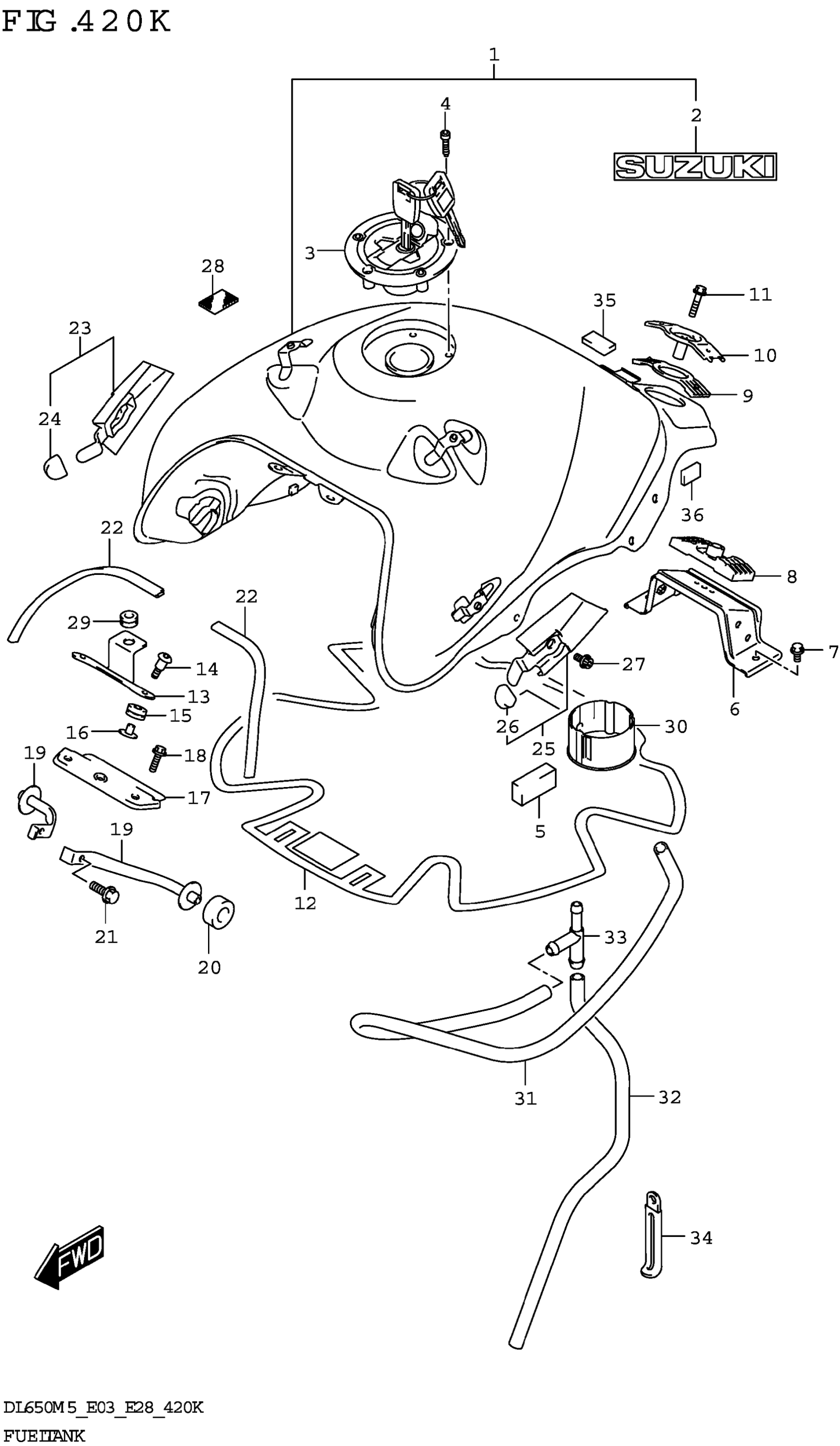

Suzuki DL650AM5 (2025) FUEL TANK (DL650A:E33) Diagram

#

Description
Price

1-1

TANK ASSY, FUEL (BLUE) | BODY COLOR:YKY

44100-28K30-YKY

$1,004.97

1-2

TANK ASSY, FUEL (GRAY) | BODY COLOR:YUD

44100-28K30-YUD

$1,004.97

1-3

TANK ASSY, FUEL (BLACK) | BODY COLOR:YVB

44100-28K30-YVB

$1,004.97

2-1

.EMBLEM,SUZUKI (SILVER) | BODY COLOR:YKY

68111-47C10-YD8

$25.92

2-2

.EMBLEM (BLACK) | BODY COLOR:YUD

68111-47C10-019

$18.38

2-3

.EMBLEM (GRAY) | BODY COLOR:YVB

68111-47C10-YLF

$17.33

3

CAP SET,FUEL TANK FILLER

44200-17840

$185.23

4

BOLT,FUEL TANK FILLER CAP

44244-11J00

$3.76

5

CUSHION, FUEL TANK SIDE

44541-28K00

$13.30

6

BRACKET, FUEL TANK RR

44550-06G10

Unavailable

7

BOLT (8X16)

01550-0816A

$2.31

8

CUSHION,FUEL TANK RR LWR

44545-06G00

$20.58

9

CUSHION,FUEL TANK RR UPR

44542-06G00

$18.93

10

BRACKET,FUEL TANK RR UP

44530-06G00

Unavailable

11

BOLT (8X35)

01550-0835A

$2.80

12

SHIELD, FUEL TANK CENTER

44194-11J00

$91.30

13

BRACKET, FR COVER

44154-11J00

$12.40

14

SCREW (6X25)

09139-06192

$2.92

15

CUSHION,FUEL TANK FRONT

44511-16G01

$3.77

16

SPACER,FUEL TANK FR

44512-16G00

$6.80

17

BRACKET, FUEL TANK FR

44520-11J00

Unavailable

18

BOLT

01550-0620B

$2.38

19

BRACKET, FR SIDE

44560-11J00

Unavailable

20

CUSHION,FRONT SIDE BRKT

44543-31J01

$5.63

21

BOLT

01550-0612A

$1.97

22

MOLDING, FUEL TANK

68241-11J01

$20.25

23

BRACKET, FUEL TANK COVER RH

44130-28K00

$13.75

24

CUSHION

09329-18001

$1.89

25

BRACKET, FUEL TANK COVER LH

44140-28K00

$13.75

26

CUSHION

09329-18001

$1.89

27

.BOLT

07120-0610A

$2.58

28

FASTENER,COWLING (20X15X0.8)

44572-37H00

$9.01

29

CUSHION (6X18X6)

09320-06504

$4.47

30

VESSEL, FUEL TANK INNER

44121-28K01

$13.43

31

HOSE, FUEL TANK DRAIN NO.1

44423-28K01

$20.17

32

HOSE, FUEL TANK DRAIN NO.2

44423-11J31

$5.28

33

3 WAY

09367-08005

$5.25

34

CLAMP (L:80)

09404-06030

Unavailable

35

CUSHION

45516-01H00

$6.00

36

CUSHION, FRAME COVER FR RR

47122-28K00

$6.47
