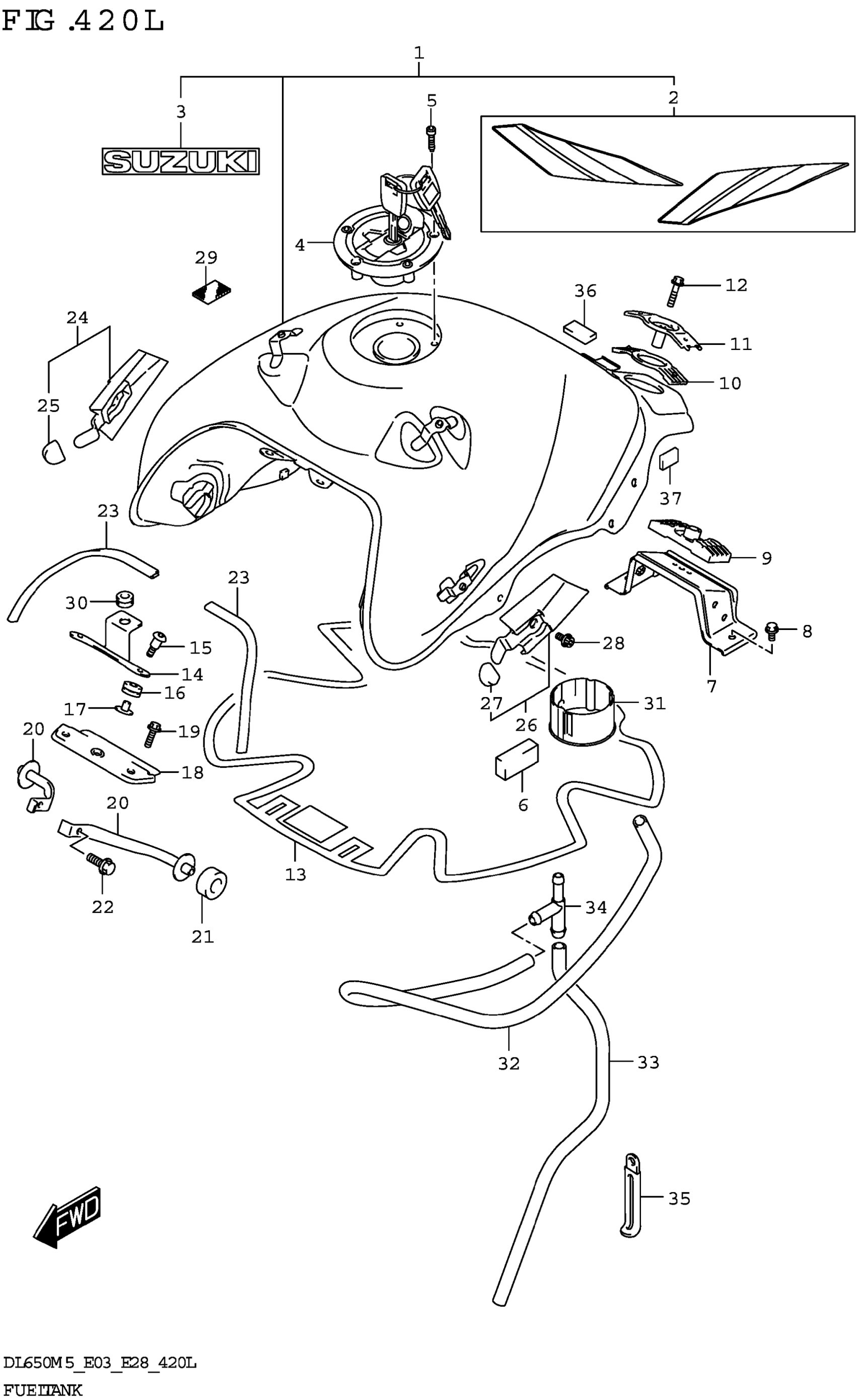

Suzuki DL650AM5 (2025) FUEL TANK (DL650XA:(E33)) Diagram

#

Description
Price

1-1

TANK ASSY, FUEL (YELLOW) | BODY COLOR:YU1

44100-28KJ0-YU1

$1,036.43

1-2

TANK ASSY, FUEL (BLACK) | BODY COLOR:YVB

44100-28KJ0-YVB

$1,036.43

1-3

TANK ASSY, FUEL (WHITE) | BODY COLOR:JWN

44100-28KJ0-YUH

$1,036.43

2-1

.TAPE SET, FUEL TANK | OW) BODY COLOR:YU1

68110-28K40-CQP

$46.25

2-2

.TAPE SET, FUEL TANK | ,BLACK) BODY COLOR:YVB

68110-28K40-CQQ

$46.25

2-3

.TAPE SET, FUEL TANK | CK,BLUE) BODY COLOR:JWN

68110-28K40-CGN

$46.25

3-1

.EMBLEM (BLACK) | BODY COLOR:YU1,JWN

68111-47C10-019

$18.38

3-2

.EMBLEM (GRAY) | BODY COLOR:YVB

68111-47C10-YLF

$17.33

4

CAP SET,FUEL TANK FILLER

44200-17840

$185.23

5

BOLT,FUEL TANK FILLER CAP

44244-11J00

$3.76

6

CUSHION, FUEL TANK SIDE

44541-28K00

$13.30

7

BRACKET, FUEL TANK RR

44550-06G10

Unavailable

8

BOLT (8X16)

01550-0816A

$2.31

9

CUSHION,FUEL TANK RR LWR

44545-06G00

$20.58

10

CUSHION,FUEL TANK RR UPR

44542-06G00

$18.93

11

BRACKET,FUEL TANK RR UP

44530-06G00

Unavailable

12

BOLT (8X35)

01550-0835A

$2.80

13

SHIELD, FUEL TANK CENTER

44194-11J00

$91.30

14

BRACKET, FR COVER

44154-11J00

$12.40

15

SCREW (6X25)

09139-06192

$2.92

16

CUSHION,FUEL TANK FRONT

44511-16G01

$3.77

17

SPACER,FUEL TANK FR

44512-16G00

$6.80

18

BRACKET, FUEL TANK FR

44520-11J00

Unavailable

19

BOLT

01550-0620B

$2.38

20

BRACKET, FR SIDE

44560-11J00

Unavailable

21

CUSHION,FRONT SIDE BRKT

44543-31J01

$5.63

22

BOLT

01550-0612A

$1.97

23

MOLDING, FUEL TANK

68241-11J01

$20.25

24

BRACKET, FUEL TANK COVER RH

44130-28K00

$13.75

25

CUSHION

09329-18001

$1.89

26

BRACKET, FUEL TANK COVER LH

44140-28K00

$13.75

27

CUSHION

09329-18001

$1.89

28

.BOLT

07120-0610A

$2.58

29

FASTENER,COWLING (20X15X0.8)

44572-37H00

$9.01

30

CUSHION (6X18X6)

09320-06504

$4.47

31

VESSEL, FUEL TANK INNER

44121-28K01

$13.43

32

HOSE, FUEL TANK DRAIN NO.1

44423-28K01

$20.17

33

HOSE, FUEL TANK DRAIN NO.2

44423-11J31

$5.28

34

3 WAY

09367-08005

$5.25

35

CLAMP (L:80)

09404-06030

Unavailable

36

CUSHION

45516-01H00

$6.00

37

CUSHION, FRAME COVER FR RR

47122-28K00

$6.47
