2012 Suzuki DL650AL2 Turnsignal Lamp Diagram

← All diagrams

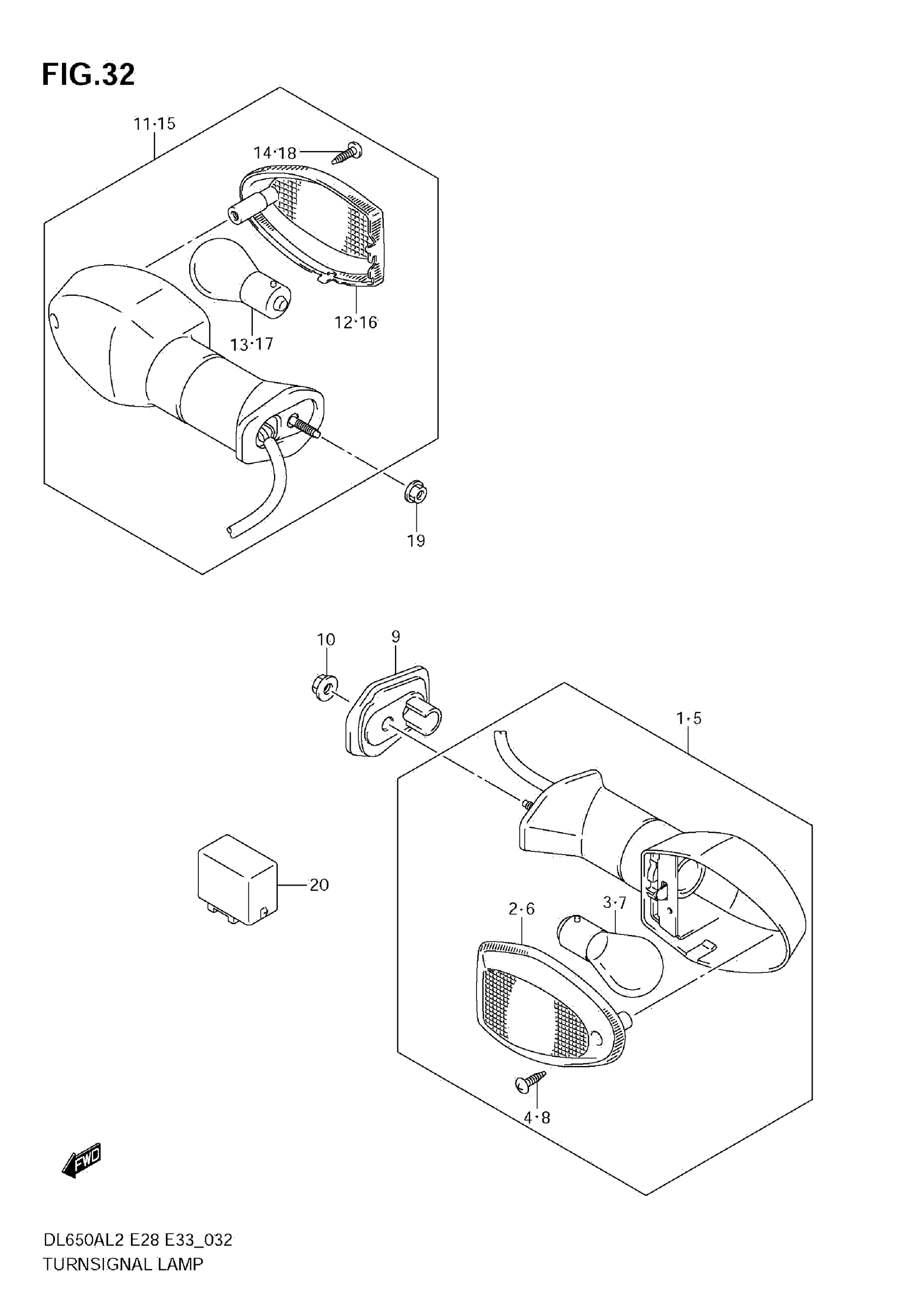

Find the part on the Turnsignal Lamp diagram for your 2012 Suzuki DL650AL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki DL650AL2 Turnsignal Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

2

1

$13.82

In stock

3

BULB (12V,21W)

09471-12045

1
Out of stock

4

SCREW

03211-0414B

1

$1.93

In stock

6

1

$13.65

In stock

7

BULB (12V,21W)

09471-12045

1
Out of stock

8

SCREW

03211-0414B

1

$1.93

In stock

9

PLATE, FR TURNSIGNAL

35629-18G00

2

$2.80

In stock

10

NUT

08316-1005A

2
Out of stock

12

1

$13.65

In stock

13

BULB (12V,21W)

09471-12045

1
Out of stock

14

SCREW

03211-0414B

1

$1.93

In stock

16

1

$13.82

In stock

17

BULB (12V,21W)

09471-12045

1
Out of stock

18

SCREW

03211-0414B

1

$1.93

In stock

19

NUT

08319-3105A

2

$2.47

In stock

20

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

1
Out of stock
