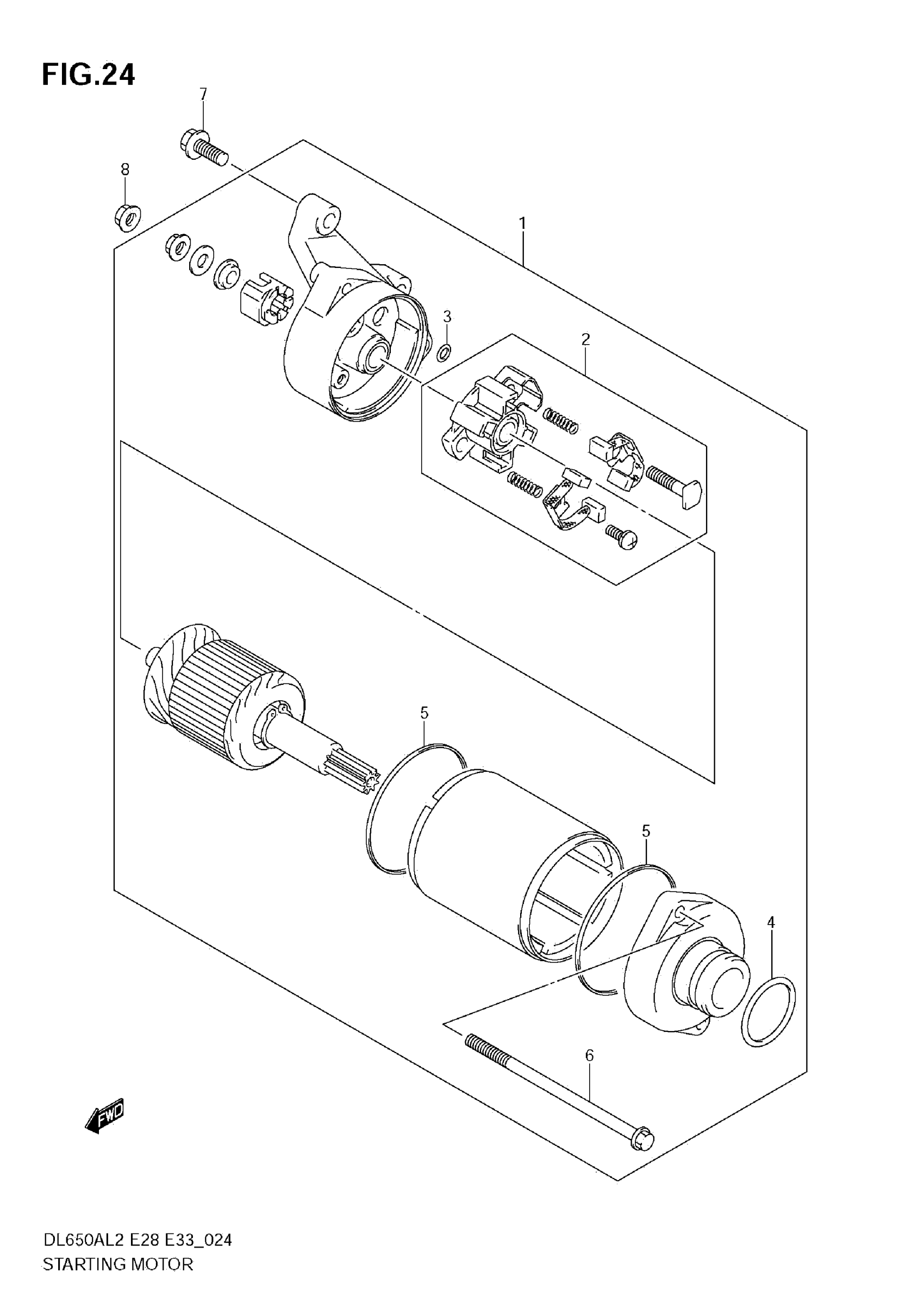

Suzuki DL650AL2 (2012) STARTING MOTOR Diagram

#

Description

Price

1

MOTOR ASSY,STARTING

31100-19F10

$459.22

2

BRUSH HOLDER SET

31132-18H00

$81.27

3

O-RING

31143-49040

$3.50

4

O-RING

31156-98E00

$3.66

5

SQUARE RING

31264-38F10

$9.50

6

SET BOLT

31280-19F10

Unavailable

7

BOLT (6X25)

09103-06212

$2.53

8

NUT

08361-3506A

$1.81
