2012 Suzuki DL650AL2 Rear Combination Lamp Diagram

← All diagrams

Find the part on the Rear Combination Lamp diagram for your 2012 Suzuki DL650AL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

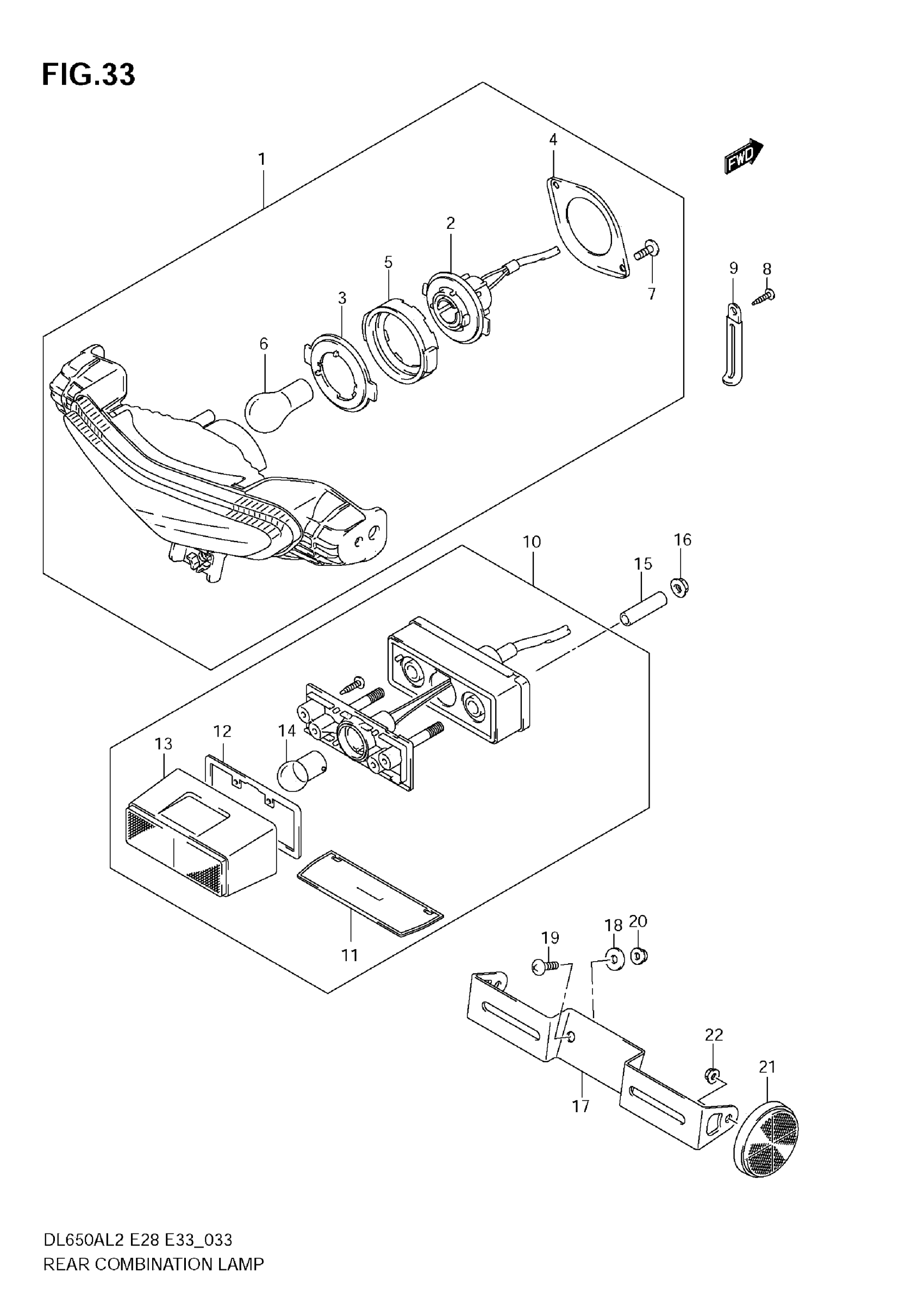

2012 Suzuki DL650AL2 Rear Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY, REAR COMBINATION This part replaces 35710-11J00.

35710-11J01

1
Out of stock

2

SOCKET & CORD This part replaces 35718-11J00.

35718-11J01

1
Out of stock

3

PLATE, NO.1

35716-48B21

1
Out of stock

4

PLATE, NO.2

35736-48B21

1
Out of stock

5

CUSHION This part replaces 35765-42E00.

35765-48B21

1
Out of stock

6

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

1
Out of stock

7

SCREW

03211-0412A

2
Out of stock

8

SCREW

03541-0616A

1
Out of stock

9

CLAMP (L:45)

09404-06429

1
Out of stock

10

LAMP ASSY,LICENSE This part replaces 35910-41G31.

35910-41G32

1
Out of stock

11

LENS

35912-41G01

1

$14.98

In stock

12

GASKET

35913-41G00

1

$16.07

In stock

13

COVER

35917-41G00

1

$39.85

In stock

14

1

$2.55

In stock

15

SPACER (6.5X9X33.3)

09180-06278

2
Out of stock

16

NUT

09159-06096

2
Out of stock

17

BRACKET,LICENSE PLATE

35927-14J30

1
Out of stock

18

WASHER (6.5X20X1.2)

09160-06077

2
Out of stock

19

SCREW

02142-0616A

2
Out of stock

20

NUT

08316-1006A

2
Out of stock

21

REFLECTOR ASSY, RR SIDE

35970-14A20

2
Out of stock

22

NUT

08316-1005A

2
Out of stock
