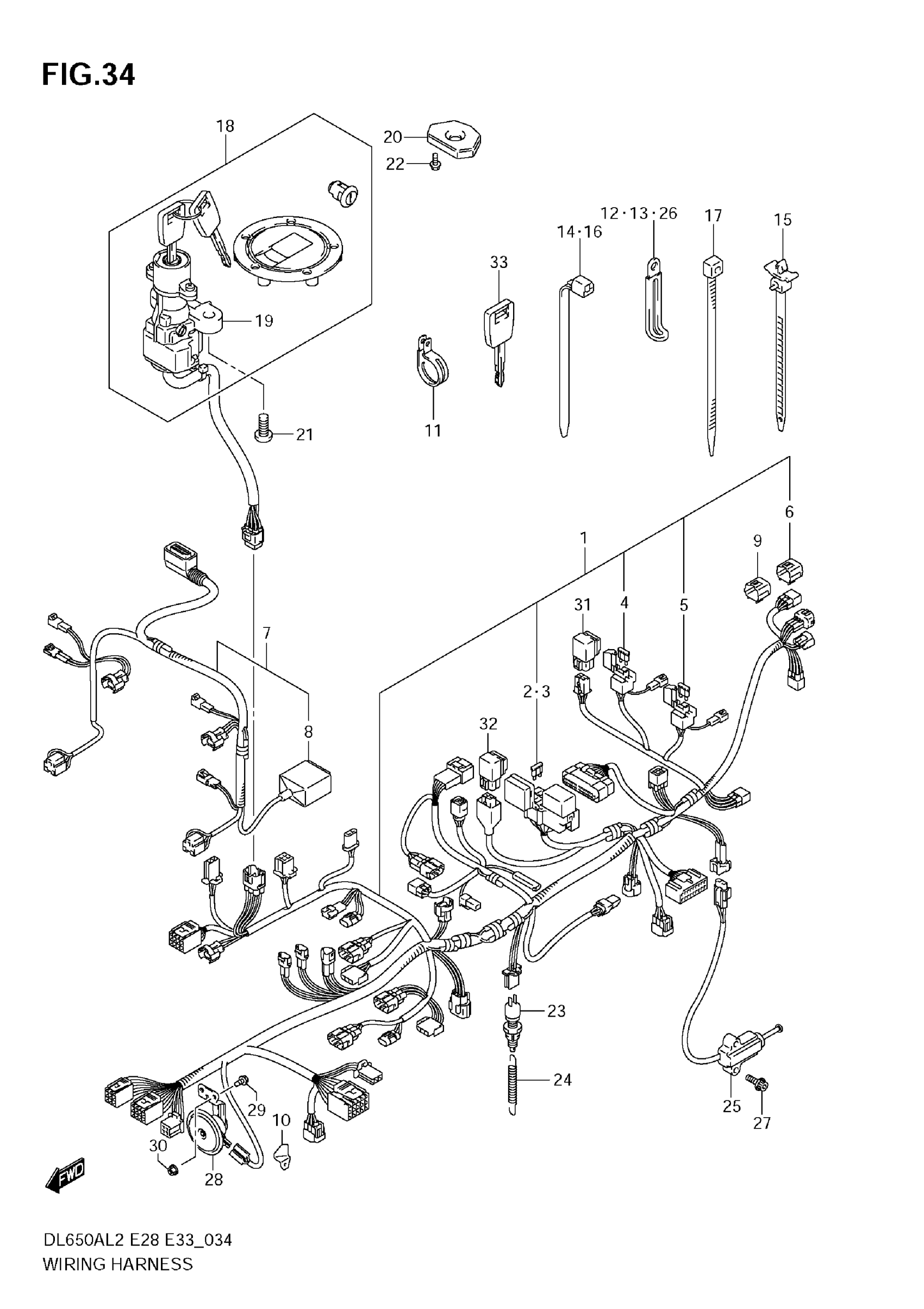

Suzuki DL650AL2 (2012) WIRING HARNESS (E28) Diagram

#

Description
Price

1

HARNESS, WIRING

36610-11J80

Unavailable

2

FUSE (10A)

09481-10501

$2.07

3

FUSE (15A)

09481-15501

$2.07

4

FUSE (15A)

09481-15101

$2.77

5

FUSE (25A)

09481-25103

Unavailable

6

CAP, CO ADJ

36654-06J10

Unavailable

7

HARNESS, WIRING NO.2 This part replaces 36620-11J00.

36620-11J02

$297.35

8

CAP

36618-47H00

$25.10

9

CAP,TS This part replaces 36654-06J00.

36654-06J01

$15.63

10

GUIDE, WIRING HARNESS

36711-11J00

Unavailable

11

CLAMP

09403-26401

Unavailable

12

CLAMP (L:45)

09404-06429

$1.82

13

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.76

14

CLAMP (L:125)

09407-14403

$2.24

15

CLAMP This part replaces 09407-14408.

09407-17402

$4.28

16

CLAMP (L:165)

09407-18402

$2.21

17

CLAMP (L:145)

09407-14407

$2.80

18

LOCK SET This part replaces 37000-11850.

37000-11853

$459.50

19

LOCK ASSY,STEER This part replaces 37100-11J10.

37100-11J12

$241.08

20

COVER,STEERING LOCK This part replaces 37180-15H00.

37180-15HA0

$22.35

21

BOLT (8X20)

09139-08016

$3.04

22

BOLT

01547-0512B

$3.32

23

SWITCH ASSY, STOP LAMP

37740-45D00

$20.62

24

SPRING

09443-06012

$2.90

25

SWITCH ASSY,SIDE STAND This part replaces 37840-06G00.

37840-06G02

$68.13

26

CLAMP (L:45)

09404-06429

$1.82

27

BOLT

01550-0616B

$2.53

28

HORN ASSY

38500-11J00

$94.30

29

BOLT (6X16)

09118-06017

$2.21

30

NUT

08316-1006B

$2.50

31

RELAY ASSY, FUEL PUMP

38740-24X50

$41.38

32

RELAY ASSY, FAN MOTOR

38740-24X50

$41.38

33

KEY, BLANK | OPT

37146-11J00

$57.43
