2006 Suzuki DL650 Wiring Harness Diagram

← All diagrams

Find the part on the Wiring Harness diagram for your 2006 Suzuki DL650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

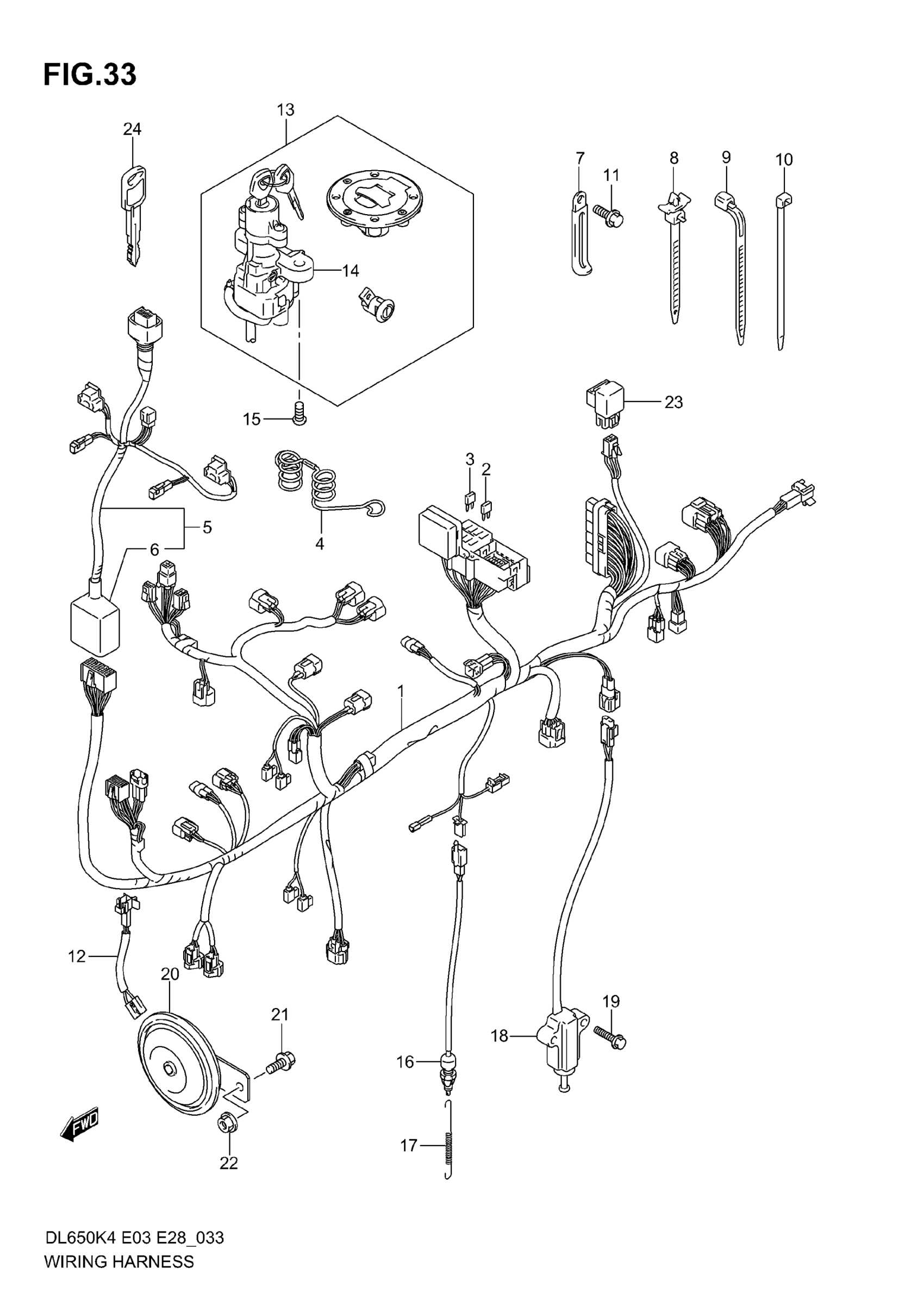

2006 Suzuki DL650 Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS, WIRING, NO.1 | Includes Item(s) 2 - 3

36610-27G30

1
Out of stock

2

FUSE (10A)

09481-10501

2
Out of stock

3

FUSE (15A)

09481-15501

4
Out of stock

4

GUIDE, WIRING HARNESS

36619-06G01

1
Out of stock

5

HARNESS, WIRING, NO.2 | Includes Item(s) 6

36620-27G30

1
Out of stock

6

COVER, CONNECTOR

36618-18G10

1
Out of stock

7

CLAMP (L:45)

09404-06429

1
Out of stock

7

CLAMP This part replaces 09404-06431.

09404-06039

1
Out of stock

8

CLAMP

09407-11402

1
Out of stock

9

CLAMP (L:125)

09407-14403

3
Out of stock

10

CLAMP (L:145)

09407-14407

1
Out of stock

11

BOLT This part replaces 01547-06103.

01547-0610B

1
Out of stock

12

WIRE, HORN LEAD

36852-06G00

1
Out of stock

13

LOCK SET This part replaces 37000-27860.

37000-27862

1
Out of stock

13

LOCK SET | E33; Includes Item(s) 14 This part replaces 37000-27870.

37000-27873

1
Out of stock

14

LOCK ASSY,STEER This part replaces 37100-27G00.

37100-27G01

1
Out of stock

15

BOLT (8X20)

09139-08016

2
Out of stock

16

SWITCH ASSY, STOP LAMP

37740-31D00

1
Out of stock

17

SPRING

09443-06012

1
Out of stock

18

SWITCH ASSY,SIDE STAND This part replaces 37840-06G00.

37840-06G02

1
Out of stock

19

BOLT This part replaces 01550-06163.

01550-0616A

2
Out of stock

20

HORN ASSY

38500-27G00

1
Out of stock

21

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

1
Out of stock

22

NUT This part replaces 08316-10083.

08316-1008B

1
Out of stock

23

RELAY ASSY, FUEL PUMP

38740-24X50

1
Out of stock

24

KEY, BLANK | OPT

37146-33E00

1
Out of stock
