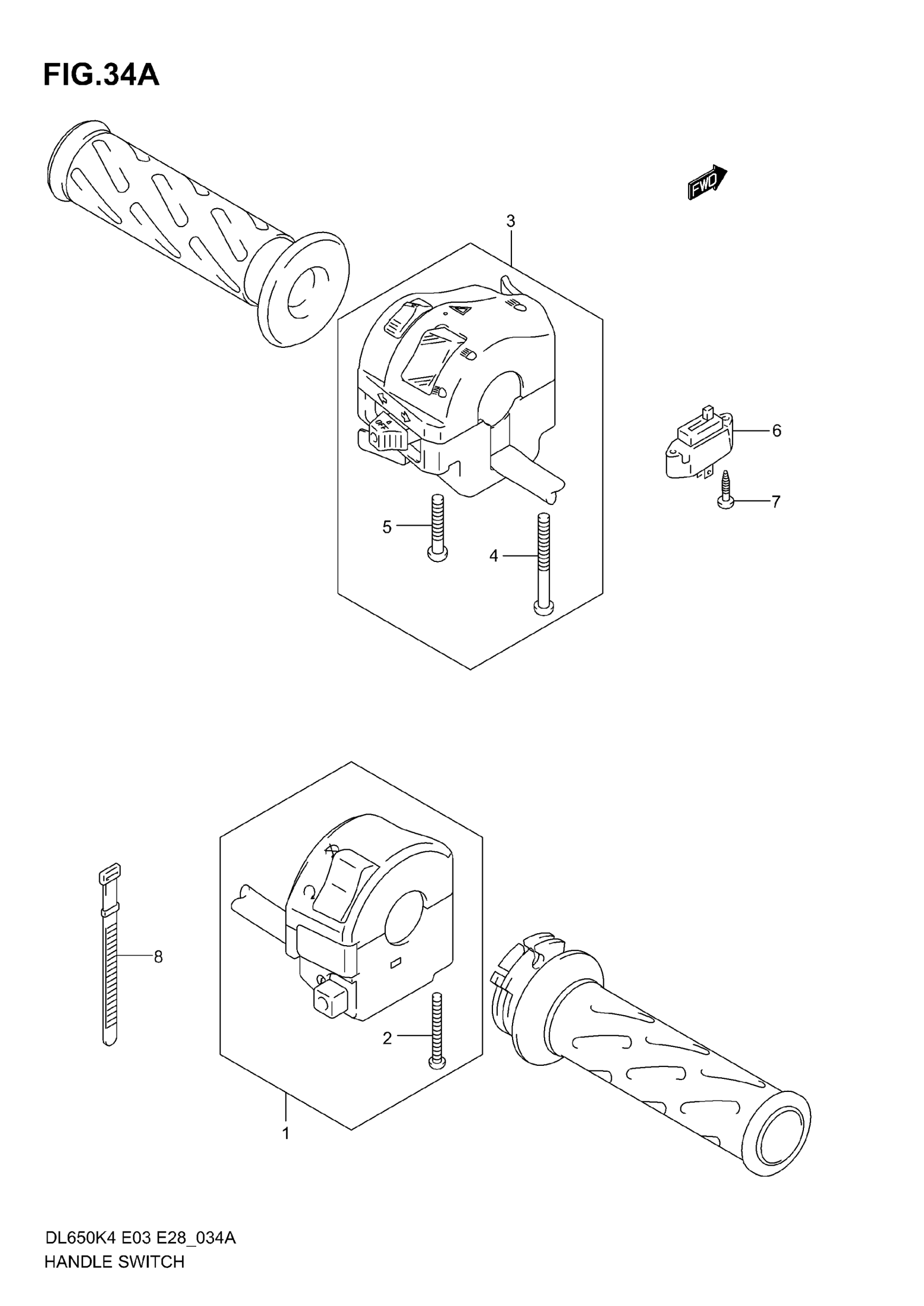

Suzuki DL650 (2006) HANDLE SWITCH (MODEL K5/K6) Diagram

#

Description

Price

1

SWITCH ASSY, HANDLE RH | Includes Item(s) 2

37200-06G80

$196.78

2

.SCREW This part replaces 02112-05453.

02112-0545B

$2.32

3

SWITCH ASSY, HANDLE LH | Includes Item(s) 4 - 5

37400-27G10

Unavailable

4

SCREW This part replaces 02112-05403.

02112-0540B

$2.88

5

SCREW This part replaces 02112-05303.

02112-0530A

$1.93

6

SWITCH ASSY, CLUTCH

37560-31F00

$17.70

7

SCREW (3X14)

09132-03017

$2.27

8

CLAMP (L:120)

09407-12402

$2.82
