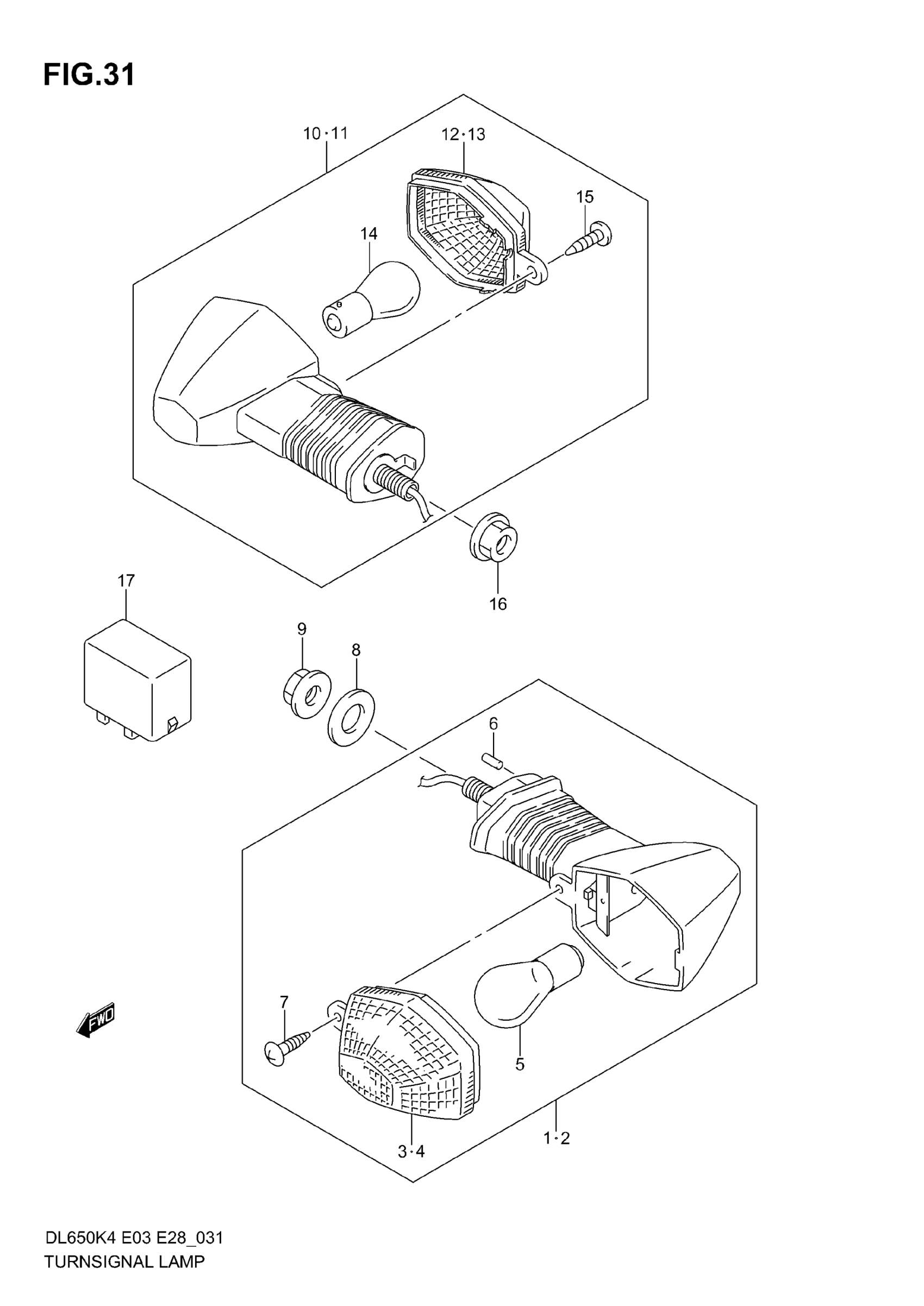

Find the part on the Turnsignal Lamp diagram for your 2006 Suzuki DL650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2006 Suzuki DL650 Turnsignal Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY, FRONT TURNSIGNAL RH

35601-27G00

1
Out of stock

2

LAMP ASSY, FRONT TURNSIGNAL LH | Includes Item(s) 3 - 7

35602-27G00

1
Out of stock

3

LENS, RH

35612-31F30

1
Out of stock

4

LENS, LH

35632-31F30

1
Out of stock

5

BULB (12V,21W)

09471-12045

2
Out of stock

6

PIN

09202-04017

2
Out of stock

7

SCREW This part replaces 03242-04163.

03242-0416B

2
Out of stock

8

WASHER (12.5X30X1.6)

09160-12092

2
Out of stock

9

NUT This part replaces 08316-10123.

08316-1012A

2
Out of stock

10

LAMP ASSY, REAR TURNSIGNAL RH

35603-27G00

1
Out of stock

11

LAMP ASSY. REAR TURNSIGNAL LH | Includes Item(s) 12 - 15

35604-27G00

1
Out of stock

12

LENS, RH

35632-31F30

1
Out of stock

13

LENS, LH

35612-31F30

1
Out of stock

14

BULB (12V,21W)

09471-12045

2
Out of stock

15

SCREW This part replaces 03242-04163.

03242-0416B

2
Out of stock

16

NUT This part replaces 08316-10123.

08316-1012A

2
Out of stock

17

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

1
Out of stock
