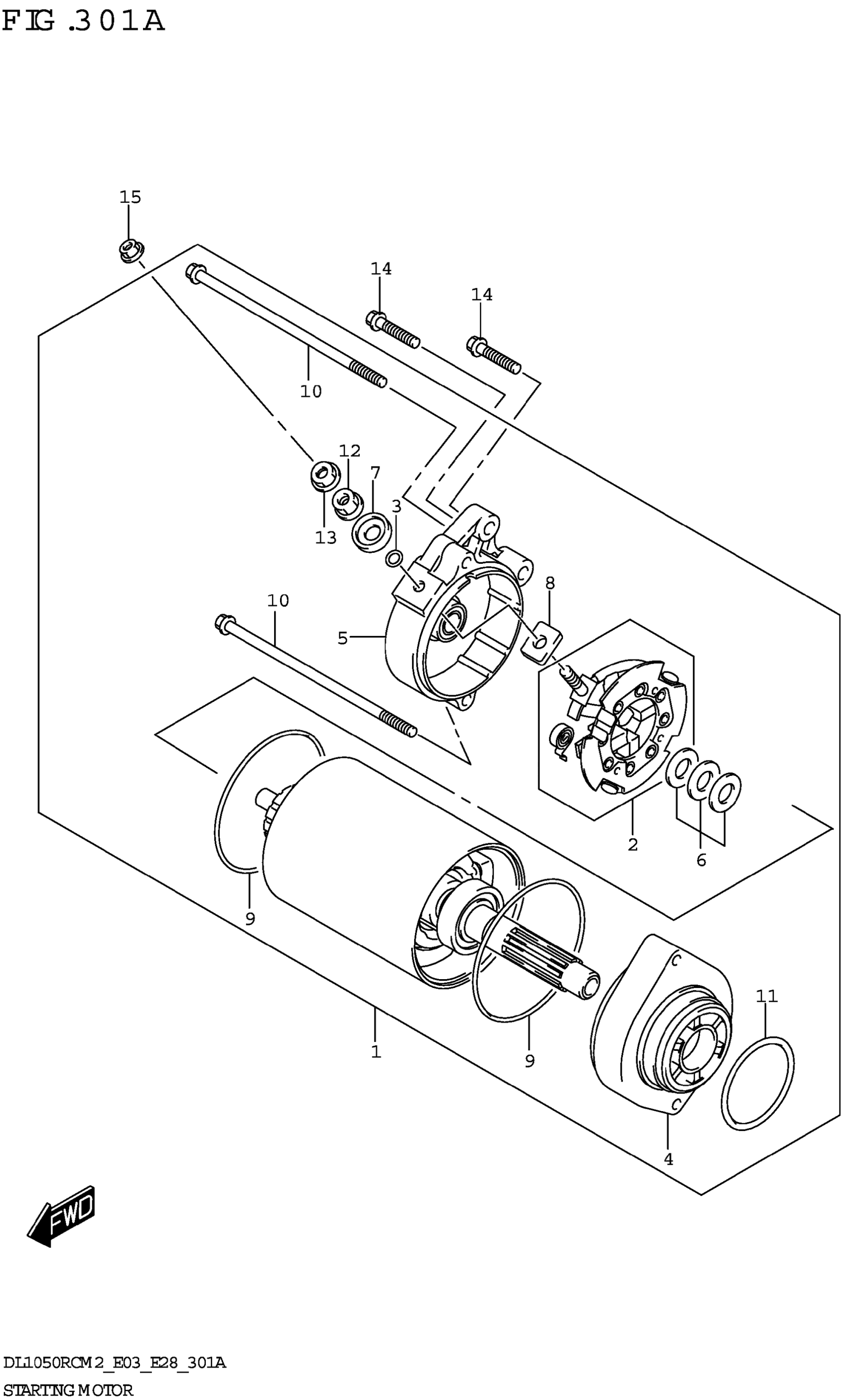

Suzuki DL1050RCM2 (2022) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY,STARTING

31100-06L00

$688.35

2

.HOLDER SET,BRUSH

31132-45C00

$80.57

3

.O-RING

31143-38300

$5.75

4

.HOUSING ASSY

31150-07F10

Unavailable

5

.FRAME

31170-06L00

$118.28

6

.SHIM SET

31170-43400

Unavailable

7

.BUSHING

31172-38300

$5.24

8

.BUSHING

31173-88C00

Unavailable

9

.O-RING

31264-44110

$13.40

10

BOLT This part replaces 31281-24B10.

31281-31D00

$9.77

11

.O RING (D:2.1,ID;34.7)

31156-48B00

$13.57

12

.NUT

08310-00067

$1.83

13

NUT

08361-3506A

$1.81

14

BOLT

01547-0625B

$2.43

15

NUT

08361-3506A

$1.81
