2022 Suzuki DL1050RCM2 Magneto Diagram

← All diagrams

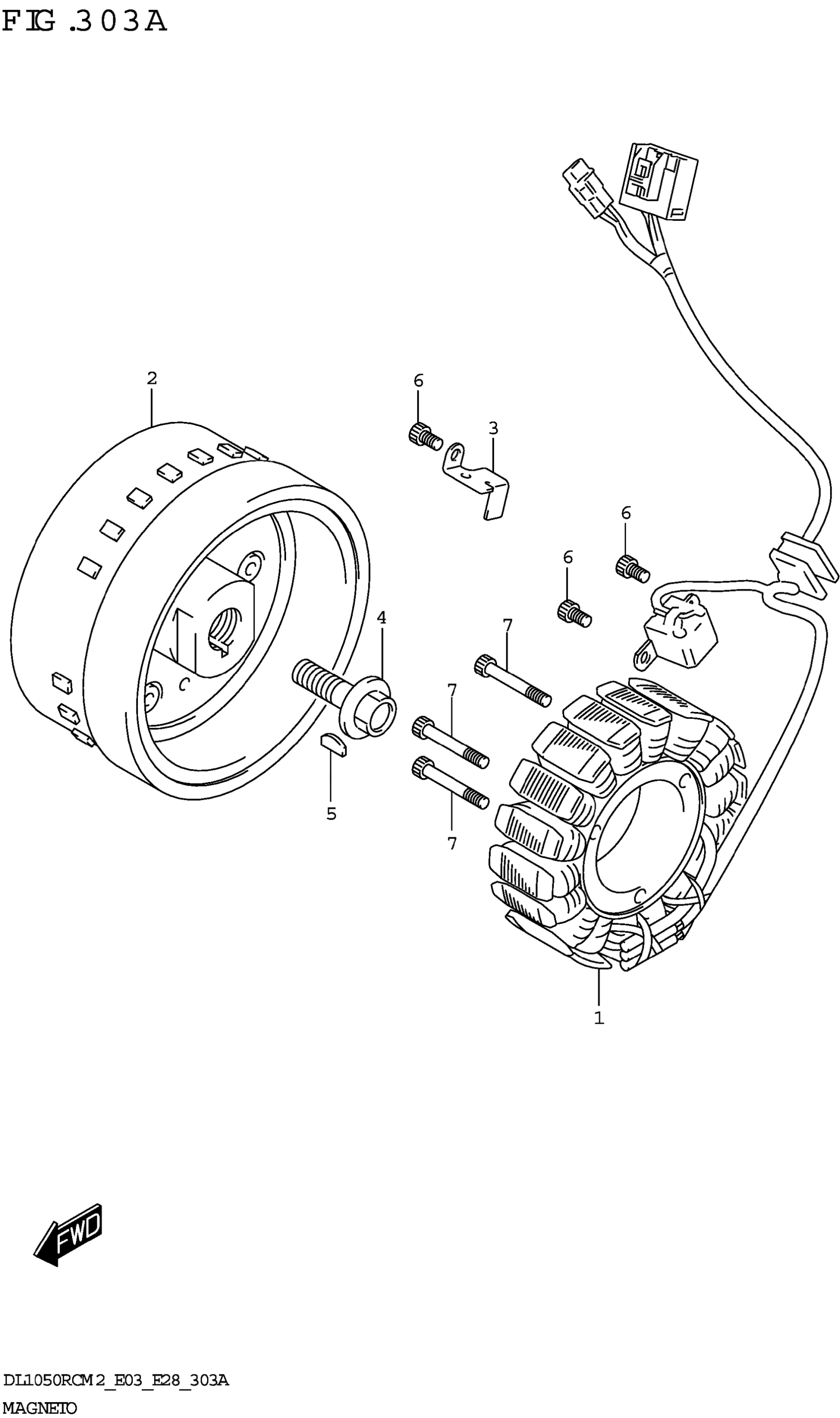

Find the part on the Magneto diagram for your 2022 Suzuki DL1050RCM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Suzuki DL1050RCM2 Magneto Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STATOR ASSY,MAGNETO

32101-06L00

1
Out of stock

2

ROTOR ASSY,MAGNETO

32102-06L00

1
Out of stock

3

CLAMP,GENERATOR LEAD WIRE

32371-13E30

1
Out of stock

4

BOLT (14X43)

09103-14001

1
Out of stock

5

KEY (B:4,D:16,H6.5)

09420-04008

1
Out of stock

6

BOLT

07130-0512A

3
Out of stock

7

BOLT (6X40)

09106-06120

3
Out of stock
