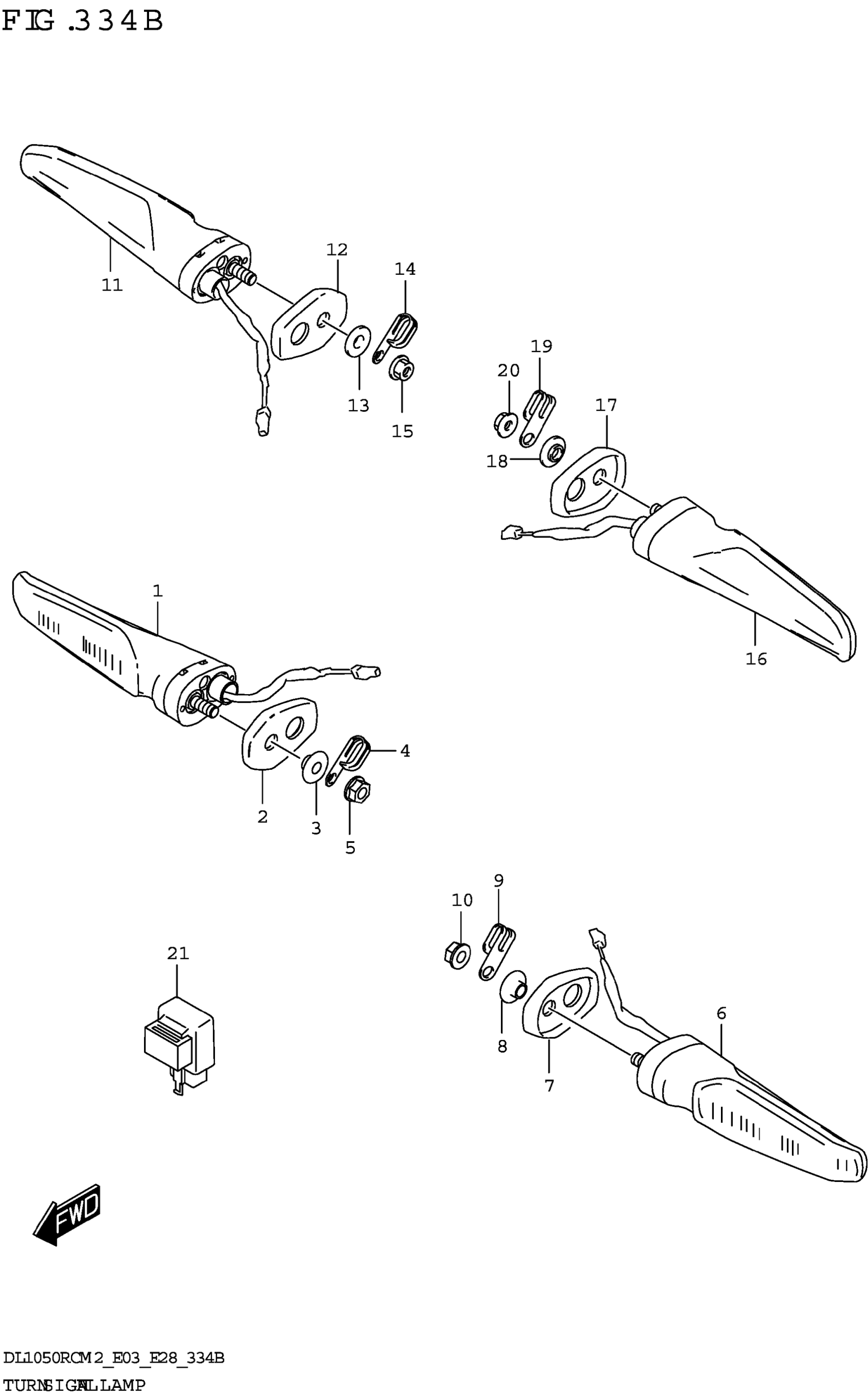

Suzuki DL1050RCM2 (2022) TURNSIGNAL LAMP (DL1050RC) Diagram

#

Description
Price

1

LAMP ASSY,FRONT TURNSIGNAL,R This part replaces 35601-06L01.

35601-06LD1

$170.67

2

CUSHION,TURNSIGNAL

35690-06L00

$10.15

3

WASHER (6.1X17.0X4.8)

09169-06073

$3.08

4

CLAMP (L:45)

09404-06429

$1.82

5

NUT (6X12)

08316-1006A

$2.19

6

LAMP ASSY,FRONT TURNSIGNAL,L This part replaces 35602-06L01.

35602-06LD0

$160.30

7

CUSHION,TURNSIGNAL

35690-06L00

$10.15

8

WASHER (6.1X17.0X4.8)

09169-06073

$3.08

9

CLAMP (L:45)

09404-06429

$1.82

10

NUT (6X12)

08316-1006A

$2.19

11

LAMP ASSY,REAR TURNSIGNAL,R This part replaces 35603-06L01.

35603-06LD0

$170.67

12

CUSHION,TURNSIGNAL

35690-06L00

$10.15

13

WASHER (6.1X17.0X4.8)

09169-06073

$3.08

14

CLAMP (L:45)

09404-06429

$1.82

15

NUT (6X12)

08316-1006A

$2.19

16

LAMP ASSY,REAR TURNSIGNAL LH

35604-06L01

$106.95

17

CUSHION,TURNSIGNAL

35690-06L00

$10.15

18

WASHER (6.1X17.0X4.8)

09169-06073

$3.08

19

CLAMP (L:45)

09404-06429

$1.82

20

NUT (6X12)

08316-1006A

$2.19

21

RELAY ASSY,TURNSIGNAL This part replaces 38610-06L00.

38610-06L01

$81.55
