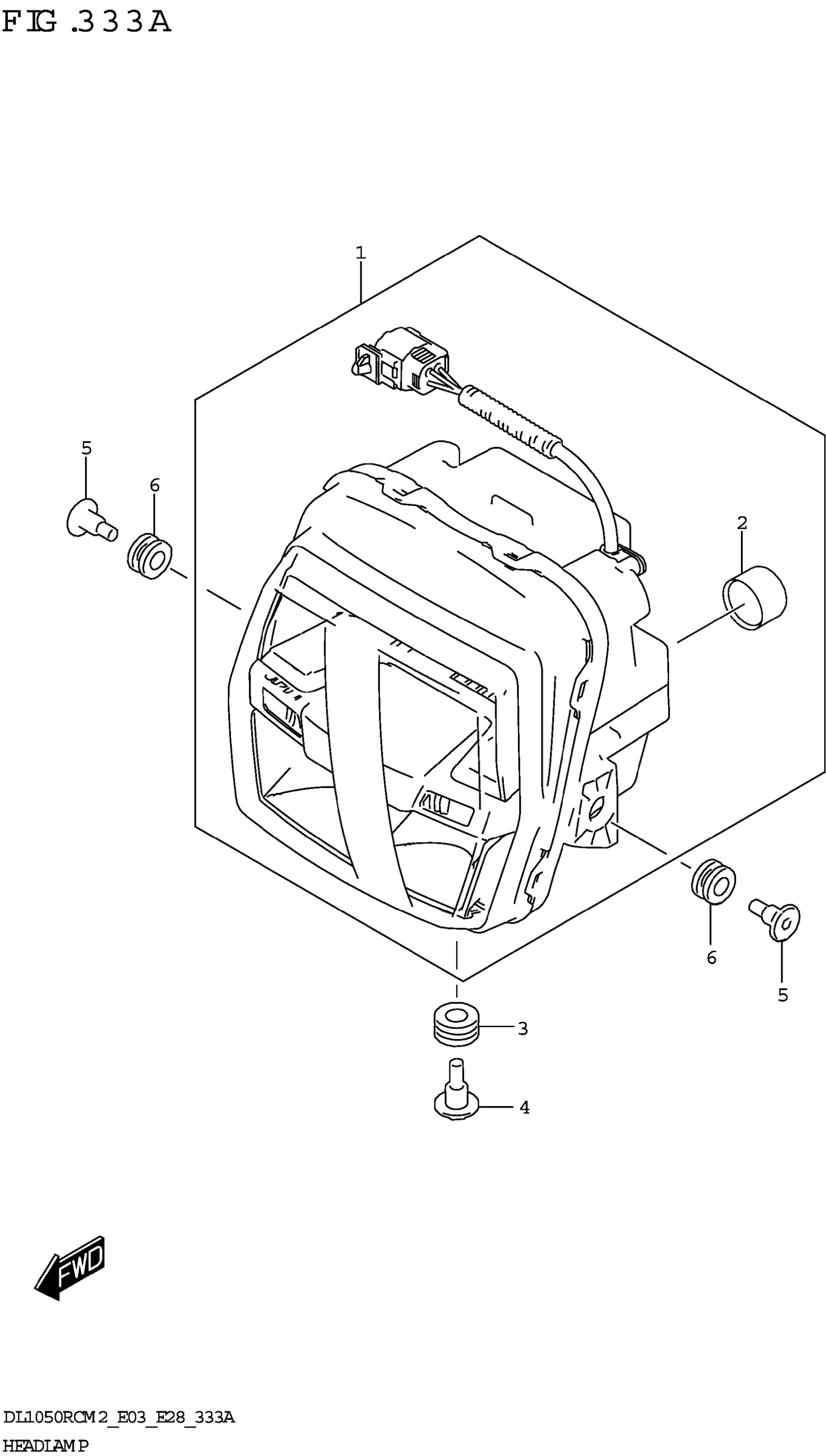

Suzuki DL1050RCM2 (2022) HEADLAMP Diagram

#

Description

Price

1

HEADLAMP ASSY This part replaces 35100-07L11.

35100-07LA0

$982.96

2

.CAP

35529-77R00

$11.22

3

CUSHION (10X20X10)

09320-10078

$3.81

4

BOLT,HEADLAMP

09139-06231

$4.15

5

BOLT,HEADLAMP

09139-06232

$4.15

6

CUSHION (9X18X10)

09320-09501

$2.06
