2022 Suzuki DL1050RCM2 Clutch Diagram

← All diagrams

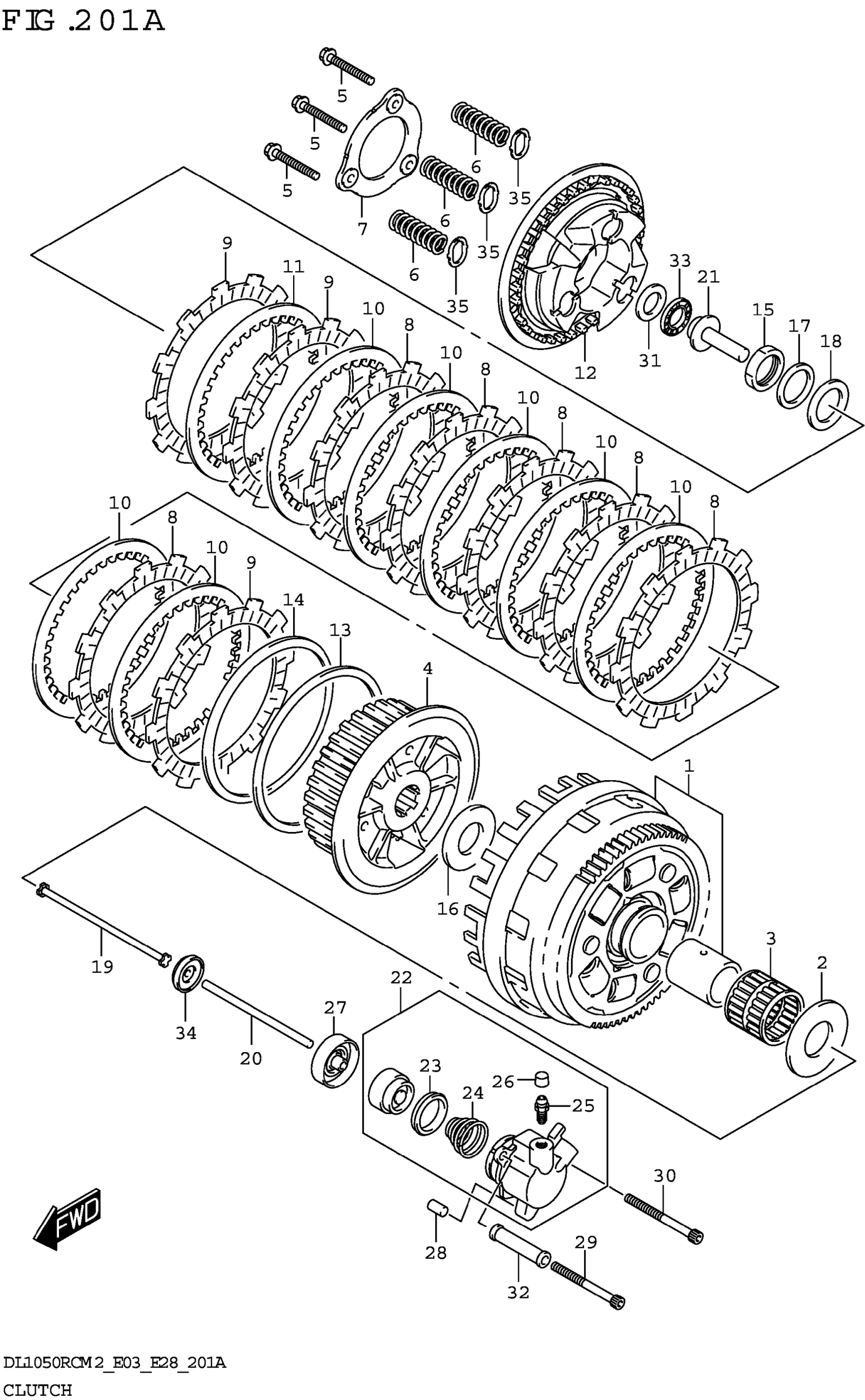

Find the part on the Clutch diagram for your 2022 Suzuki DL1050RCM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Suzuki DL1050RCM2 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR ASSY,PRIMARY DRIVEN

21200-31Y20

1
Out of stock

2

WASHER (25X52X2.5)

09160-25074

1
Out of stock

3

BEARING (35X40X39.8)

09263-35013

1
Out of stock

4

.HUB,CLUTCH SLEEVE

21411-31J10

1
Out of stock

5

.BOLT,CLUTCH SPRING

21412-31J00

3
Out of stock

6

SPRING,CLUTCH

21413-31J00

3
Out of stock

7

.PLATE,STOPPER

21414-31J00

1
Out of stock

8

PLATE,CLUTCH DRIVE NO.1 (T:3. | )

21441-31J00

6
Out of stock

9

.PLATE,CLUTCH DRIVE NO.2 (T:3 | )

21442-31J00

3
Out of stock

10

.PLATE,CLUTCH DRIVEN NO.1 (T:

21451-24F00

7
Out of stock

11

.PLATE,CLUTCH DRIVEN NO.2 (T: | 0)

21452-31J00

1
Out of stock

12

.DISC,CLUTCH PRESSURE

21462-31J10

1
Out of stock

13

.SEAT,WAVE WASHER

21471-24F00

1
Out of stock

14

.WASHER,CLUTCH PLATE WAVE

21472-24F00

1
Out of stock

15

NUT

09159-24010

1
Out of stock

16

.WASHER (25X50X2.5)

09160-25056

1
Out of stock

17

WASHER (24.2X35X2.7)

09164-24008

1
Out of stock

18

SHIM (25X38X1)

09181-25223

1
Out of stock

19

ROD,CLUTCH (L:161)

23110-27A00

1
Out of stock

20

ROD,CLUTCH PUSH,L (L:132.5)

23111-26D00

1
Out of stock

21

PIECE,CLUTCH PUSH

23121-31E00

1
Out of stock

22

CYLINDER,CLUTCH RELEASE

23160-06G21

1
Out of stock

23

.CUP

23163-06B00

1
Out of stock

24

.SPRING

23164-05A00

1
Out of stock

25

.BLEEDER

59121-01A00

1
Out of stock

26

.CAP,BLEEDER

59122-01A00

1
Out of stock

27

COVER,DUST

23166-06G10

1
Out of stock

28

PIN

04221-08149

1
Out of stock

29

BOLT

07130-0665B

1
Out of stock

30

BOLT

07130-0670B

1

$3.79

In stock

31

WASHER (15.5X28X1)

09160-15045

1
Out of stock

32

SPACER,CL RLSE CYL

23171-06G00

1
Out of stock

33

BEARING (15X28X2)

09263-15003

1
Out of stock

34

SEAL,OIL (6X34X10.5)

09283-06008

1
Out of stock

35

.SEAT,CLUTCH SPRING

21415-31J00

3
Out of stock
