2022 Suzuki DL1050RCM2 Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 2022 Suzuki DL1050RCM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

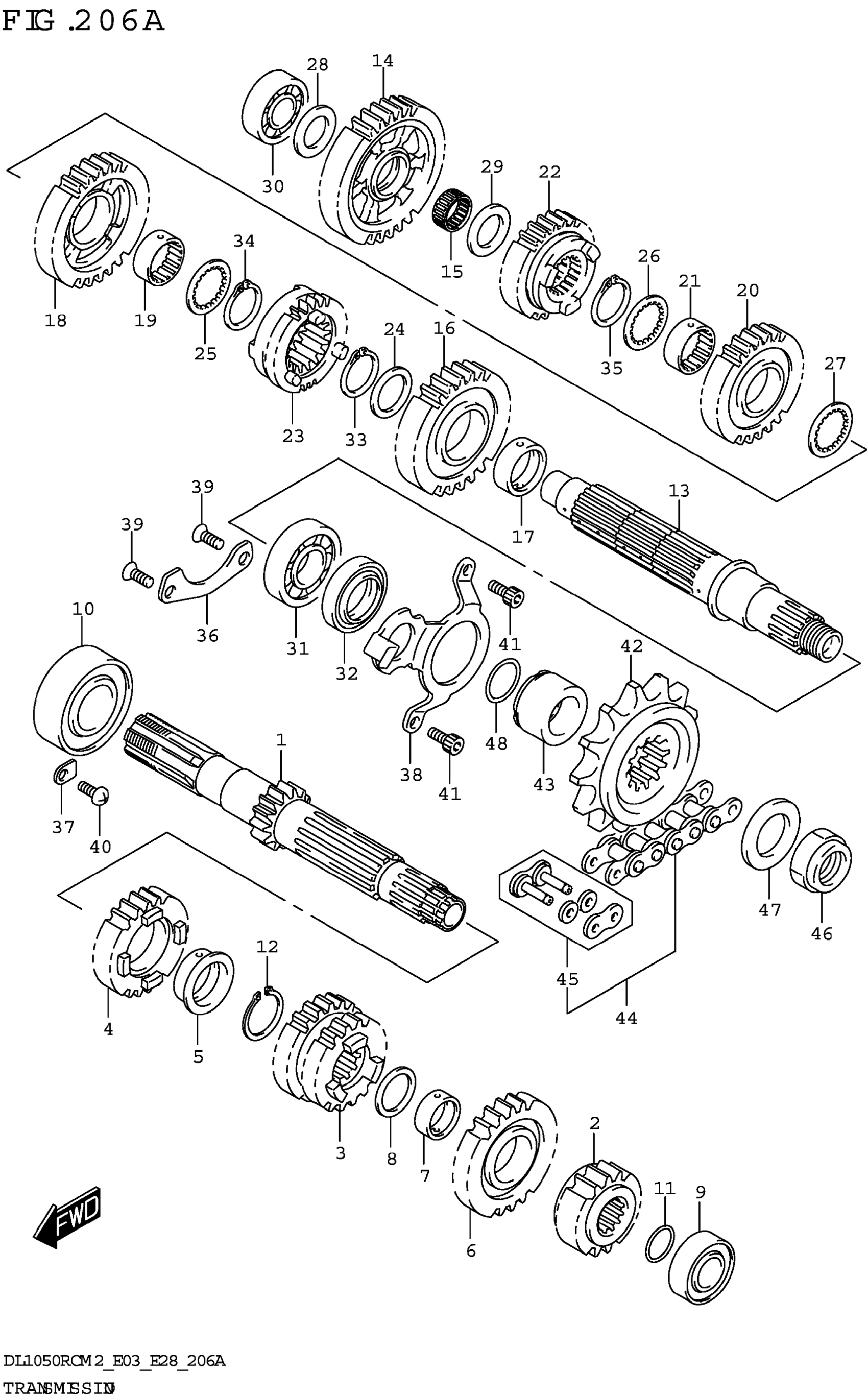

2022 Suzuki DL1050RCM2 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT,COUNTER (NT:12)

24120-06G00

1
Out of stock

2

GEAR,2ND DRIVE (NT:15)

24221-02F01

1
Out of stock

3

GEAR,3RD & 4TH DRIVE (NT:18/2 | )

24231-02F30

1
Out of stock

4

GEAR,5TH DRIVE (NT:23)

24251-02F11

1
Out of stock

5

BUSH,5TH DRIVE GEAR

24252-02F10

1
Out of stock

6

GEAR,6TH DRIVE (NT:24)

24261-02F20

1
Out of stock

7

BUSH,6TH DRIVE GEAR

24262-02F00

1
Out of stock

8

SHIM (22X30X1.0)

09181-22167

1
Out of stock

9

BEARING (20X47X14)

09262-20139

1
Out of stock

10

BEARING (25X62X17)

09262-25073

1
Out of stock

11

O-RING (D:1.9,ID:16.6)

09280-17004

1
Out of stock

12

CIRCLIP

09380-27001

1
Out of stock

13

SHAFT,DRIVE

24130-02F30

1
Out of stock

14

GEAR,1ST DRIVEN (NT:36)

24311-06G00

1
Out of stock

15

BEARING (22X26X11)

09263-22068

1
Out of stock

16

GEAR,2ND DRIVEN (NT:29)

24321-02F11

1
Out of stock

17

BUSH,2ND DRIVEN GEAR

24322-02F01

1
Out of stock

18

GEAR,3RD DRIVEN (NT:27)

24331-02F20

1
Out of stock

19

BUSH,3RD DRIVEN GEAR

24332-17E20

1
Out of stock

20

GEAR,4TH DRIVEN

24341-02F30

1
Out of stock

21

BUSH,3RD DRIVEN GEAR

24332-17E20

1
Out of stock

22

1

$138.77

In stock

23

GEAR,6TH DRIVEN (NT:24)

24361-02F30

1
Out of stock

24

WASHER (27X36X1.0)

09160-27008

1
Out of stock

25

WASHER,3RD & 4TH DRIVEN

24333-02F00

1
Out of stock

26

WASHER,3RD & 4TH DRIVEN

24333-02F00

1
Out of stock

27

1

$7.93

In stock

28

SHIM (20X34X1)

09181-20251

1
Out of stock

29

SHIM (22X34X1)

09181-22223

1
Out of stock

30

BEARING (20X52X15)

09262-20082

1

$33.28

In stock

31

BEARING (28X68X18)

09262-28053

1

$106.73

In stock

32

OIL SEAL (38X52X8)

09283-38028

1

$25.43

In stock

33

CIRCLIP

09380-27001

1
Out of stock

34

CIRCLIP

09380-27001

1
Out of stock

35

CIRCLIP

09380-27001

1
Out of stock

36

1

$9.08

In stock

37

RETAINER

24741-21A00

1
Out of stock

38

1

$12.59

In stock

39

SCREW (6X12)

09126-06011

2
Out of stock

40

SCREW

02112-0612A

1
Out of stock

41

BOLT

07130-0612A

2
Out of stock

42

1

$53.97

In stock

43

1

$41.37

In stock

44

CHAIN,DRIVE (RK525SMOZ8)

27600-06G40-120

1

$230.85

In stock

45

1

$23.82

In stock

46

NUT

09159-20004

1

$15.18

In stock

47

WASHER (25X41X3)

09160-25009

1

$5.20

In stock

48

O-RING (D:2.4,ID:23.7)

09280-24010

1
Out of stock
