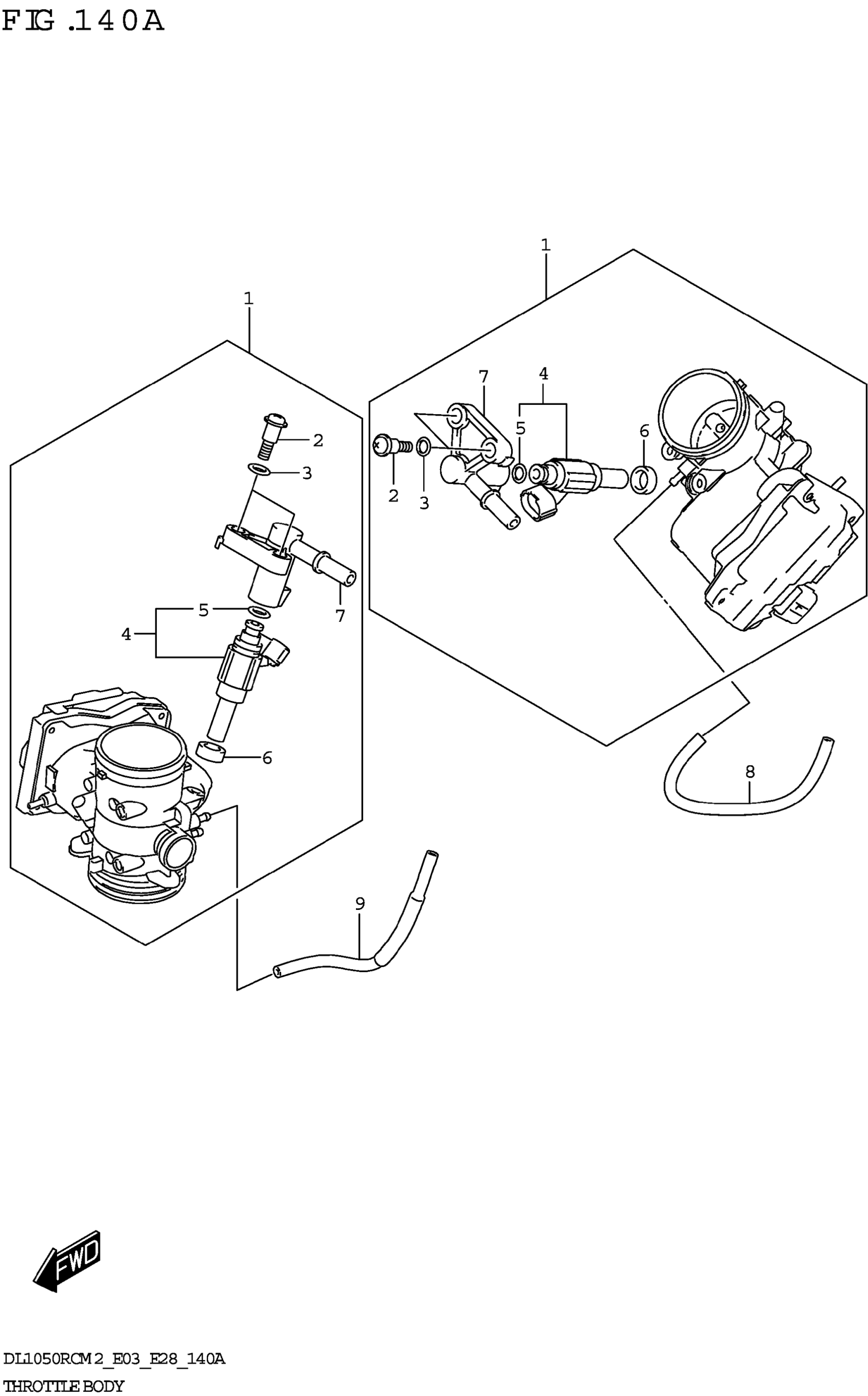

Find the part on the Throttle Body diagram for your 2022 Suzuki DL1050RCM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Suzuki DL1050RCM2 Throttle Body Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY ASSY,THROTTLE

13400-06L00

2
Out of stock

2

SCREW

13601-11J00

4
Out of stock

3

PACKING

13602-29G01

4
Out of stock

4

.INJECTOR ASSY

15710-31J00

2
Out of stock

5

.O-RING

15717-58B00

2
Out of stock

6

SEAL

15722-14J00

2
Out of stock

7

.DELIVERY PIPE

13471-06L00

2
Out of stock

8

HOSE,VACUUM

13683-06L00

1
Out of stock

9

HOSE,VACUUM

13683-06L10

1
Out of stock
