2009 Suzuki DL1000 Wiring Harness Diagram

← All diagrams

Find the part on the Wiring Harness diagram for your 2009 Suzuki DL1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

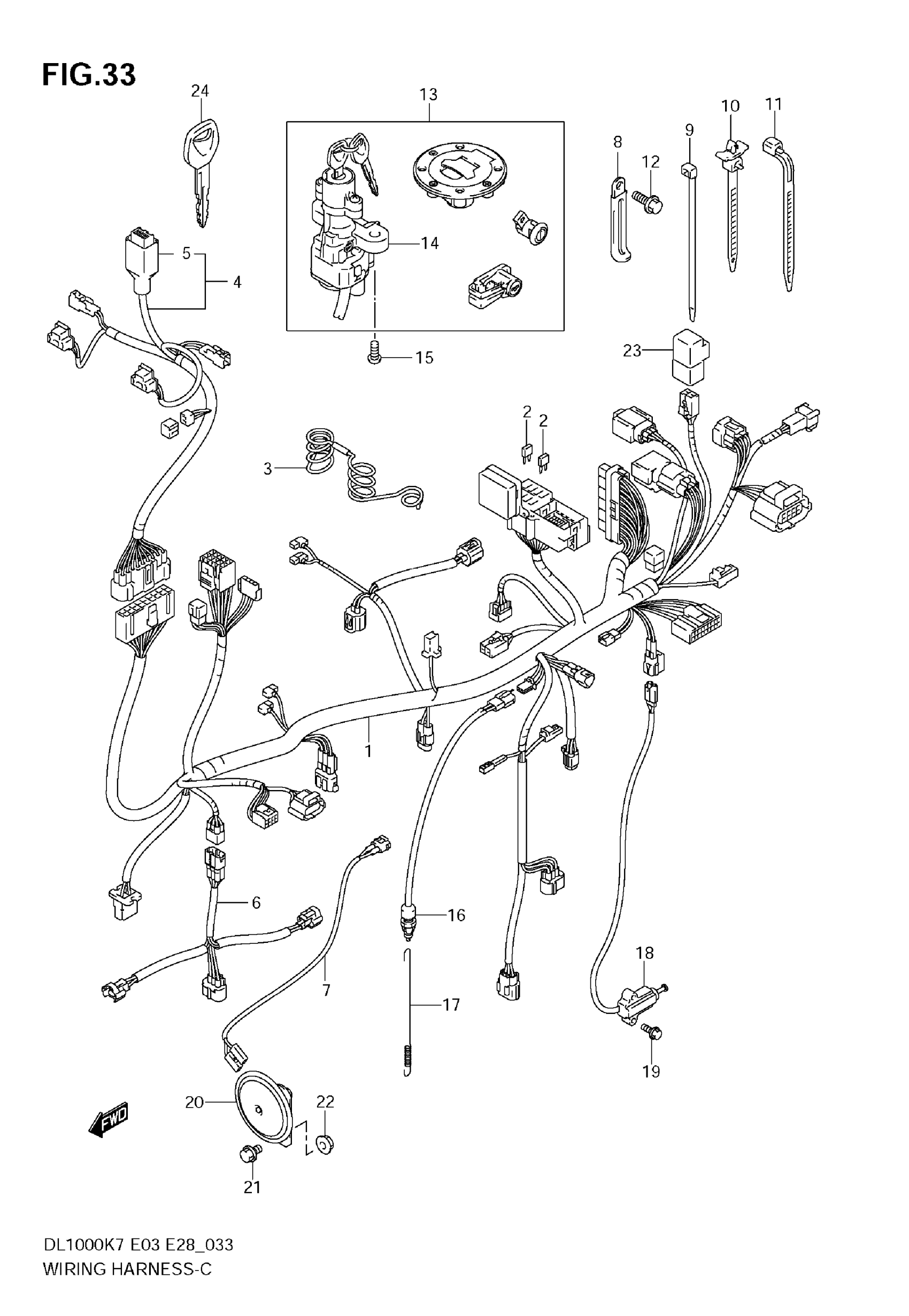

2009 Suzuki DL1000 Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS, WIRING NO.1 | Includes Item(s) 2 - 2

36610-06G70

1
Out of stock

2

FUSE (10A)

09481-10501

2
Out of stock

2

FUSE (15A)

09481-15501

4
Out of stock

3

GUIDE, WIRING HARNESS

36619-06G01

1

$22.08

In stock

4

HARNESS, WIRING NO.2 | Includes Item(s) 5

36620-27G30

1
Out of stock

5

COVER, SPEEDOMETER

36618-18G10

1
Out of stock

6

WIRE, INJECTOR LEAD

36859-06G00

1
Out of stock

7

WIRE, HORN LEAD

36852-06G00

1

$19.68

In stock

8

CLAMP (L:45)

09404-06429

1
Out of stock

8

1

$1.89

In stock

9

CLAMP (L:145)

09407-14407

1
Out of stock

10

CLAMP (L:150)

09407-17402

1

$4.28

In stock

11

CLAMP (L:95)

09407-11401

1
Out of stock

11

CLAMP (L:125)

09407-14403

2
Out of stock

12

BOLT

01547-0610B

1
Out of stock

13

1

$491.88

In stock

13

LOCK SET | E33; Includes Item(s) 14

37000-06870

1
Out of stock

14

1

$220.20

In stock

15

SCREW (8X20)

09139-08016

2
Out of stock

16

1

$20.62

In stock

17

SPRING, STOP LAMP

43259-06G00

1
Out of stock

19

BOLT

01550-0616B

2
Out of stock

20

HORN ASSY

38500-41F00

1

$98.98

In stock

21

BOLT

01550-0812B

1
Out of stock

22

NUT

08316-1008B

1

$2.85

In stock

23

RELAY ASSY, FUEL PUMP

38740-24X50

1
Out of stock

24

KEY, BLANK | OPT

37146-33E00

1

$21.15

In stock
