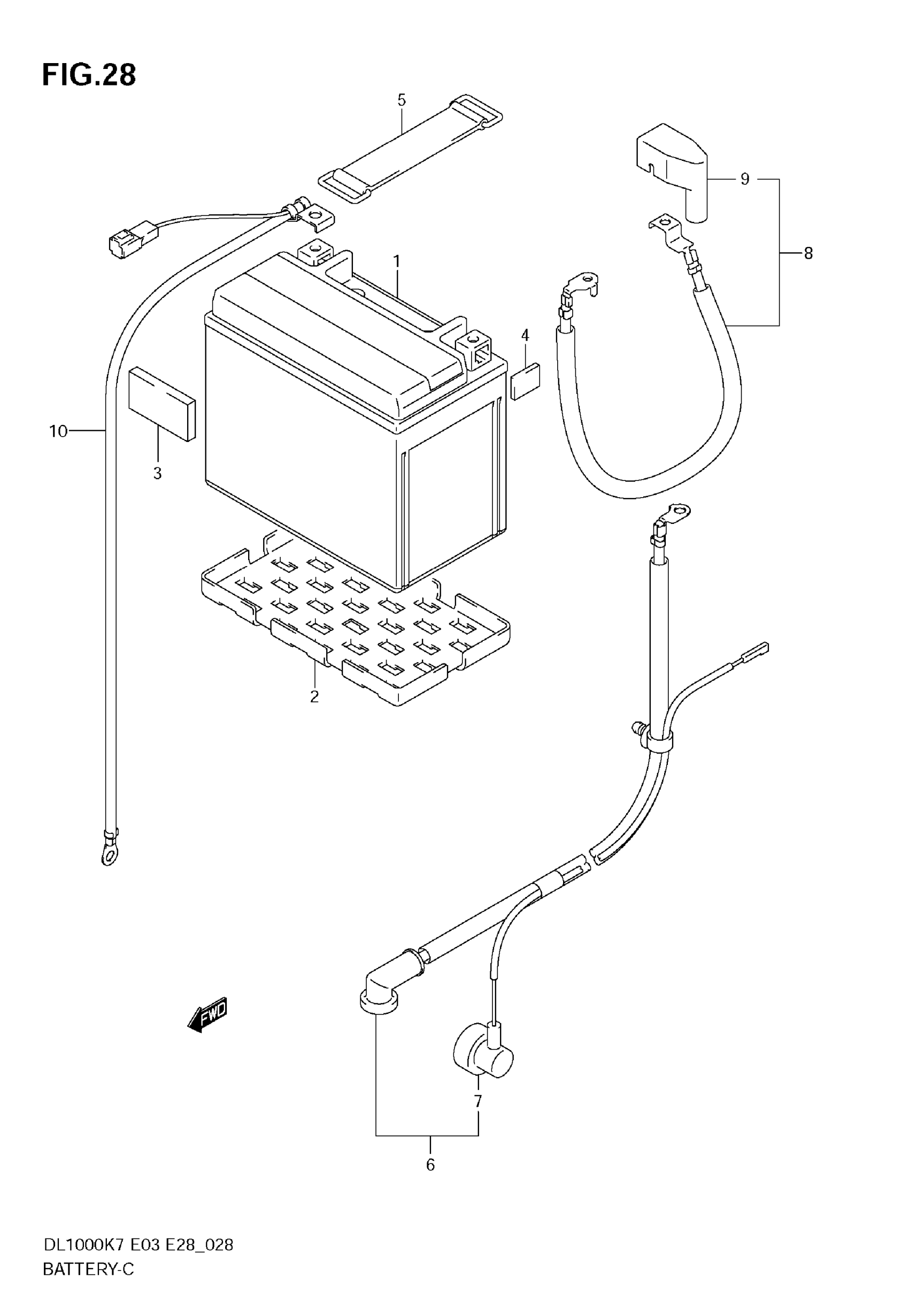

Suzuki DL1000 (2009) BATTERY Diagram

#

Description

Price

1

BATTERY ASSY | YTX14-BS,12V12AH This part replaces 33610-26D10.

33610-38F02

$131.02

2

PROTECTOR,BATTERY

33652-16G00

$13.50

3

CUSHION, REAR FENDER REAR | CUT AS REQUIRED (20X45) This part replaces 33652-08420.

33651-37000

$4.28

4

PROTECTOR, BATTERY (170X95X3) | CUT AS REQUIRED (12X20)

33651-37000

$4.28

5

BAND, BATTERY

09462-00007

$3.82

6

WIRE, STARTER MOTOR LEAD | Includes Item(s) 7

33810-06G10

Unavailable

7

CAP, OIL PRESSURE

36618-43410

$3.28

8

WIRE, BATTERY PLUS LEAD | Includes Item(s) 9

33820-06G00

Unavailable

9

.CAP, BATTERY PLUS LEAD (+)

33624-27G00

$11.18

10

WIRE, BATTERY MINUS

33860-06G00

Unavailable
