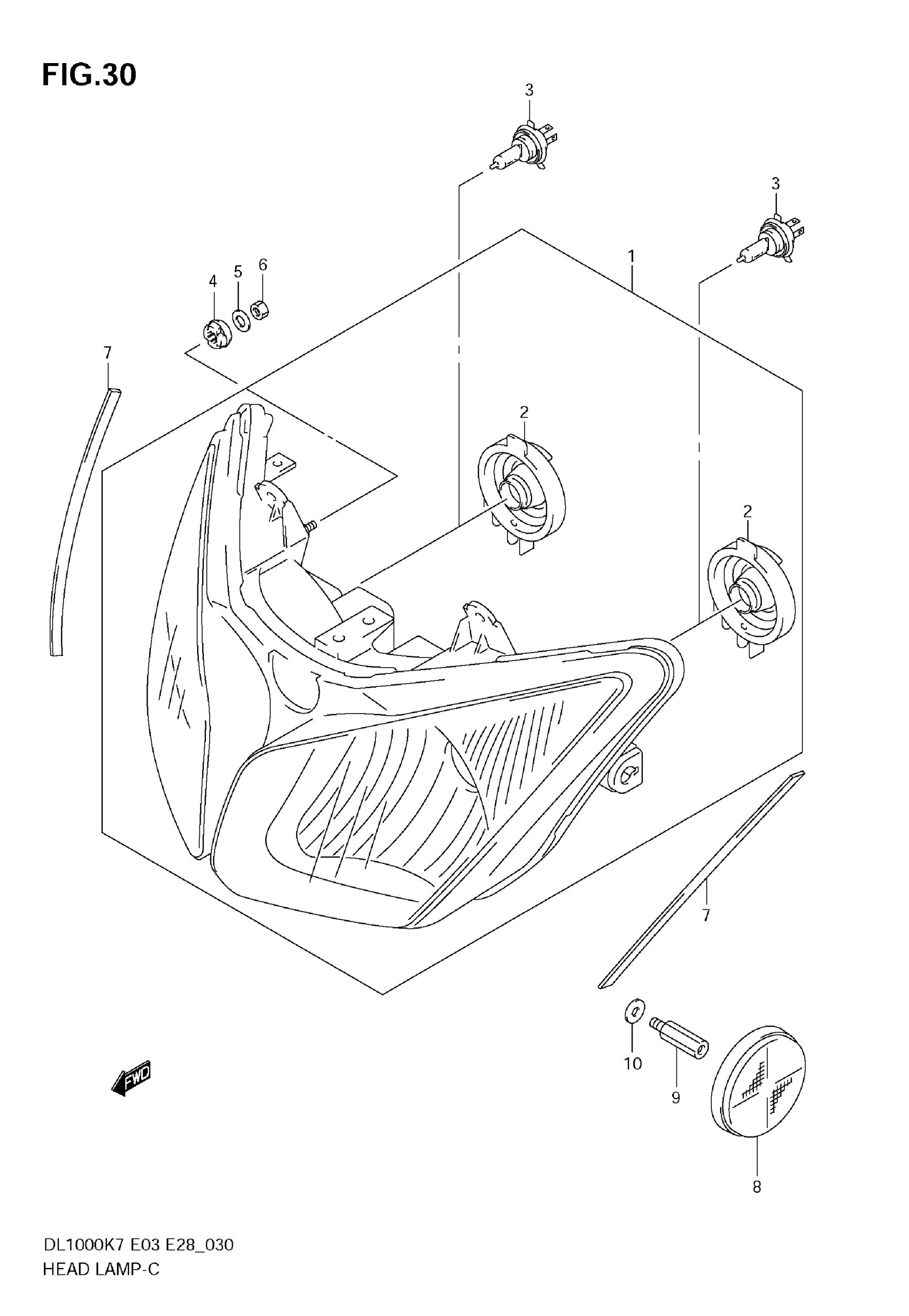

Suzuki DL1000 (2009) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | Includes Item(s) 2

35100-06G30-999

$623.52

2

SOCKET, COVER

35125-77A00

$12.94

3

BULB (12V,60/55W,H4)

09471-12182

$83.77

4

CUSHION

09320-09010

$2.80

5

.WASHER (6.5X20X1.6)

09160-06088

$1.67

6

NUT

08310-0006B

$2.37

7

CUSHION, HEADLAMP | 8X220X2.0

33652-06G10

$4.18

8

REFLEX REFLECTOR ASSY, FR SID This part replaces 35950-14A10.

35950-14A11

$13.94

9

BOLT (5X10)

09119-05023

$13.80

10

WASHER

08322-0105B

$2.24
