2006 Suzuki DL1000 Tail Lamp Diagram

← All diagrams

Find the part on the Tail Lamp diagram for your 2006 Suzuki DL1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

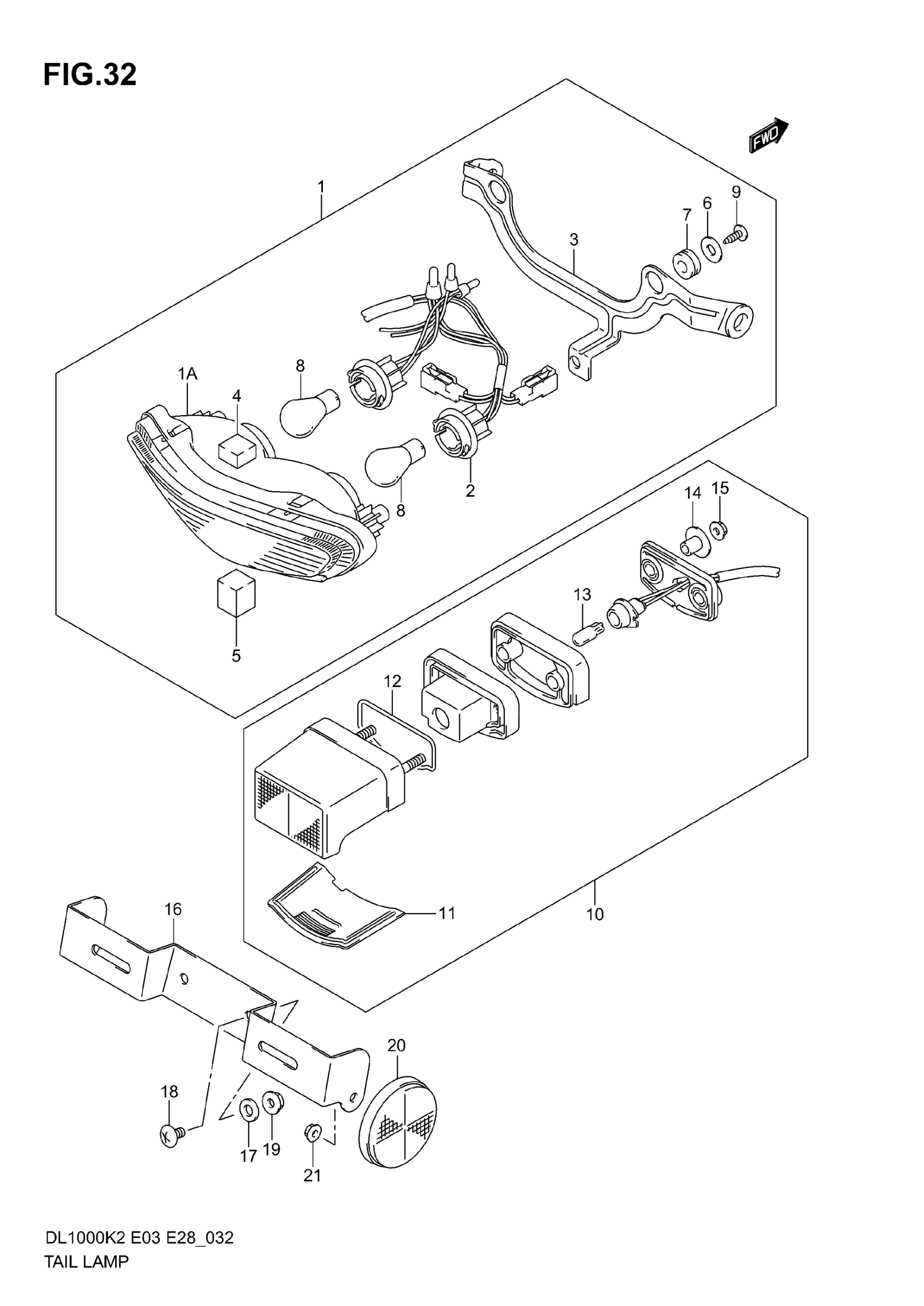

2006 Suzuki DL1000 Tail Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY, REAR COMBINATION | Includes Item(s) 1A - 9

35710-06G30

1
Out of stock

1A

UNIT | COLOR : RED

35720-06G30

1
Out of stock

2

SOCKET & CORD

35718-06G00

1
Out of stock

3

BRACKET

35726-06G00

1
Out of stock

4

CUSHION, UPPER (20X20X12)

35734-06G00

1
Out of stock

5

CUSHION, LOWER (20X20X25)

35739-06G00

1
Out of stock

6

WASHER (5.5X20X1.2)

09160-05501

2
Out of stock

7

CUSHION

09320-10049

2
Out of stock

8

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

1
Out of stock

9

SCREW, BRACKET This part replaces 03242-05163.

03241-0516A

2
Out of stock

10

LAMP ASSY, LICENSE | Includes Item(s) 11 - 15 This part replaces 35910-06G30.

35910-06G31

1
Out of stock

11

LENS

35912-08F00

1
Out of stock

12

GASKET

35913-08F00

1
Out of stock

13

.BULB (12V5W) This part replaces 09471-12081.

09471-12216

1
Out of stock

14

SPACER

35766-08F00

2
Out of stock

15

NUT This part replaces 08316-20063.

08316-2006A

2
Out of stock

16

BRACKET, LICENSE PLATE

35927-06G00

1
Out of stock

17

WASHER (6.5X15X1.60)

09160-06128

2
Out of stock

18

SCREW This part replaces 02142-06123.

02142-0612A

2
Out of stock

19

NUT This part replaces 08316-10063.

08316-1006B

2
Out of stock

20

REFLECTOR ASSY, RR SIDE

35970-14A20

2
Out of stock

21

NUT This part replaces 08316-10053.

08316-1005A

2
Out of stock
