Description

Price

1

NO DESCRIPTION AVAILABLE | MODEL K2/K3/K4 This part replaces 61000-06G00.

61000-06G01

Unavailable

1

SWINGARM ASSY,R | MODEL K5/K6; Includes Item(s) 2 - 4 This part replaces 61000-06G10-YAP.

61000-06G20-YAP

$2,247.35

2

SPACER, REAR SWINGING ARM

09180-20118

$26.47

3

BEARING (25X33X35) This part replaces 09263-25059.

09263-25073

$28.89

4

.BEARING (17X24X25) This part replaces 09263-17037.

09263-17053

$20.23

5

SPACER,PIVOT BEARING

61251-31E00

$66.87

6

SHAFT, RR SWINGINGARM PIVOT

61211-06G00

Unavailable

7

NUT, RR SWGARM PIVOT BOLT This part replaces 61214-19F00.

61214-19F10

$24.17

8

NUT This part replaces 08319-31188.

08319-3118A

$26.62

9

BUFFER,CHAIN TO This part replaces 61273-06G00.

61273-06G01

$43.73

10

BOLT (6X20)

09116-06152

$2.21

11

SPACER (6.5X9X5)

09180-06306

$2.13

12

WASHER,CHAIN AD This part replaces 61446-17E10.

61446-17E11

$40.38

13

WASHER,CHAIN AD This part replaces 61446-27C20.

61446-27C21

$42.45

14

BOLT (8X50)

09100-08287

$2.88

15

NUT This part replaces 08316-10083.

08316-1008B

$2.74

16

CASE, CHAIN

61310-34E00

$106.90

17

SCREW

09139-06083

$2.31

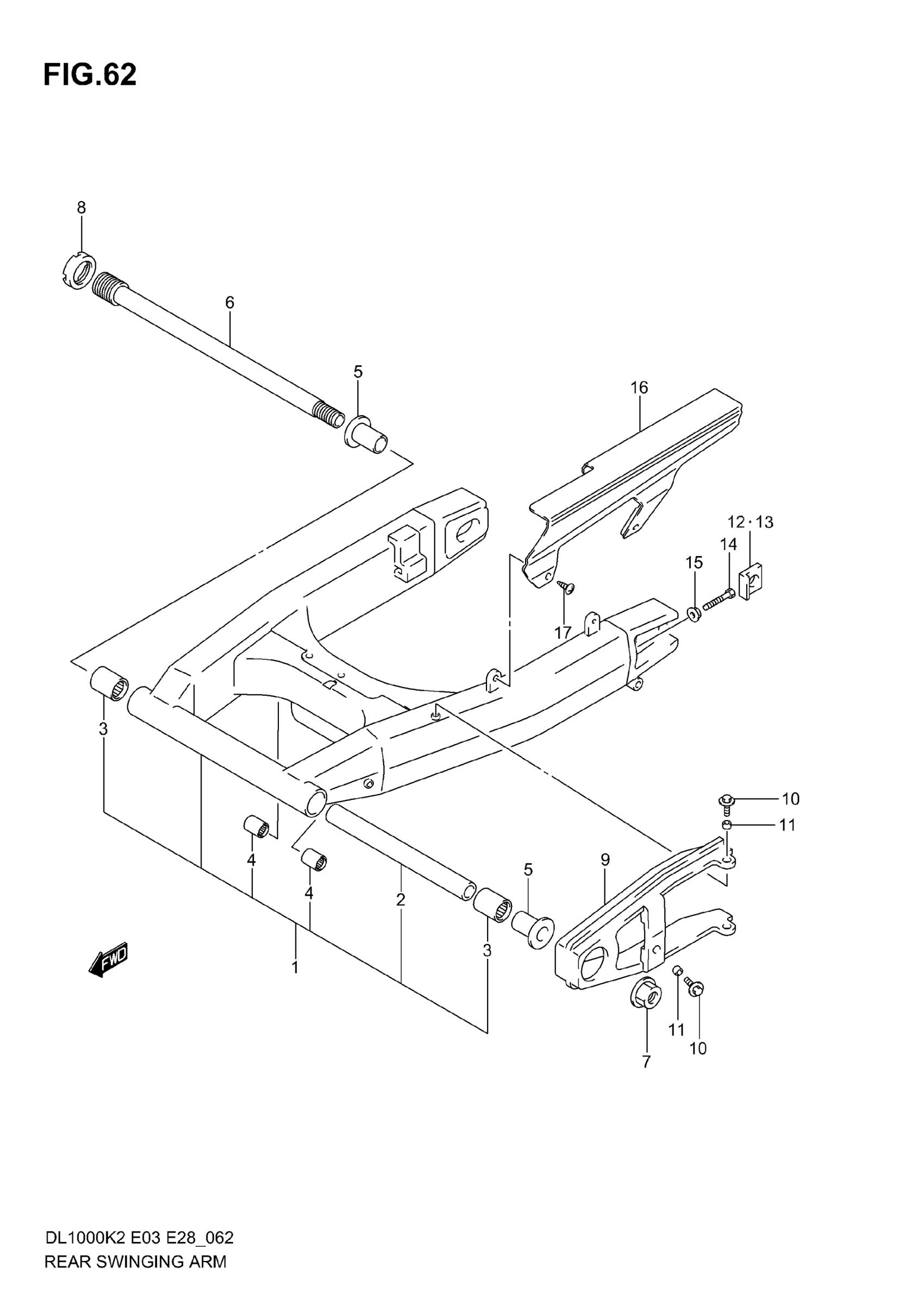

Suzuki DL1000 (2006) REAR SWINGING ARM Diagram
