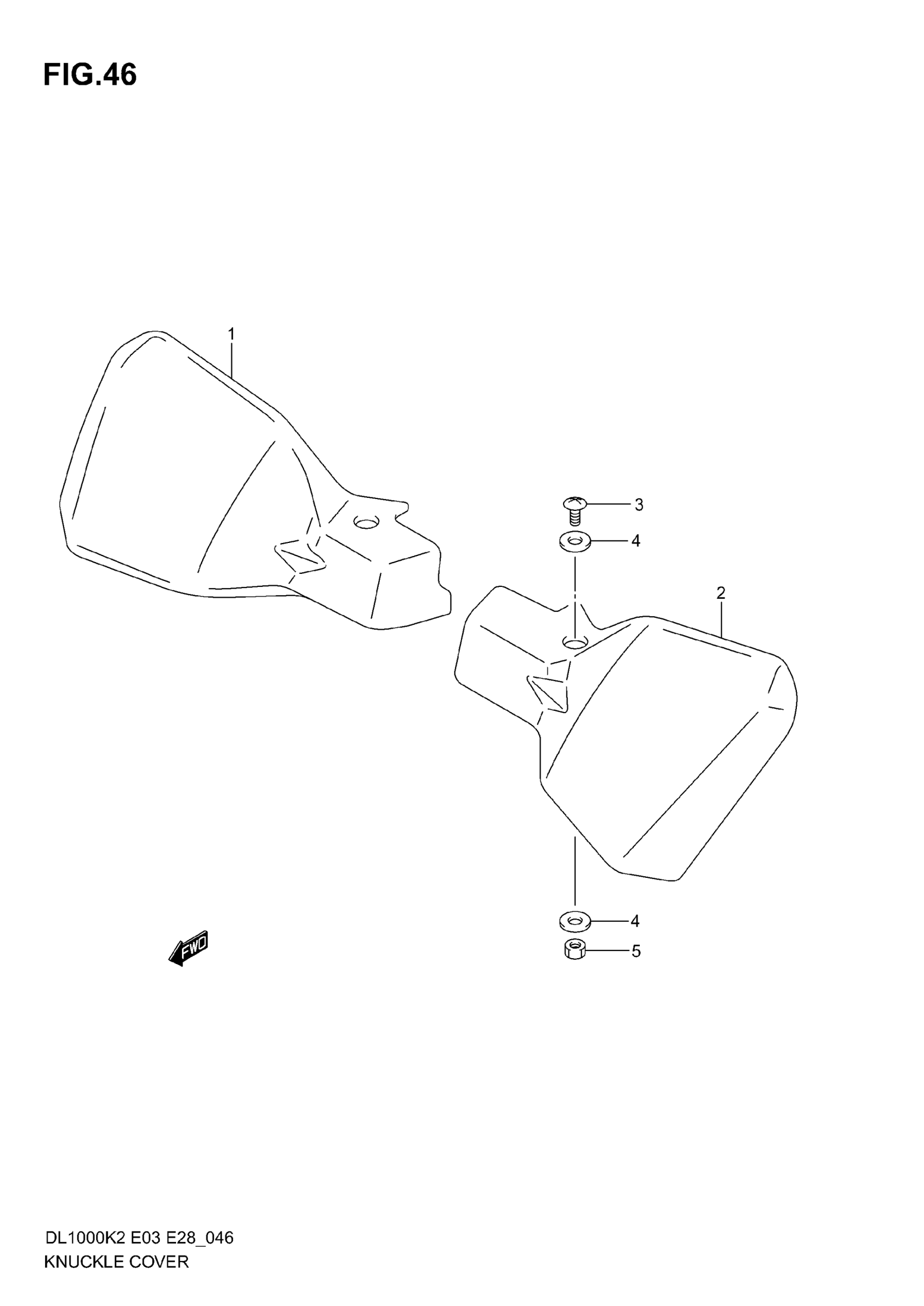

Suzuki DL1000 (2006) KNUCKLE COVER Diagram

#

Description

Price

1

COVER, KNUCKLE RH (BLACK) | MODEL K2/K3

57341-06G00-019

$56.83

1

COVER, KNUCKLE RH | MODEL K4/K5/K6 This part replaces 57341-27G00-291.

57341-27G02-291

$29.56

2

COVER, KNUCKLE LH (BLACK) | MODEL K2/K3

57541-06G00-019

$56.83

2

COVER, KNUCKLE LH (BLACK) | MODEL K4/K5/K6

57541-06G10-291

$29.56

3

SCREW | MODEL K2/K3/K4

02142-06107

Unavailable

3

SCREW | MODEL K5/K6

09125-06118

$3.27

4

.WASHER (6.5X16X1.6)

09160-06130

$1.97

5

.NUT This part replaces 08319-21068.

08319-2106A

$1.97
